CVQ60 Series

Catalog

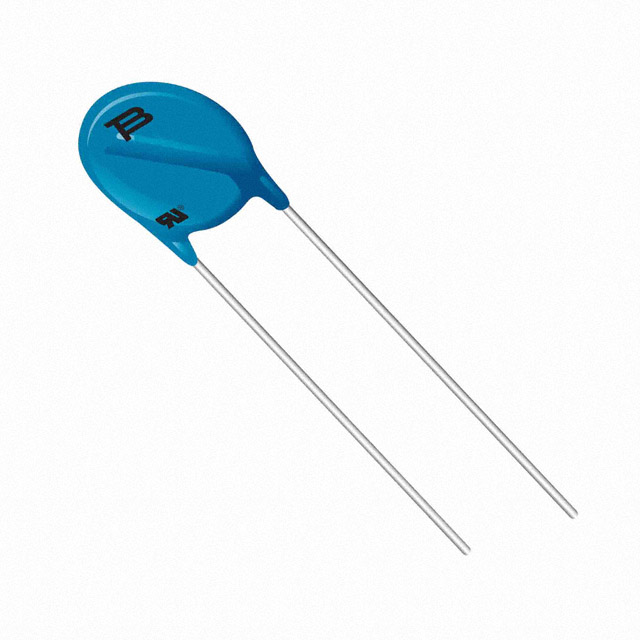

CVQ 60VRMS 14MM BULK L1

Part	Mounting Type	Maximum AC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Maximum DC Volts	Package / Case	Varistor Voltage (Max) [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Current - Surge	Varistor Voltage (Typ)	Energy	Package / Case
Bourns Inc. CVQ60K14BL1	Through Hole	60 V	2200 pF	90 V	85 V	Disc 14mm	110 V	1	85 C	-40 ¯C	6000 A	100 V	38 J
Bourns Inc. CVQ60K20BL1	Through Hole	60 V	4100 pF	90 V	85 V	Disc	110 V	1	85 C	-40 ¯C	12 kA	100 V	77 J	20 mm
Bourns Inc. CVQ60K7BL1	Through Hole	60 V	680 pF	90 V	85 V	Disc 7mm	110 V	1	85 C	-40 ¯C	1750 A	100 V	9 J
Bourns Inc. CVQ60K10BL1	Through Hole	60 V	1200 pF	90 V	85 V	Disc 10mm	110 V	1	85 C	-40 ¯C	3.5 kA	100 V	18 J
