G42KAC-P Series
Manufacturer: ODU
Beta
⌘K

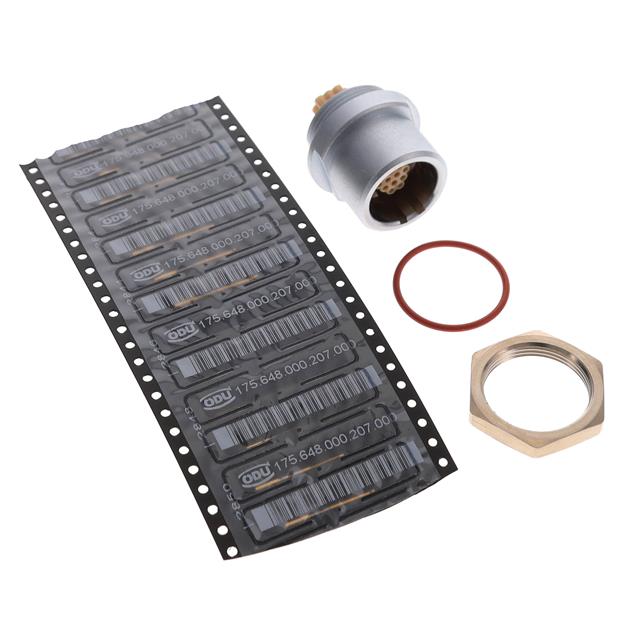

ODU MINI-SNAP RECEPT, STY 4, SZ
| Part | Ingress Protection | Shell Finish | Current Rating (Amps) | Features | Insert Material | Mounting Feature | Color | Mounting Type | Primary Material | Contact Finish - Mating | Contact Material | Connector Type | Shell Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shell Size - Insert [custom] | Shielding | Voltage Rating | Applications | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | Chrome over Nickel | 16 A | Ground | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Silver | Panel Mount | Metal | Gold | Brass | Receptacle Female Sockets | Brass | A | 120 °C | -40 C | Push-Pull | 2 | Shielded | 800 V | Industrial Medical Military Testing Equipment & Measurement | |||
IP68 - Dust Tight Waterproof | Chrome over Nickel | 7.5 A | Medical (IEC 60601 (2 MOOP/2 MOPP)) | Polyetheretherketone (PEEK) | Bulkhead - Rear Side Nut | Silver | Panel Mount | Metal | Gold | Brass | Receptacle Female Sockets | Brass | A | 120 °C | -40 C | Push-Pull | 2 | Shielded | 48 VDC | Industrial Medical Military Testing Equipment & Measurement | Crimp | 12 |
