REC3-4809 Series

Catalog

DC DC CONVERTER 9V 3W

Part	Mounting Type	Voltage - Input (Min) [Min]	Applications	Control Features	Power (Watts)	Efficiency	Voltage - Output 1	Features	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max) [Max]

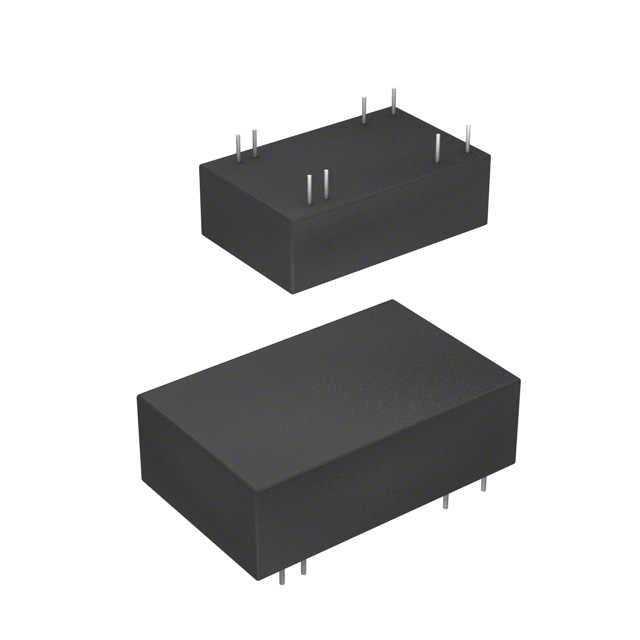

Recom Power REC3-4809SRW/H2/A/CTRL	Through Hole	36 V	ITE (Commercial)	Active Low Enable	3 W	83 %	9 V	Remote On/Off SCP	2000 V	85 °C	-40 C	24-DIP Module 8 Leads	Isolated Module	330 mA	72 V	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "
Recom Power REC3-4809DRWZ/H2/A/M/SMD/CTRL-R	Surface Mount	18 V	ITE (Commercial)	Active Low Enable	3 W	83 %	9 V	Remote On/Off SCP	2000 V	85 °C	-40 C	24-SMD Module 18 Leads	Isolated Module	165 mA	72 V	2	11.2 mm	19.9 mm	1.26 in	0.78 in	32 mm	0.44 in	-9 V	165 mA

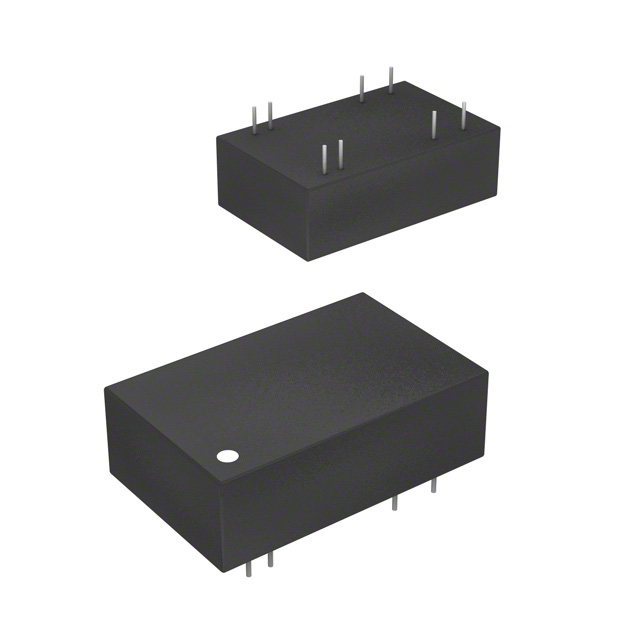

Recom Power REC3-4809DRW/H2/A/M	Through Hole	36 V	ITE (Commercial)		3 W	83 %	9 V	SCP	2000 V	85 °C	-40 C	24-DIP Module 8 Leads	Isolated Module	165 mA	72 V	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	-9 V	165 mA
