VSK-S15 Series

Manufacturer: CUI Inc.

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 48V 0.32A 15.36W 8-PIN

Part	Mounting Type	Power (Watts)	Number of Outputs	Type	Voltage - Isolation	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output 1	Voltage - Output 1	Features	Current - Output (Max) [Max]	Weight [custom]	Weight [custom]	Package / Case	Load Regulation	Standard Number	Line Regulation

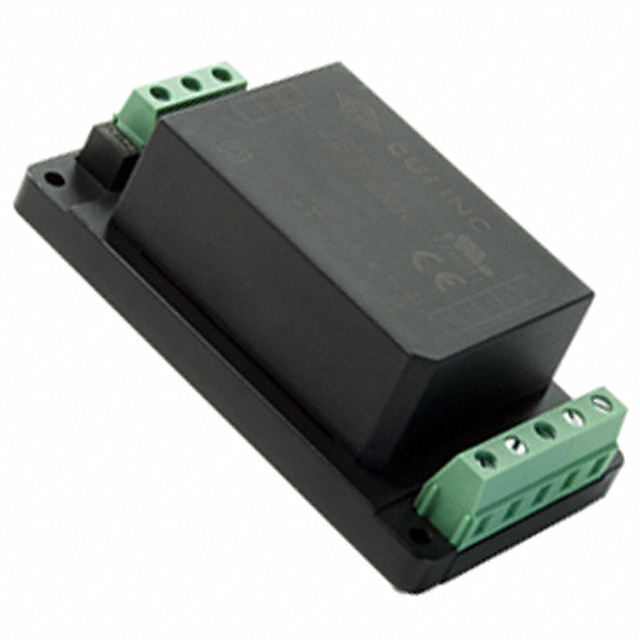

CUI Inc. VSK-S15-48U-T	Chassis Mount	15 W	1	Enclosed	3000 V	CE cURus	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	85 %	70 °C	-40 C	ITE (Commercial)	320 mA	48 V	Universal Input
CUI Inc. VSK-S15-12U-T	Chassis Mount	15 W	1	Enclosed	3000 V	CE cURus	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	80 %	70 °C	-40 C	ITE (Commercial)	1.25 A	12 V	Universal Input
CUI Inc. VSK-S15-15U-T	Chassis Mount	15 W	1	Enclosed	3000 V	CE cURus	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	80 %	70 °C	-40 C	ITE (Commercial)	1 A	15 V	Universal Input
CUI Inc. VSK-S15-9U-T	Chassis Mount	15 W	1	Enclosed	3000 V	CE cURus	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	78 %	70 °C	-40 C	ITE (Commercial)	1.6 A	9 V	Universal Input

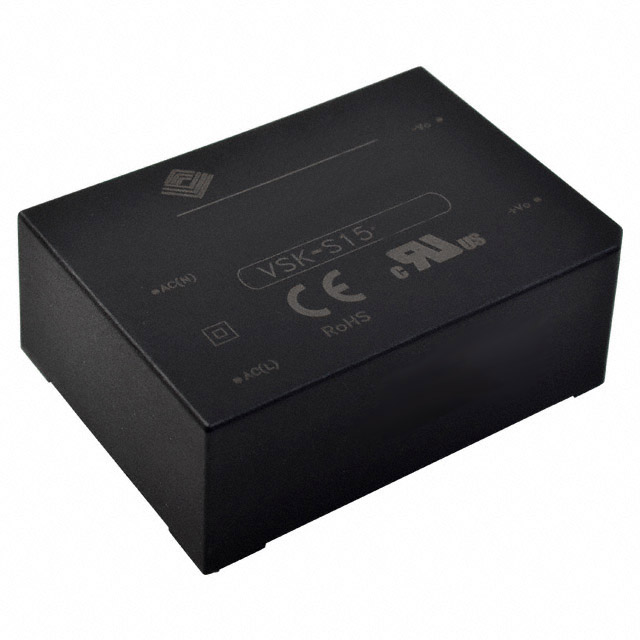

CUI Inc. VSK-S15-3R3U	Through Hole	15 W	1	Enclosed		CB Scheme EN IEC UL	0.91 in	1.77 in	45 mm	62 mm	2.44 "	23 mm	73 %			ITE (Commercial)		3.3 V	Universal Input	3 A	0.177 lb	80.29 g	4-DIP Module	±1%	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.5 %
CUI Inc. VSK-S15-5U-T	Chassis Mount	15 W	1	Enclosed	3000 V	CE cURus	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	76 %	70 °C	-40 C	ITE (Commercial)	2.8 A	5 V	Universal Input
CUI Inc. VSK-S15-15U	Through Hole	15 W	1	Enclosed		CB Scheme EN IEC UL	0.91 in	1.77 in	45 mm	62 mm	2.44 "	23 mm	80 %			ITE (Commercial)		15 V	Universal Input	1 A	0.177 lb	80.29 g	4-DIP Module	±1%	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.5 %
CUI Inc. VSK-S15-12U	Through Hole	15 W	1	Enclosed		CB Scheme EN IEC SIQ TUV UL	0.91 in	1.77 in	45 mm	62 mm	2.44 "	23 mm	80 %			ITE (Commercial)		12 V	Universal Input	1.25 A	0.177 lb	80.29 g	4-DIP Module	±1%	55024 55032 Class A 60950-1 61000-3-2 61000-3-3	0.5 %
CUI Inc. VSK-S15-3R3U-T	Chassis Mount	15 W	1	Enclosed	3000 V	CE cURus	1.26 "	2.17 "	54 mm	96.1 mm	3.78 in	32 mm	73 %	70 °C	-40 C	ITE (Commercial)	3 A	3.3 V	Universal Input
