FAN5609 Series
Manufacturer: ON Semiconductor
Beta
⌘K
IC LED DRV RGLTR PWM 14TSSOP
| Part | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [custom] | Package / Case [custom] | Package / Case | Frequency | Internal Switch(s) | Mounting Type | Applications | Voltage - Supply (Max) | Supplier Device Package | Current - Output / Channel [custom] | Dimming | Number of Outputs | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | Switched Capacitor (Charge Pump) | 85 °C | -40 °C | 0.173 " | 4.4 mm | 14-TSSOP | 1 MHz | Surface Mount | Backlight | 5.5 V | 14-TSSOP | 20 mA | PWM | 4 | DC DC Regulator | |

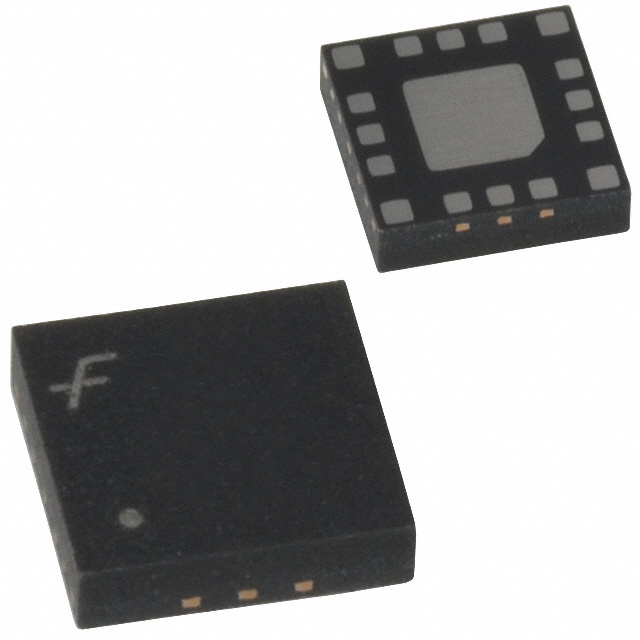

 ON Semiconductor | Switched Capacitor (Charge Pump) | 85 °C | -40 °C | 16-VQFN Exposed Pad | 1 MHz | Surface Mount | Backlight | 5.5 V | 16-MLP (4x4) | 20 mA | PWM | 4 | DC DC Regulator | |||
ON Semiconductor | Switched Capacitor (Charge Pump) | 85 °C | -40 °C | 16-VQFN Exposed Pad | 1 MHz | Surface Mount | Backlight | 5.5 V | 16-MLP (4x4) | 20 mA | PWM | 4 | DC DC Regulator |
