ECC-T Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

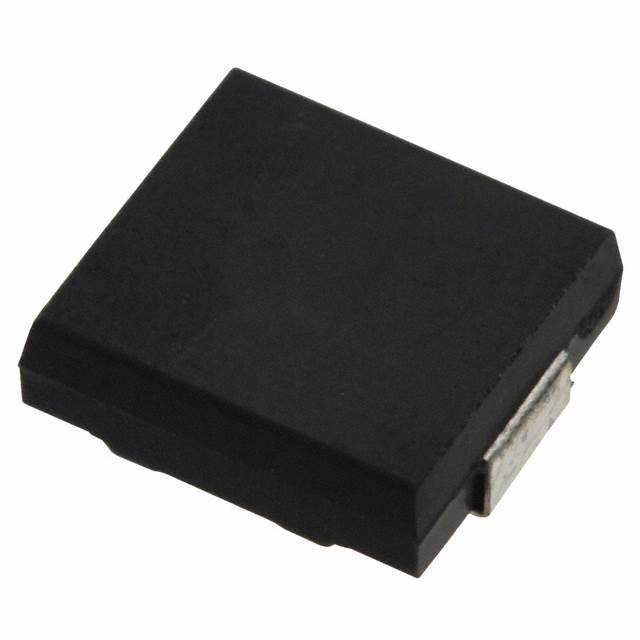

CAP CER 22PF 4KV SL/GP SMD

Part	Tolerance	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage - Rated	Voltage - Rated	Applications	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Features
Panasonic Industrial Automation Sales ECC-T3G220JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	22 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3G150JG2	5 %	SL/GP	5.7 mm	4.5 mm	0.177 "	0.224 in	-25 °C	105 ░C	15 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.3 mm	0.091 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3G150JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	15 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3G330JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	33 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3G470JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	47 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3G100DG2	0.5 pF	SL/GP	5.7 mm	4.5 mm	0.177 "	0.224 in	-25 °C	105 ░C	10 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.3 mm	0.091 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3F150JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	15 pF			General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3F180JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	18 pF			General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3F100JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	10 pF			General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
Panasonic Industrial Automation Sales ECC-T3G100JG	5 %	SL/GP	7.1 mm	6.3 mm	0.248 in	0.28 in	-25 °C	105 ░C	10 pF	4 kV	4000 V	General Purpose	MLCC Surface Mount	2.8 mm	0.11 in	Nonstandard SMD	High Voltage
