91601 Series

Catalog

CONN RCPT 14POS 0.1 GOLD SMD

Part	Fastening Type	Contact Type	Insulation Color	Termination	Mated Stacking Heights	Contact Shape	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Applications	Connector Type	Number of Positions Loaded	Number of Positions	Features
Amphenol ICC (FCI) 91601-314LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	14	30 Áin	0.76 Ám	Gold	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All
Amphenol ICC (FCI) 91601-423LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	23	78.7 µin	2 µm		0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All

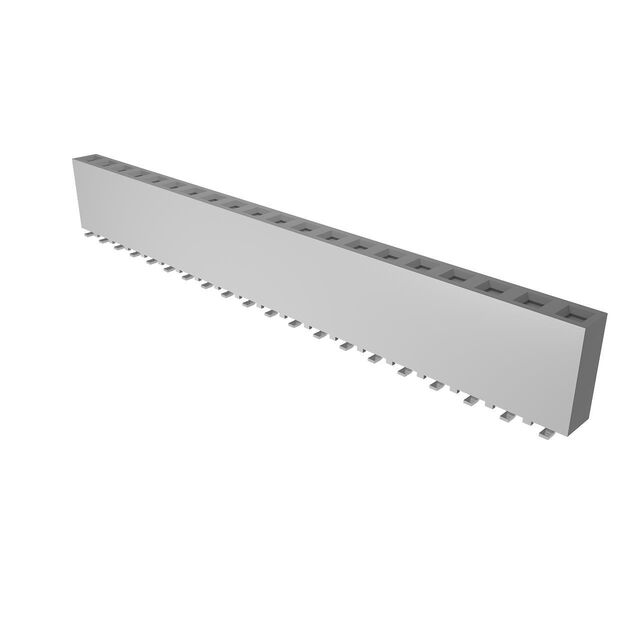

Amphenol ICC (FCI) 91601-420LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	20	78.7 µin	2 µm		0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All
Amphenol ICC (FCI) 91601-416LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square		78.7 µin	2 µm		0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All	16
Amphenol ICC (FCI) 91601-325LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square		30 Áin	0.76 Ám	Gold	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All
Amphenol ICC (FCI) 91601-311LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	11	30 Áin	0.76 Ám	Gold	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All
Amphenol ICC (FCI) 91601-419LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	19	78.7 µin	2 µm		0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All

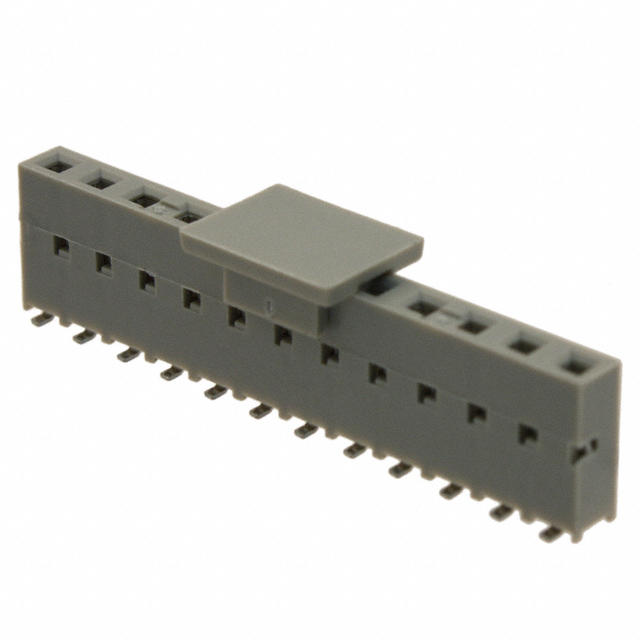

Amphenol ICC (FCI) 91601-412ALF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	12	78.7 µin	2 µm		0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All		Pick and Place
Amphenol ICC (FCI) 91601-421LF	Push-Pull	Female Socket	Gray	Solder	10.81 mm	Square	21	78.7 µin	2 µm		0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All
Amphenol ICC (FCI) 91601-310GLF	Push-Pull	Female Socket	Black	Solder	10.81 mm	Square	10	30 Áin	0.76 Ám	Gold	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Tin	2 çm	78.7 çin	6.99 mm	0.275 in	UL94 V-0	1	Automotive General Purpose Industrial Telecommunications	Receptacle Bottom or Top Entry	All		Pick and Place
