796683 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLK 18P SIDE ENTRY 5MM PCB

Part	Torque - Screw	Torque - Screw	Screw Material - Plating	Contact Material - Plating	Clamp Material - Plating	Screw Thread	Current	Number of Levels	Wire Termination	Pitch	Pitch	Voltage	Positions Per Level	Features	Wire Gauge [Max]	Wire Gauge [Min]	Color	Mounting Type	Mating Orientation	Positions Per Level [custom]
TE Connectivity AMP Connectors 1-796683-8	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	18	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board
TE Connectivity AMP Connectors 2-796683-1	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	21	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board
TE Connectivity AMP Connectors 2-796683-3	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	23	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board

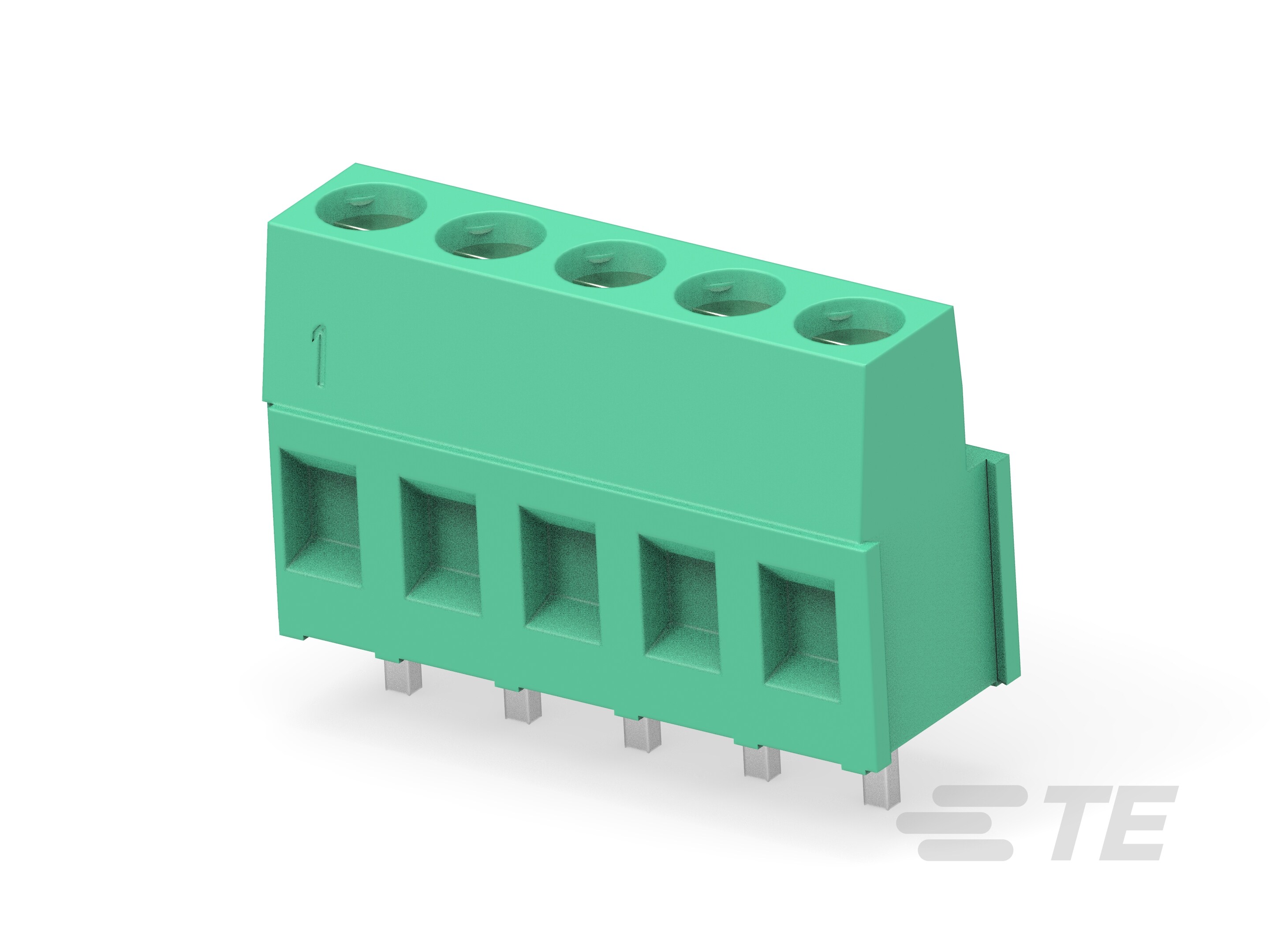

TE Connectivity AMP Connectors 796683-5	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	5	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board
TE Connectivity AMP Connectors 3-796683-1	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	12	Interlocking (Side) Positions Stamped	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board
TE Connectivity AMP Connectors 796683-9	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	9	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board
TE Connectivity AMP Connectors 1-796683-2	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	12	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board

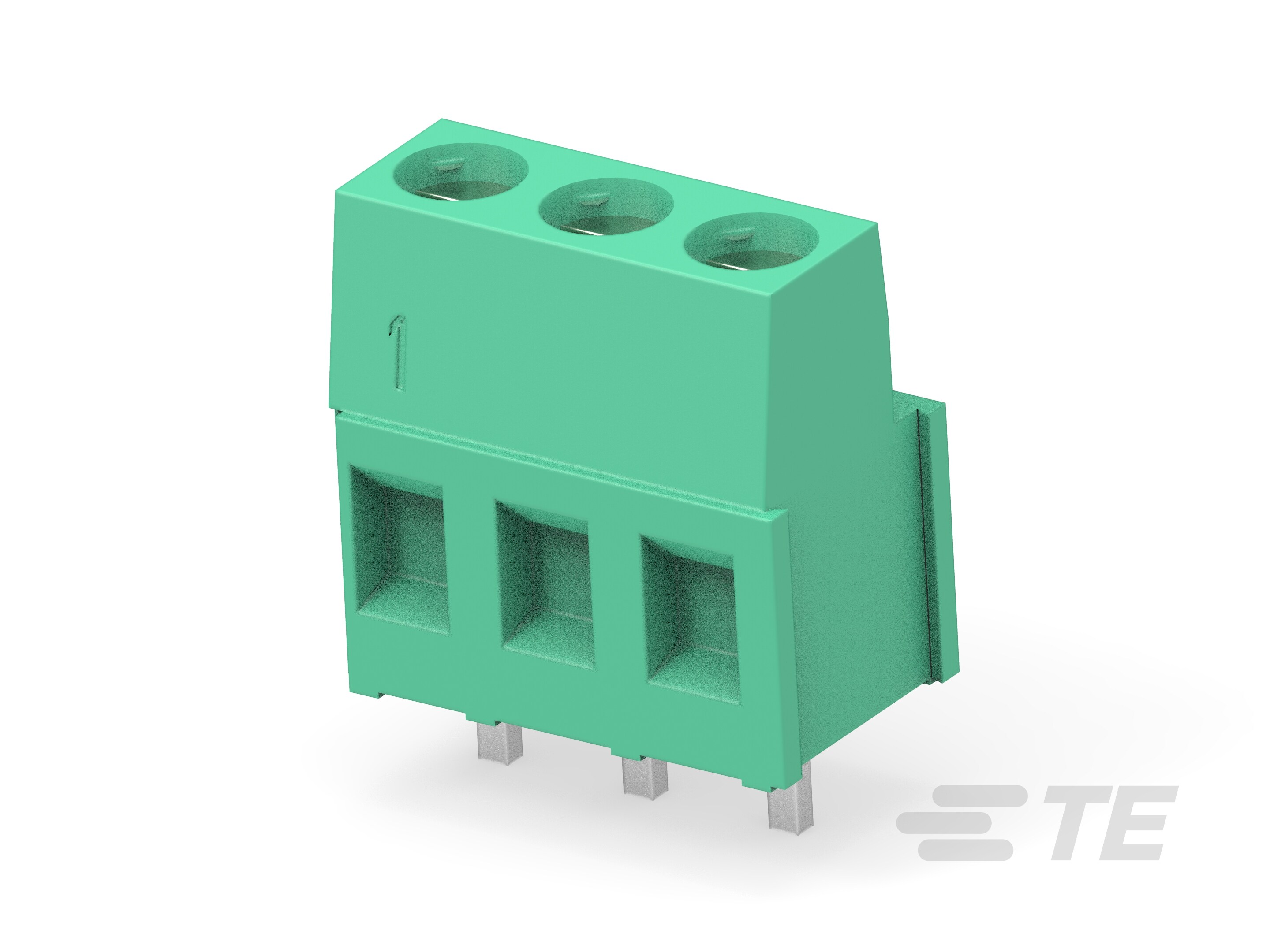

TE Connectivity AMP Connectors 796683-3	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	3	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board

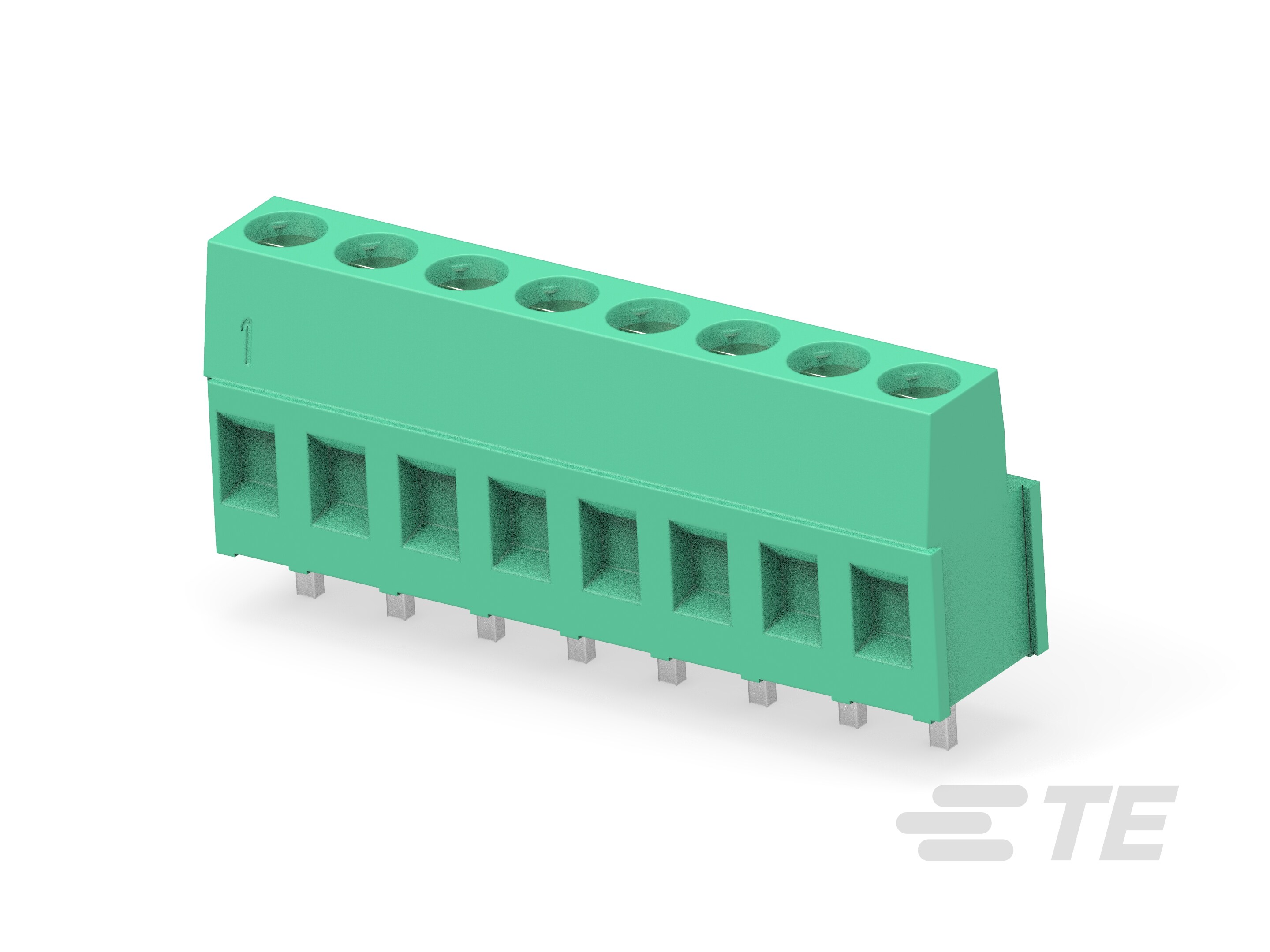

TE Connectivity AMP Connectors 796683-8	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC	8	Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board

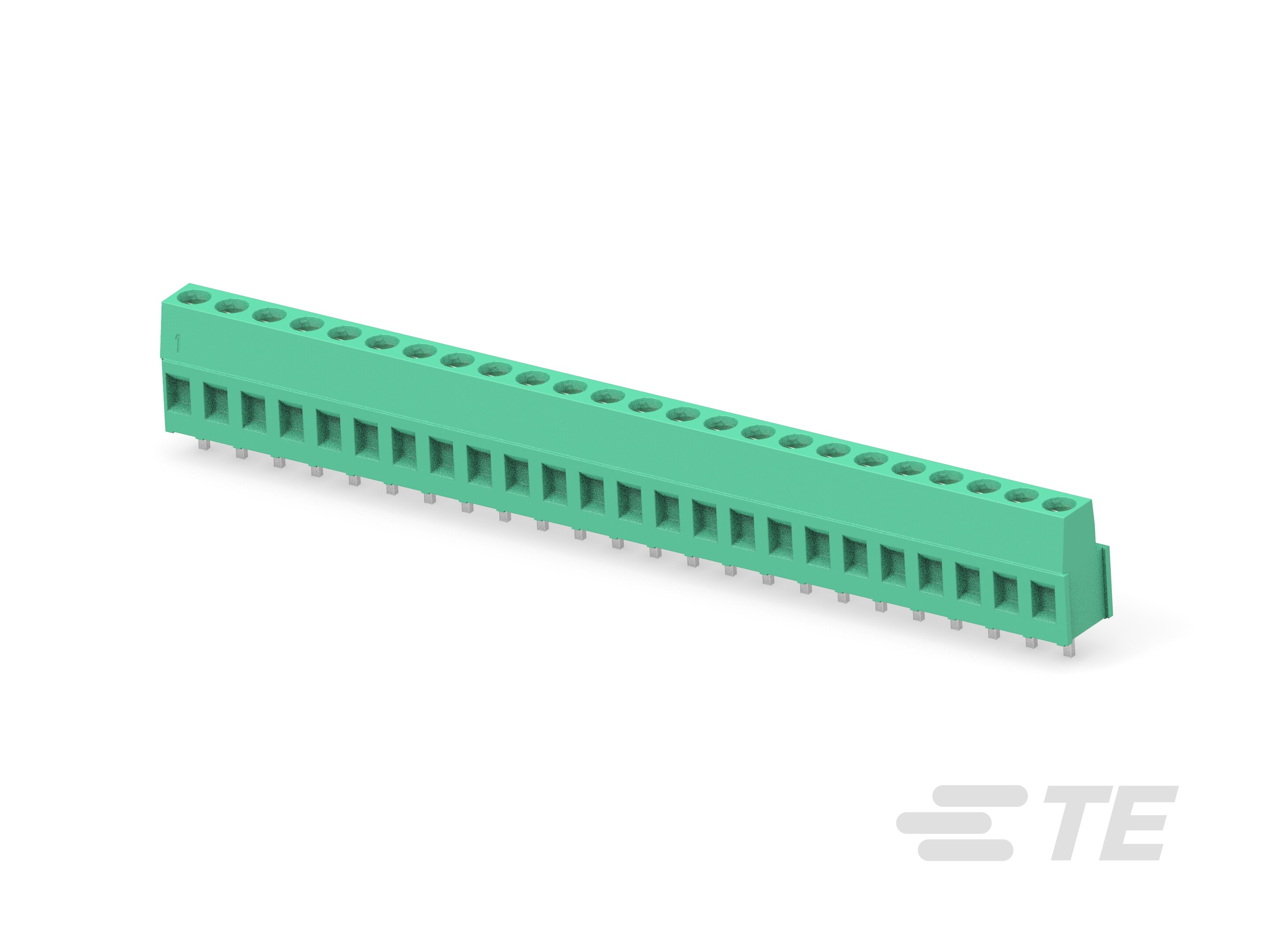

TE Connectivity AMP Connectors 2-796683-4	7 Lb-In	0.79 Nm	Brass - Nickel Plated	Brass - Tin Plated	Brass - Nickel Plated	M3	17.5 A	1	Screw - Rising Cage Clamp	0.197 in	5 mm	300 VDC		Interlocking (Side)	30 AWG	12 AWG	Green	Through Hole	Horizontal with Board	24
