LCD8 Series

Catalog

CONN TERM RECT TONG 8 AWG #1/4

Part	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID	Diameter - Ring ID	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Wire Gauge	Stud/Tab Size	Terminal Style	Insulation	Color	Terminal Type	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Width - Outer Edges	Length - Overall

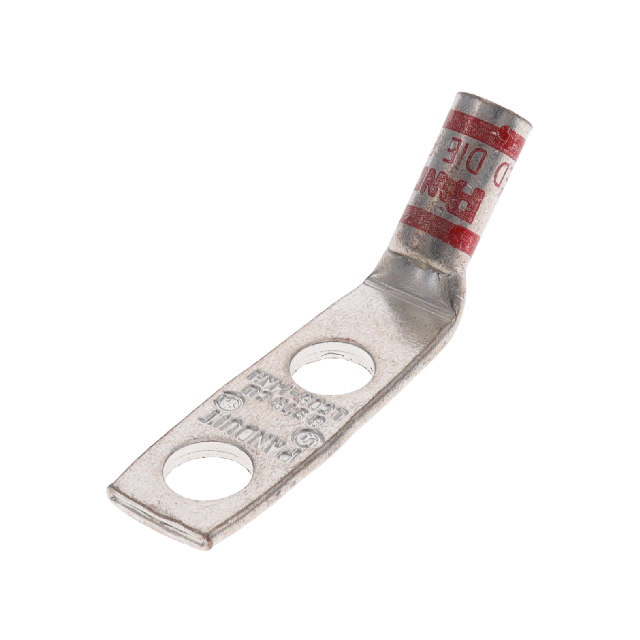

Panduit Corp LCD8-14AH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	0.27 in	6.86 mm	Free Hanging (In-Line)	12.19 mm	0.48 "	Barrel Crimp	8 AWG	0.25 Stud	Two Stud Holes	Non-Insulated	Red	Rectangular Tongue	1.78 mm	0.07 in
Panduit Corp LCD8-14BH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	0.27 in	6.86 mm	Free Hanging (In-Line)	12.19 mm	0.48 "	Barrel Crimp	8 AWG	0.25 Stud	Two Stud Holes	Non-Insulated	Red	Rectangular Tongue	1.78 mm	0.07 in

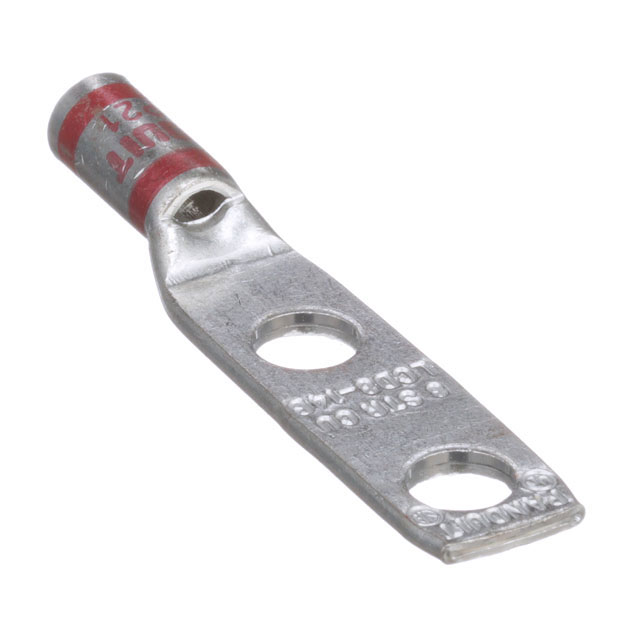

Panduit Corp LCD8-14B-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	0.27 in	6.86 mm	Free Hanging (In-Line)	12.19 mm	0.48 "	Barrel Crimp	8 AWG	0.25 Stud	Two Stud Holes	Non-Insulated	Red	Rectangular Tongue	1.78 mm	0.07 in	2.09 in	53.09 mm
Panduit Corp LCD8-10AH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in			Free Hanging (In-Line)		0.41 in	Barrel Crimp	8 AWG	10 Stud	Two Stud Holes	Non-Insulated	Red	Rectangular Tongue	2.03 mm	0.08 "			5.08 mm	0.2 in	10.41 mm

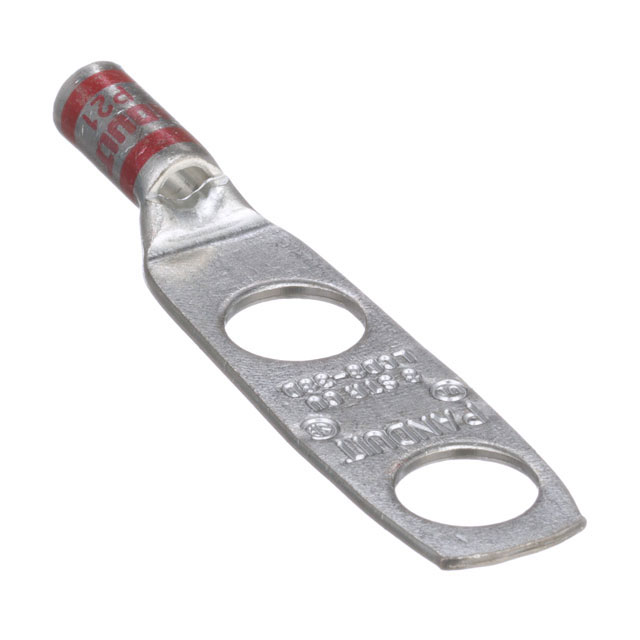

Panduit Corp LCD8-38D-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in			Free Hanging (In-Line)		0.6 "	Barrel Crimp	8 AWG	0.375 Stud	Two Stud Holes	Non-Insulated	Red	Rectangular Tongue	1.27 mm	0.05 "	2.56 in		10.41 mm	0.41 "	15.24 mm	65.02 mm
