333-025 Series
Manufacturer: EDAC Inc.
Catalog

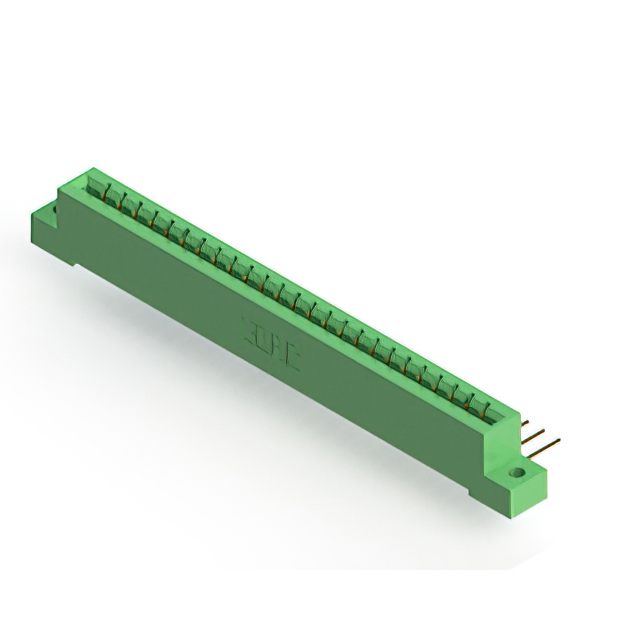

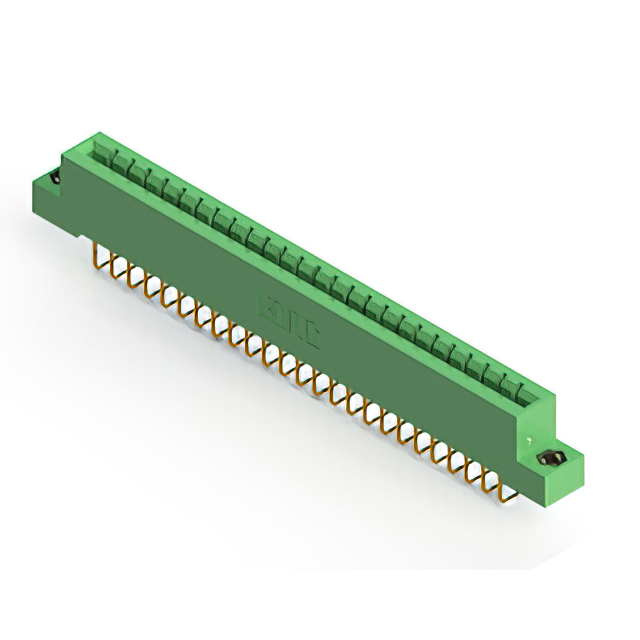

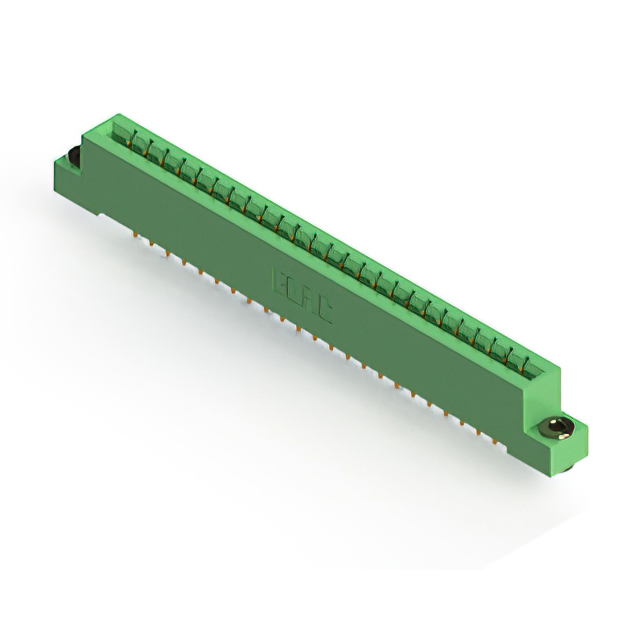

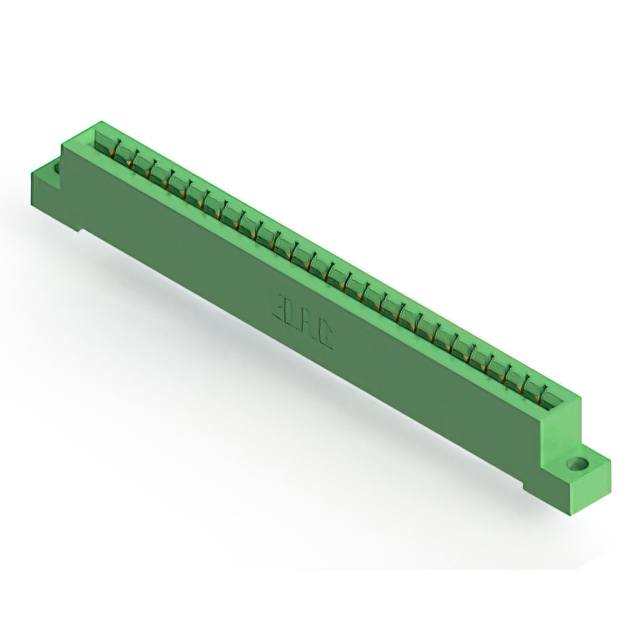

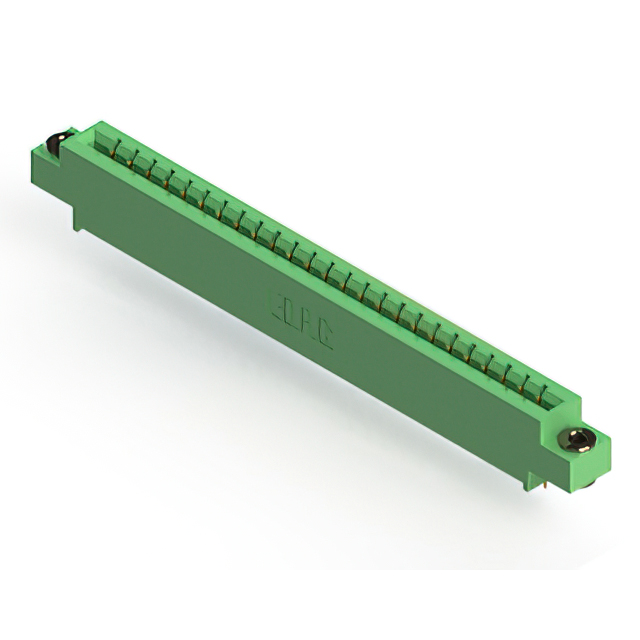

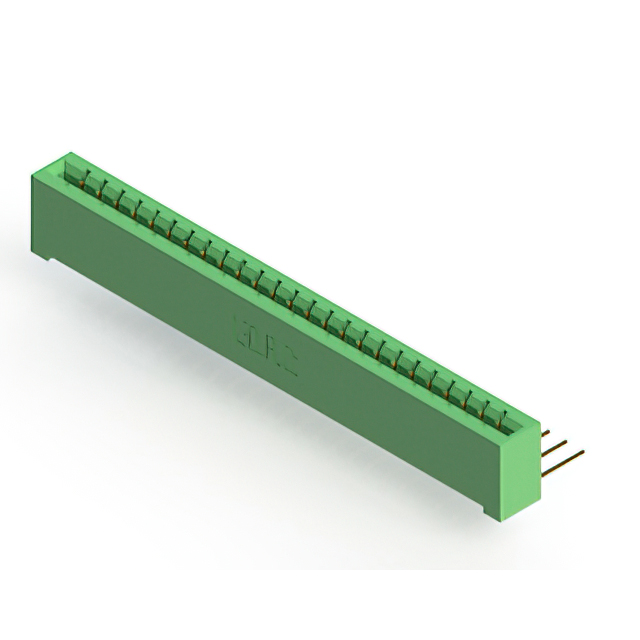

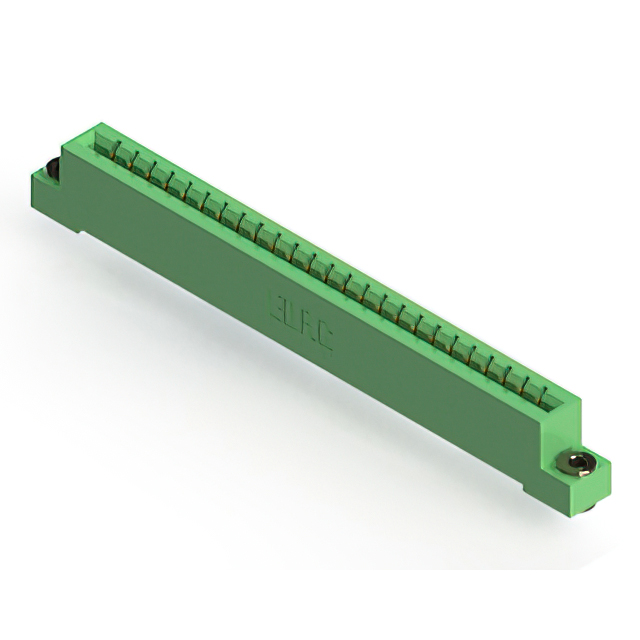

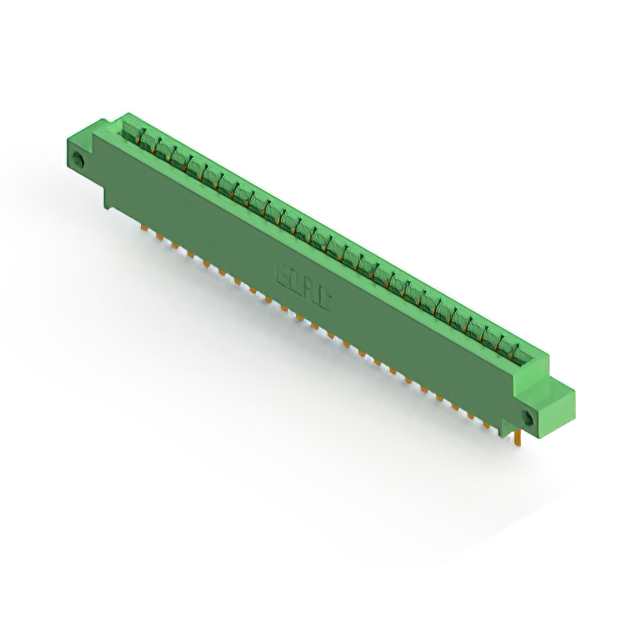

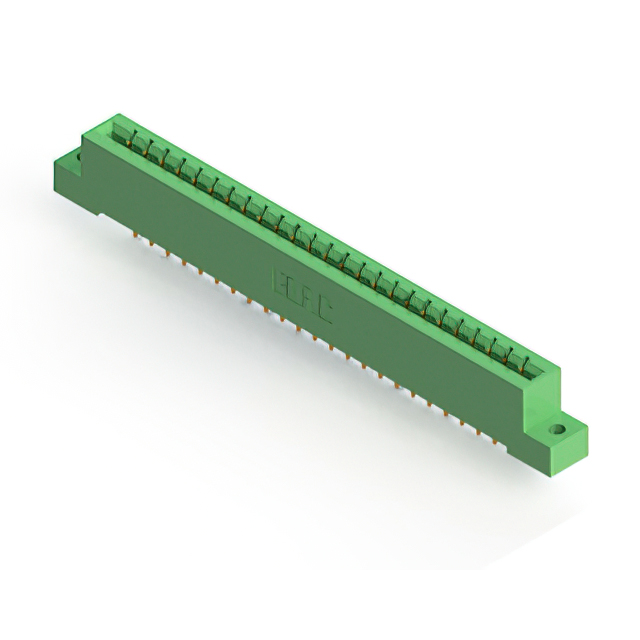

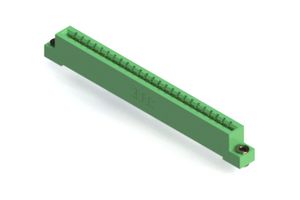

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 25 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Finish | Termination Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Card Type | Color | Read Out | Contact Material | Pitch [x] | Pitch [x] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole Right Angle | 25 | 10 Áin | 0.25 Ám | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | 3.25 mm | 0.128 in | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole Right Angle | 25 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Wire Wrap | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | 1 | Through Hole Right Angle | 25 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Single Edge | Green | Single | Copper Alloy | 0.156 in | 3.96 mm | Female | -40 °C | 105 ░C | 1 | Solder |
