SIT9346 Series

Manufacturer: SiTime

Catalog

MEMS OSC XO 156.000000 MHZ LVPEC

Part	Current - Supply (Disable) (Max) [Max]	Frequency	Supplier Device Package	Base Resonator	Output	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Supply (Max) [Max]	Mounting Type	Frequency Stability	Voltage - Supply	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Function	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Supplier Device Package [x]	Supplier Device Package [y]
SiTime SIT9346AE-1C2A25E156.000000	58 mA	156 MHz	6-PQFV (5x3.2)	MEMS	LVPECL	-40 C	105 ░C	XO (Standard)	89 mA	Surface Mount	25 ppm	2.5 V	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	6-SMD No Lead Exposed Pad	0.035 in	0.9 mm
SiTime SIT9346AC-1BFA33N25.000000		25 MHz	6-PQFD	MEMS	LVPECL	-20 ░C	70 °C	XO (Standard)	89 mA	Surface Mount	10 ppm	3.3 V		0.098 in	3.2 mm	0.126 "		6-SMD No Lead	0.035 in	0.9 mm	2.5 mm	3.2	2.5
SiTime SIT9346AI-4C1A33E100.000000	58 mA	100 MHz	6-PQFV (5x3.2)	MEMS	HCSL	-40 C	85 °C	XO (Standard)	89 mA	Surface Mount	20 ppm	3.3 V	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	6-SMD No Lead Exposed Pad	0.035 in	0.9 mm
SiTime SIT9346AE-2C3A33E200.000000	58 mA	200 MHz	6-PQFV (5x3.2)	MEMS	LVDS	-40 C	105 ░C	XO (Standard)	79 mA	Surface Mount	50 ppm	3.3 V	3.2 mm	0.126 in	5 mm	0.197 in	Enable/Disable	6-SMD No Lead Exposed Pad	0.035 in	0.9 mm
SiTime SIT9346AI-2B2A33E200.000000	58 mA	200 MHz	6-PQFD	MEMS	LVDS	-40 C	85 °C	XO (Standard)	79 mA	Surface Mount	25 ppm	3.3 V		0.098 in	3.2 mm	0.126 "	Enable/Disable	6-SMD No Lead	0.035 in	0.9 mm	2.5 mm	3.2	2.5

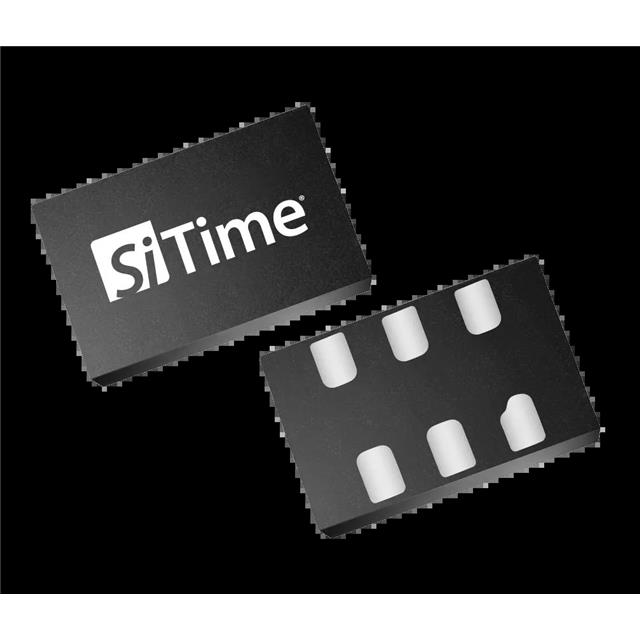

SiTime SIT9346AI-2EFA33E100.000000	58 mA	100 MHz	6-PQFV (7x5)	MEMS	LVDS	-40 C	85 °C	XO (Standard)	79 mA	Surface Mount	10 ppm	3.3 V		0.197 "	7 mm	0.276 "	Enable/Disable	6-SMD No Lead Exposed Pad	0.035 in	0.9 mm	5 mm
SiTime SIT9346AI-2BFA33E40.000000	58 mA	40 MHz	6-PQFD	MEMS	LVDS	-40 C	85 °C	XO (Standard)	79 mA	Surface Mount	10 ppm	3.3 V		0.098 in	3.2 mm	0.126 "	Enable/Disable	6-SMD No Lead	0.035 in	0.9 mm	2.5 mm	3.2	2.5

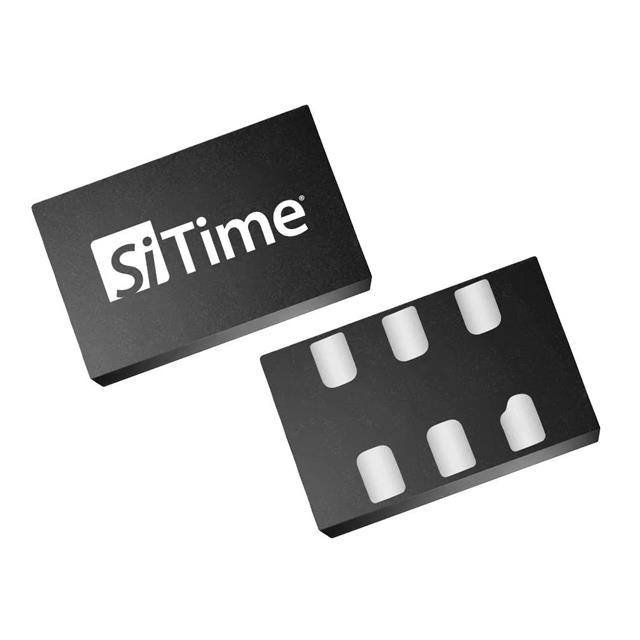

SiTime SIT9346AI-2E1A25E125.000000	58 mA	125 MHz	6-PQFV (7x5)	MEMS	LVDS	-40 C	85 °C	XO (Standard)	79 mA	Surface Mount	20 ppm	2.5 V		0.197 "	7 mm	0.276 "	Enable/Disable	6-SMD No Lead Exposed Pad	0.035 in	0.9 mm	5 mm
SiTime SIT9346AI-2B1A33E40.000000	58 mA	40 MHz	6-PQFD	MEMS	LVDS	-40 C	85 °C	XO (Standard)	79 mA	Surface Mount	20 ppm	3.3 V		0.098 in	3.2 mm	0.126 "	Enable/Disable	6-SMD No Lead	0.035 in	0.9 mm	2.5 mm	3.2	2.5
SiTime SIT9346AI-2B2A33E50.000000	58 mA	50 MHz	6-PQFD	MEMS	LVDS	-40 C	85 °C	XO (Standard)	79 mA	Surface Mount	25 ppm	3.3 V		0.098 in	3.2 mm	0.126 "	Enable/Disable	6-SMD No Lead	0.035 in	0.9 mm	2.5 mm	3.2	2.5
