NCP3063 Series

Boost / Buck / Inverting Converter, Switching Regulator, 1.5 A

Catalog

Boost / Buck / Inverting Converter, Switching Regulator, 1.5 A

Part	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Current - Output	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Function	Voltage - Output (Min/Fixed)	Topology	Supplier Device Package	Output Type	Output Configuration	Voltage - Output (Max) [Max]	Board Type	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Supplied Contents	Regulator Topology	Main Purpose	Outputs and Type	Outputs and Type	Frequency - Switching	Voltage - Input
ON Semiconductor NCP3063BDR2G	1	-40 °C	125 ¯C	3 V	1.5 A	Surface Mount	8-SOIC	3.9 mm	0.154 in	Step-Down Step-Up	1.25 V	Boost Buck	8-SOIC	Adjustable	Positive or Negative	40 V

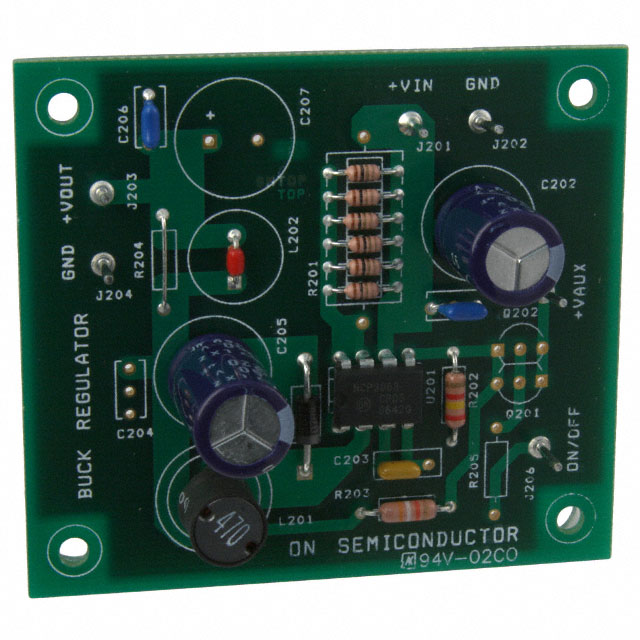

ON Semiconductor NCP3063DIPBCKEVB					800 mA												Fully Populated	3.3 V	7 V	15 V	NCP3063	Board(s)	Buck	DC/DC Step Down	Non-Isolated	1	250 kHz
ON Semiconductor NCP3063SMINVGEVB					100 mA												Fully Populated	-12 V			NCP3063	Board(s)	Inverting	DC/DC Negative Inverter	Non-Isolated	1		5 VDC

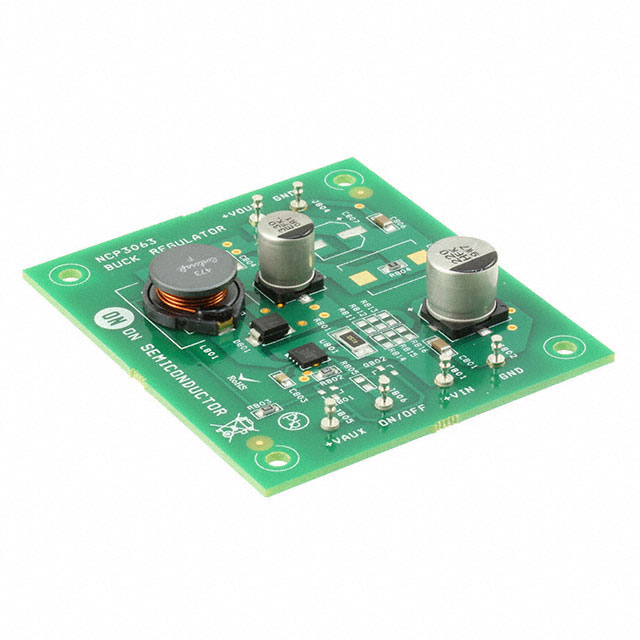

ON Semiconductor NCP3063DFBCKGEVB					800 mA												Fully Populated	3.3 V			NCP3063	Board(s)	Buck	DC/DC Step Down	Non-Isolated	1		12 VDC

Catalog

Boost / Buck / Inverting Converter, Switching Regulator, 1.5 A

Key Features

• Operation up to 40 V Input

• Frequency operation up to 150 KHz

• Internal thermal Shutdown with hysteresis

• Cycle-by-Cycle Current Limiting

• Excel Based Design Tool

Description

This Buck Boost Inverting Switching Regulator consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. New features include an internal thermal shutdown protection and cycle-by-cycle current limit. This series was specifically designed to be incorporated in step-down (buck) and step-up (boost) and voltage-inverting applications with a minimum number of external components. The NCV3063 is available for automotive applications. See NCP3064 for product with ENABLE feature.
