L77SDB25 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Contact Form | Color | Dielectric Material | Connector Type | Material Flammability Rating | Mounting Type | Contact Finish | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Features | Number of Rows [custom] | Flange Feature | Current Rating (Amps) | Contact Type | Number of Positions | Connector Style | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | Board Side (M3) | 3 A | Signal | 25 | D-Sub | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | |

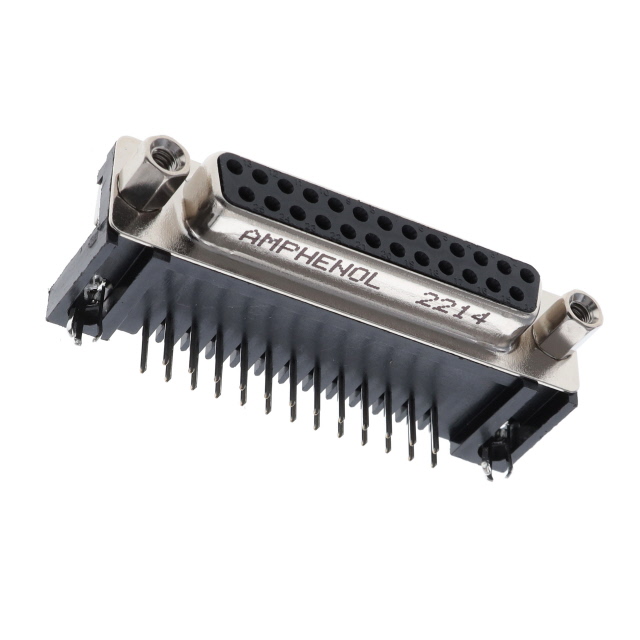

 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | 4-40 Mating Side Female Screwlock | 3 A | Signal | 25 | D-Sub | 10.3 mm | 0.406 in | 30 Áin | 0.76 Ám | |

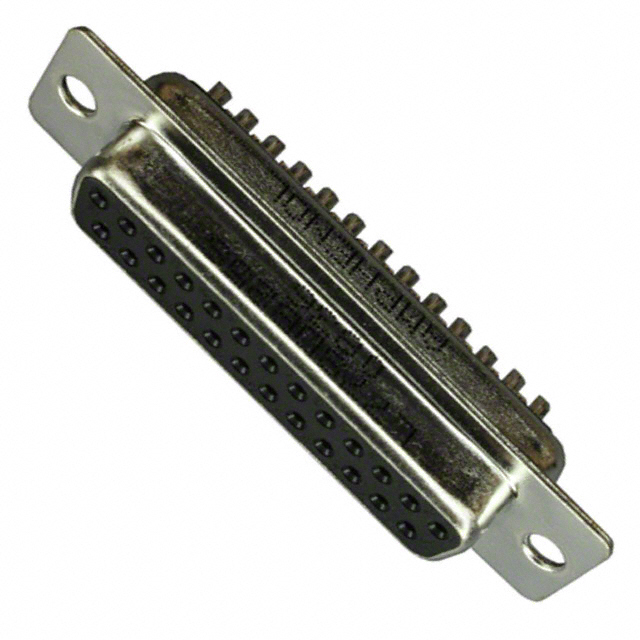

 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Free Hanging (In-Line) | Gold | B DB | 3 | 2 | Housing/Shell (Unthreaded) | 3 A | Signal | 25 | D-Sub | Flash | ||||||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | Board Side (M3) | 3 A | Signal | 25 | D-Sub | 8.08 mm | 0.318 " | Flash | ||

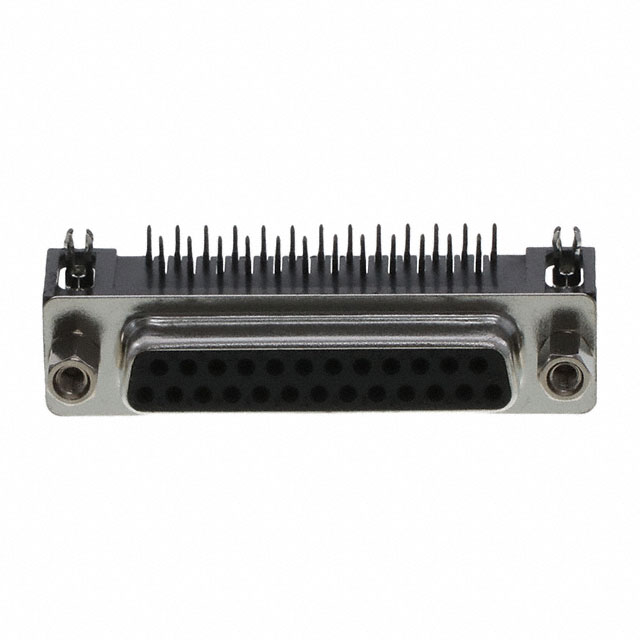

 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | 4-40 Mating Side Female Screwlock | 3 A | Signal | 25 | D-Sub | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | 4-40 Mating Side Female Screwlock | 3 A | Signal | 25 | D-Sub | 8.08 mm | 0.318 " | Flash | ||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | Mating Side Female Screwlock (M3) | 3 A | Signal | 25 | D-Sub | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | |
Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Free Hanging (In-Line) | Gold | B DB | 3 | 2 | Mating Side Female Screwlock (M3) | 3 A | Signal | 25 | D-Sub | 30 Áin | 0.76 Ám | |||||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | 4-40 Mating Side Female Screwlock | 3 A | Signal | 25 | D-Sub | 10.3 mm | 0.406 in | Flash | ||
 Amphenol ICC (Commercial Products) | -55 C | 125 °C | Phosphor Bronze | 250 V | Stamped | Black | Thermoplastic Glass Filled | Receptacle Female Sockets | UL94 V-0 | Right Angle Through Hole | Gold | Solder | B DB | 3 | Board Lock | 2 | Board Side (4-40) | 3 A | Signal | 25 | D-Sub | 8.08 mm | 0.318 " | Flash |
