MB2461A Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 3A 125V
| Part | Mechanical Life | Electrical Life | Features | Mounting Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Type | Circuit | Switch Function | Actuator Type | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

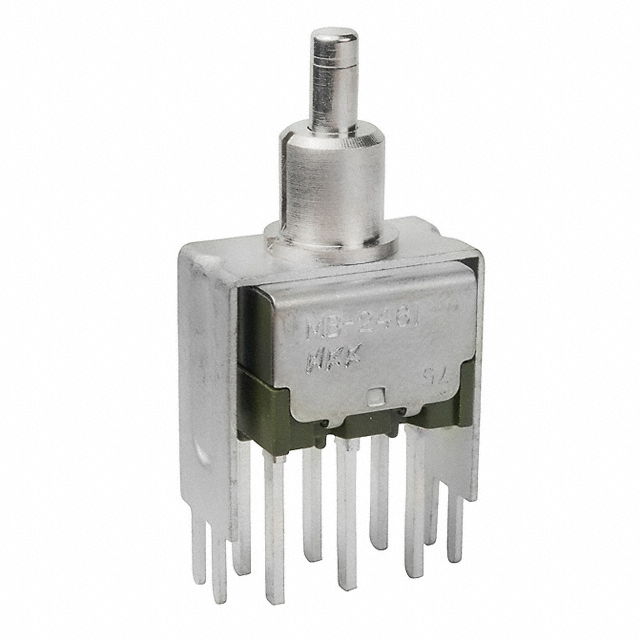

 NKK Switches | 200000 Cycles | 25000 Steps | Epoxy Sealed Terminals | Through Hole | No Marking | 85 °C | -30 ░C | 125 V | PC Pin | 3 A | Standard | DPDT | On-Mom | Plunger for Cap | ||

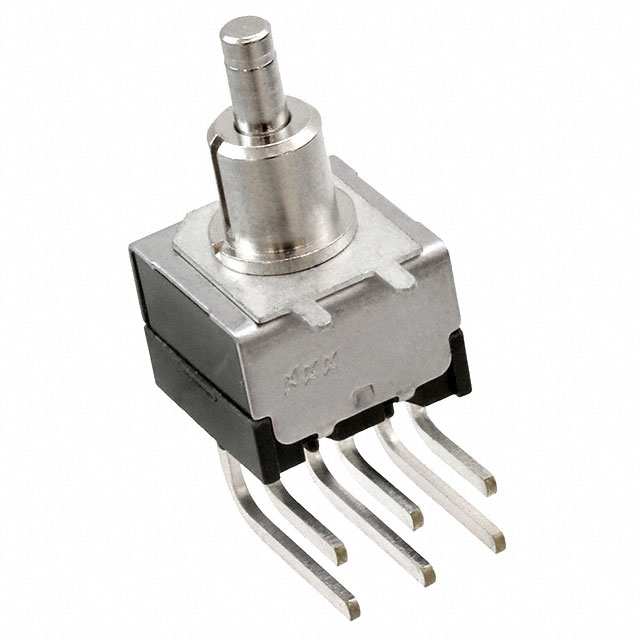

 NKK Switches | 200000 Cycles | 25000 Steps | Epoxy Sealed Terminals | Right Angle Through Hole | No Marking | 85 °C | -30 ░C | 125 V | PC Pin | 3 A | Standard | DPDT | On-Mom | Plunger for Cap | ||
 NKK Switches | 200000 Cycles | 25000 Steps | Epoxy Sealed Terminals | Panel Mount Rear | No Marking | 85 °C | -30 ░C | 125 V | Solder Lug | 3 A | Standard | DPDT | On-Mom | Button Round | 6.5 mm | Black |
NKK Switches | 200000 Cycles | 25000 Steps | Epoxy Sealed Terminals | Through Hole | No Marking | 85 °C | -30 ░C | 125 V | PC Pin | 3 A | Standard | DPDT | On-Mom | Button Round | Black |
