119738 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

Part	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows [custom]	Read Out	Number of Positions	Card Type	Contact Finish	Gender	Pitch	Pitch	Contact Material	Mounting Type	Color
TE Connectivity AMP Connectors 2-119738-2	Polybutylene Terephthalate (PBT) Glass Filled	0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	72	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black
TE Connectivity AMP Connectors 5-119738-6	Polybutylene Terephthalate (PBT) Glass Filled	0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	40	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black
TE Connectivity AMP Connectors 2-119738-6	Polybutylene Terephthalate (PBT) Glass Filled	0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	80	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black

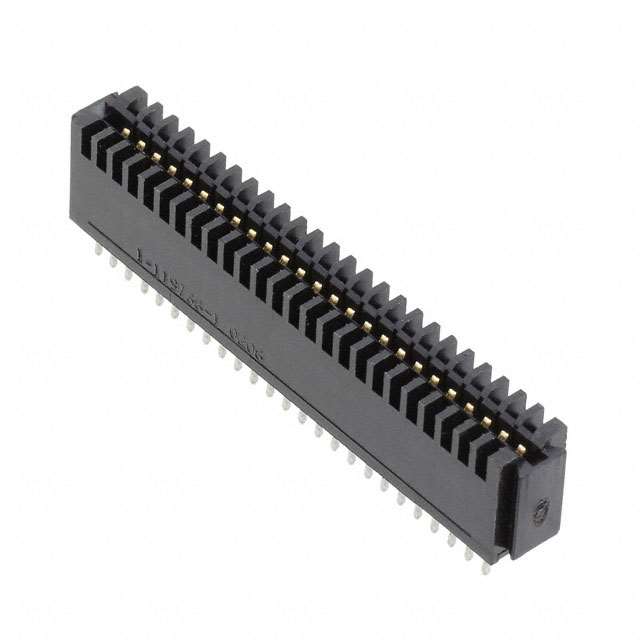

TE Connectivity AMP Connectors 1-119738-1		0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	50	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black

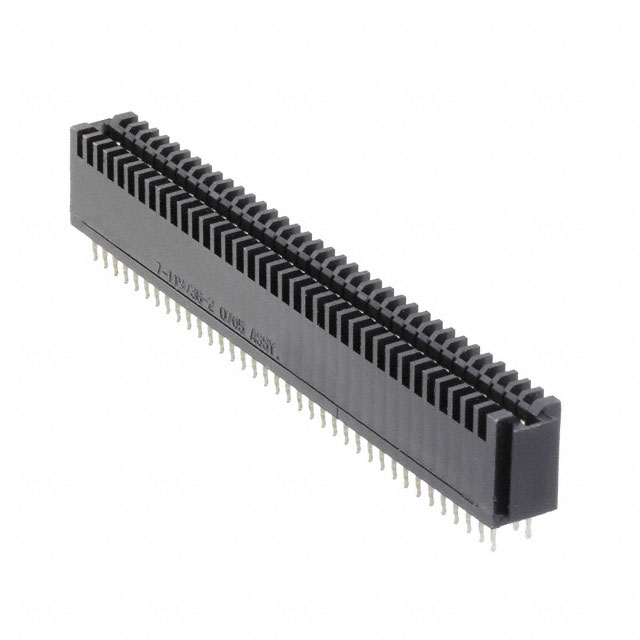

TE Connectivity AMP Connectors 7-119738-2	Polybutylene Terephthalate (PBT) Glass Filled	0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	72	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black
TE Connectivity AMP Connectors 9-119738-6	Polybutylene Terephthalate (PBT) Glass Filled	0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	120	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black
TE Connectivity AMP Connectors 119738-8	Polybutylene Terephthalate (PBT) Glass Filled	0.071 in	1.37 mm	1.8 mm	0.054 in	30 Áin	0.76 Ám	Press-Fit	2	Dual	44	Non Specified - Dual Edge	Gold	Female	0.1 "	2.54 mm	Phosphor Bronze	Through Hole	Black
