Hex Inverters, Open Drains
Hex Inverters, Open Drains
| Part | Supplier Device Package | Max Propagation Delay @ V, Max CL | Package / Case [x] | Package / Case [y] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output High, Low | Current - Output High, Low | Input Logic Level - Low [Min] | Input Logic Level - Low [Max] | Number of Inputs | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Current - Quiescent (Max) [Max] | Input Logic Level - High [Max] | Input Logic Level - High [Min] | Features | Logic Type | Number of Circuits | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

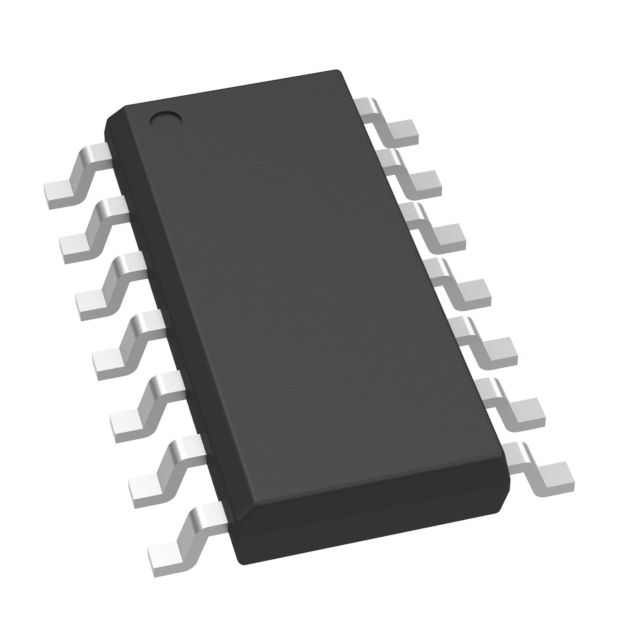

 Diodes Inc | 14-SO | 7.5 ns | 0.154 in | 3.9 mm | 14-SOIC | -40 °C | 125 °C | 8 mA | - | 0.5 V | 1.65 V | 1 | 5.5 V | 2 V | Surface Mount | 20 µA | 3.85 V | 1.5 V | Open Drain | Inverter | 6 | ||
 Diodes Inc | 14-TSSOP | 7.5 ns | 14-TSSOP | -40 °C | 125 °C | 8 mA | - | 0.5 V | 1.65 V | 1 | 5.5 V | 2 V | Surface Mount | 20 µA | 3.85 V | 1.5 V | Open Drain | Inverter | 6 | 0.173 " | 4.4 mm |
