LCM-S01602 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LCD MOD 32DIG 16X2 TRANSFLECTIVE

Part	Character Size [y]	Character Size [z]	Display Format [x]	Display Format [y]	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Display Type	Backlight	Number of Characters	Display Mode	Dot Size [y]	Dot Size [x]	Character Format [x]	Character Format [y]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Background Color	Dot Size [custom]	Dot Size [custom]
Lumex Opto/Components Inc. LCM-S01602DSF/AYVM	2.96 mm	5.56 mm	16	2	16 mm	66 mm	12.7 mm	36 mm	80 mm	STN - Super-Twisted Nematic	LED	32	Transflective	0.66 mm	0.56 mm	5 Dots	8 Dots
Lumex Opto/Components Inc. LCM-S01602DTF/B	2.96 mm	5.56 mm	16	2	16 mm	66 mm	12.7 mm	44 mm	84 mm	TN - Twisted Nematic		32	Transflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel

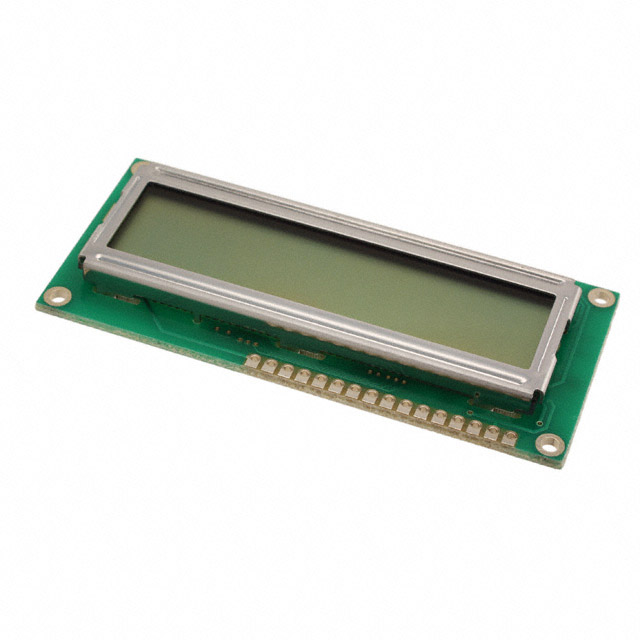

Lumex Opto/Components Inc. LCM-S01602DSR/A	2.96 mm	5.56 mm	16	2	16 mm	66 mm	8.8 mm	36 mm	80 mm	STN - Super-Twisted Nematic		32	Reflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DTR/D	4.84 mm	9.63 mm	16	2	24 mm	99 mm	8.8 mm	44 mm	122 mm	TN - Twisted Nematic		32	Reflective			5 Dots	8 Dots	50 °C	0 °C	Parallel		1.16 mm	1.16 mm

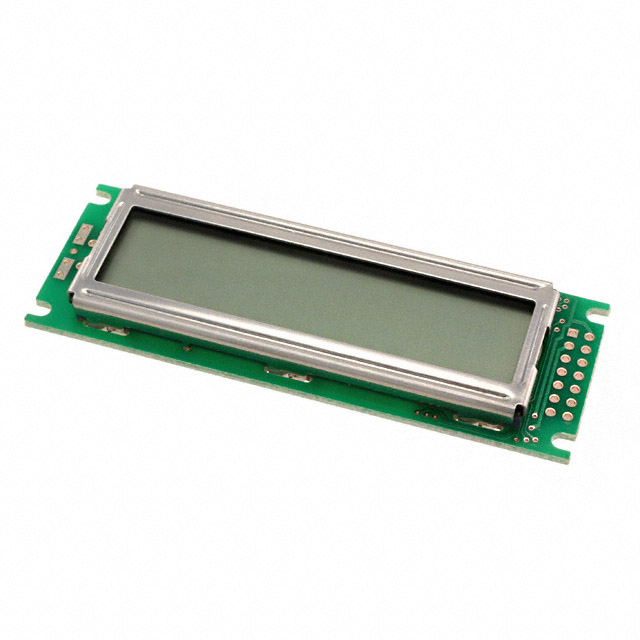

Lumex Opto/Components Inc. LCM-S01602DTR/C	2.96 mm	5.56 mm	16	2	16 mm	66 mm	8.9 mm	30 mm	85 mm	TN - Twisted Nematic		32	Reflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DSR/I	2.96 mm	5.56 mm	16	2	16 mm	66 mm	8.9 mm	44 mm	84 mm	STN - Super-Twisted Nematic		32	Reflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel
Lumex Opto/Components Inc. LCM-S01602DTR/E	2.96 mm	5.56 mm	16	2	16 mm	65 mm	8.8 mm	44 mm	84 mm	TN - Twisted Nematic		32	Reflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel

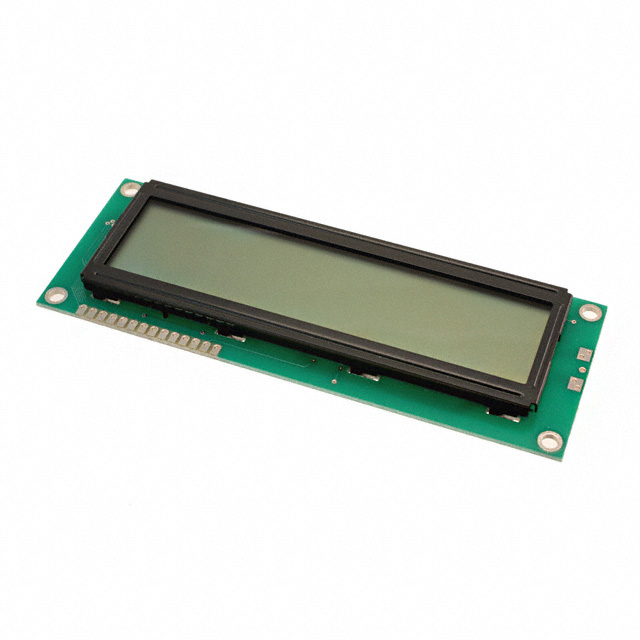

Lumex Opto/Components Inc. LCM-S01602DSR/D	4.84 mm	9.63 mm	16	2	24 mm	99 mm	8.8 mm	44 mm	122 mm	STN - Super-Twisted Nematic		32	Reflective			5 Dots	8 Dots	50 °C	0 °C	Parallel	Green	1.16 mm	1.16 mm

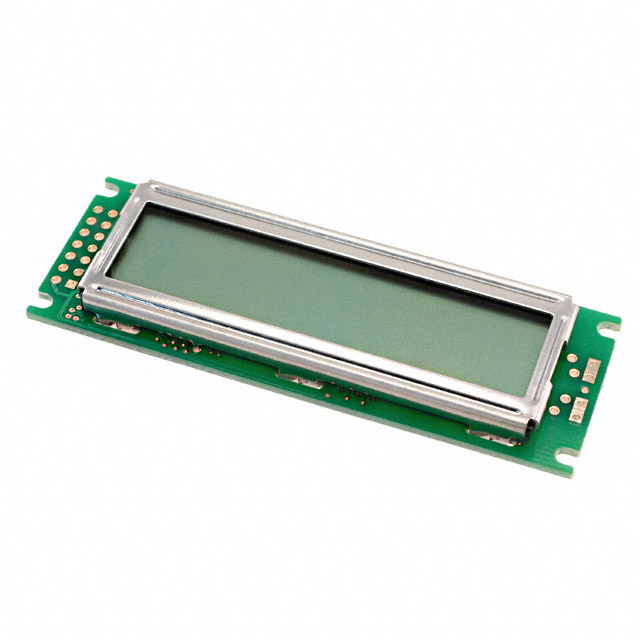

Lumex Opto/Components Inc. LCM-S01602DSR/C	2.96 mm	5.56 mm	16	2	16 mm	66 mm	8.9 mm	30 mm	85 mm	STN - Super-Twisted Nematic		32	Reflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel	Green
Lumex Opto/Components Inc. LCM-S01602DSF/E	2.96 mm	5.56 mm	16	2	16 mm	65 mm	12.7 mm	44 mm	84 mm	STN - Super-Twisted Nematic		32	Transflective	0.66 mm	0.56 mm	5 Dots	8 Dots	50 °C	0 °C	Parallel
