87761 Series

Catalog

CABLE 2COND 22AWG RED SHLD

Part	Shield Material	Shield Coverage	Features	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Cable Type	Number of Conductors	Conductor Material	Usage	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]
Belden Inc. 87761 002500	Aluminum	100 %	Drain Wire	UL Style CMP	0.014 in	0.356 mm	Foil	22 AWG	30 AWG	7	Fluorinated Ethylene-Propylene (FEP)	300 VDC	152.4 m	500 ft	Plenum Polyvinylidene Fluoride (PVDF)	2.95 mm	0.116 in	Multi-Conductor	2	Copper Tinned	Audio Control Instrumentation	Red	150 °C	-70 °C
Belden Inc. 87761 0025000	Aluminum	100 %	Drain Wire	UL Style CMP	0.014 in	0.356 mm	Foil	22 AWG	30 AWG	7	Fluorinated Ethylene-Propylene (FEP)	300 VDC			Plenum Polyvinylidene Fluoride (PVDF)	2.95 mm	0.116 in	Multi-Conductor	2	Copper Tinned	Audio Control Instrumentation	Red	150 °C	-70 °C

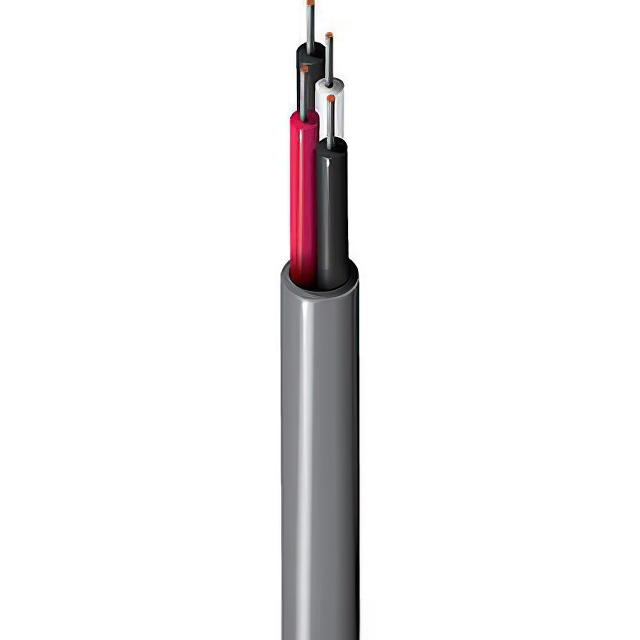

Belden Inc. 87761 0021000	Aluminum	100 %	Drain Wire	UL Style CMP	0.014 in	0.356 mm	Foil	22 AWG	30 AWG	7	Fluorinated Ethylene-Propylene (FEP)	300 VDC	304.8 m	1000 ft	Plenum Polyvinylidene Fluoride (PVDF)	2.95 mm	0.116 in	Multi-Conductor	2	Copper Tinned	Audio Control Instrumentation	Red	150 °C	-70 °C
