A700 Series
Manufacturer: KEMET
Beta
⌘K

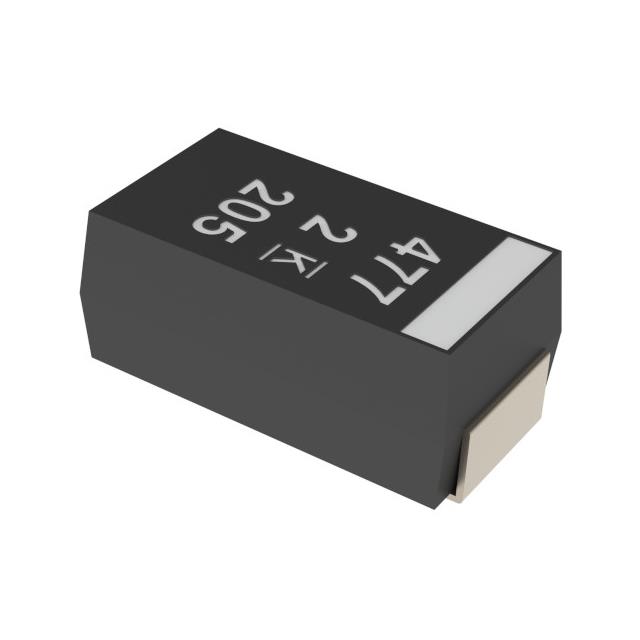

ALUMINUM ORGANIC POLYMER CAPACITORS 6.3V 220UF 20% 7343-20 -55 /+125C 3002 HRS ESR=12MOHMS
| Part | Mounting Type | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Type | Ripple Current @ High Frequency | Tolerance | Applications | Voltage - Rated | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Surface Mount | 3000 Hrs | 12 mOhms | 220 µF | 0.079 in | 2 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 4.74 A | 20 % | General Purpose | 6.3 VDC | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | |||
Surface Mount | 15 mOhm | 150 µF | 4.3 mm | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 20 % | General Purpose | 6.3 VDC | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.169 in | ||||||||
 KEMET | Surface Mount | 2000 Hrs | 10 mOhm | 180 µF | 4.3 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 4.7 A | 20 % | General Purpose | 4 V | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.169 in | |||
 KEMET | Surface Mount | 2000 Hrs | 56 µF | 0.079 in | 2 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 20 % | General Purpose | 6.3 VDC | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | |||||
 KEMET | Surface Mount | 2000 Hrs | 10 mOhm | 470 µF | 4.3 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 4.7 A | 20 % | General Purpose | 2 VDC | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 0.169 in | |||
 KEMET | Surface Mount | 2000 Hrs | 45 mOhm | 8.2 µF | 0.079 in | 2 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 2.4 A | 20 % | General Purpose | 16 V | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | |||
KEMET | Surface Mount | 2000 Hrs | 9 mOhms | 220 µF | -55 C | 105 ░C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 5.9 A | 20 % | General Purpose | 2.5 V | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 1.2 mm | 0.047 " | |||
KEMET | Surface Mount | 2000 Hrs | 25 mOhm | 0.082 mF | 0.079 in | 2 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 20 % | General Purpose | 2.5 V | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | ||||
KEMET | Surface Mount | 2000 Hrs | 30 mOhms | 22 µF | 0.079 in | 2 mm | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 3000 mA | 20 % | General Purpose | 12.5 V | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | |||
 KEMET | Surface Mount | 2000 Hrs | 5 mOhm | 470 µF | -55 C | 125 °C | 7.3 mm | 4.3 mm | 0.169 " | 0.287 " | Polymer | 7.1 A | 20 % | General Purpose | 2 VDC | 2917 (7343 Metric) | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 3.1 mm | 0.122 in |
