L Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP PLUG W/SOCKETS, R/
| Part | Primary Material | Shell Material | Applications | Connector Type | Contact Finish - Mating | Insert Material | Features | Voltage Rating | Color | Current Rating (Amps) | Orientation | Fastening Type | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Shell Finish | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Shell Size - Insert [custom] | Shielding | Mounting Type | Contact Material | Number of Positions | Shell Size - Insert | Orientation | Mounting Feature | Termination | Cable Opening [Max] | Cable Opening [Min] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Gold | Polyetheretherketone (PEEK) | Backshell Strain Relief | 400 V | Silver | 7.5 A | 0 | Push-Pull | 4 mm 5.2 mm | 0.205 in | 0.157 in | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | 0 | Unshielded | Free Hanging (In-Line) Right Angle | Brass | |||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Gold | Polyetheretherketone (PEEK) | Backshell | 500 V | Silver | 7.5 A | 0 | Push-Pull | 0.126 in 3.2 mm | 0.079 in 2 mm | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | Unshielded | Free Hanging (In-Line) | Brass | 4 | 1 | |||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Gold | Polyetheretherketone (PEEK) | Backshell | Silver | 7.5 A | Push-Pull | 0.087 " 2.2 mm | 0.059 " 1.5 mm | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | Shielded | Free Hanging (In-Line) | Brass | 4 | 1 | A | ||||||||||

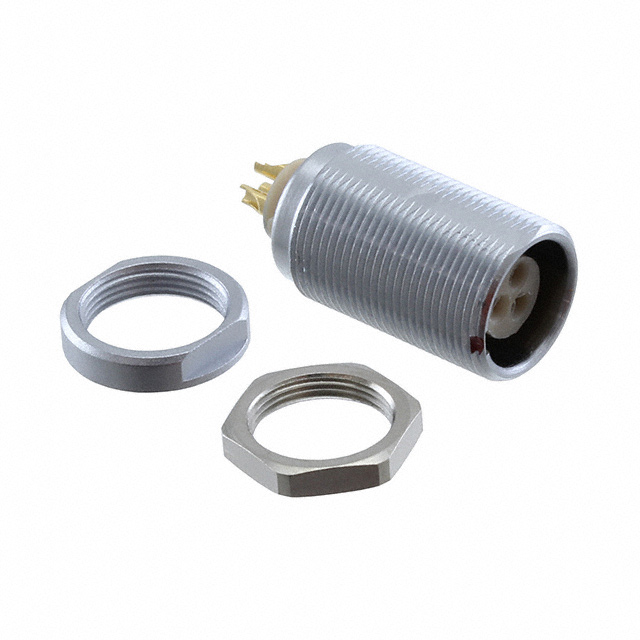

Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polyetheretherketone (PEEK) | Ground | Silver | 4 A | Push-Pull | Chrome over Nickel | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 0 | Shielded | Panel Mount | Brass | 10 | A | Bulkhead - Front Side Nut | ||||||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Gold | Polyetheretherketone (PEEK) | Backshell Strain Relief | 300 VDC | Silver | 7.5 A | 0 | Push-Pull | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | 0 | Unshielded | Free Hanging (In-Line) | Brass | 4 | Crimp | ||||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polyetheretherketone (PEEK) | Ground | 300 VDC | Silver | 4 A | Push-Pull | Chrome over Nickel | IP68 - Dust Tight Waterproof | 120 °C | -40 C | 0 | Unshielded | Panel Mount | Brass | 7 | A | Bulkhead - Rear Side Nut | |||||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polyetheretherketone (PEEK) | Backshell | Silver | 4 A | Push-Pull | 0.118 " | 0.098 in | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | Shielded | Free Hanging (In-Line) | Brass | 4 | A | 3 mm | 2.5 mm | 00 | ||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Gold | Polyetheretherketone (PEEK) | Backshell | 200 V | Silver | 7.5 A | 0 | Push-Pull | 4 mm 5.2 mm | 0.205 in | 0.157 in | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | 0 | Unshielded | Free Hanging (In-Line) Right Angle | Brass | 5 | ||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Receptacle Female Sockets | Gold | Polyetheretherketone (PEEK) | Backshell Strain Relief | Silver | 7.5 A | Push-Pull | 0.126 in 3.2 mm | 0.079 in 2 mm | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | 0 | Shielded | Free Hanging (In-Line) | Brass | 2 | A | ||||||||||
Metal | Brass | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Gold | Polyetheretherketone (PEEK) | Backshell | 300 VDC | Silver | 7.5 A | 0 | Push-Pull | 4 mm 5.2 mm | 0.205 in | 0.157 in | Chrome over Nickel | IP50 - Dust Protected | 120 °C | -40 C | Brass Chrome over Nickel | 0 | Unshielded | Free Hanging (In-Line) Right Angle | Brass | 4 |
