3408 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

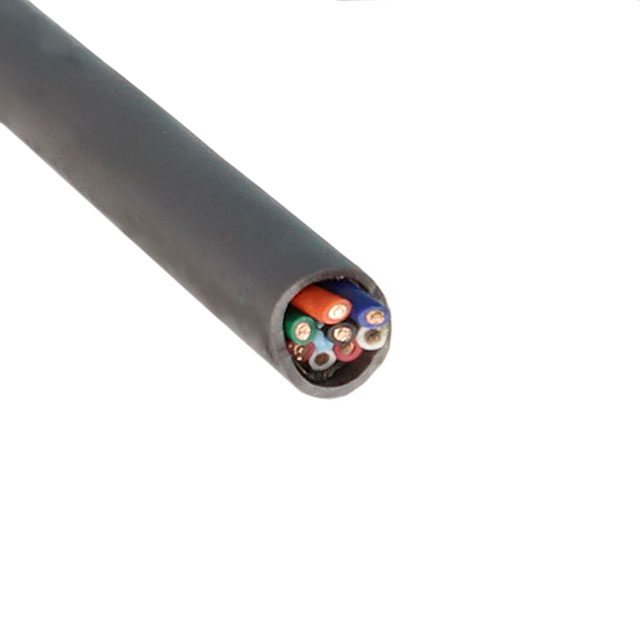

CABLE 8COND 18AWG SHLD
| Part | Number of Conductors | Jacket Color | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Usage | Shield Material | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Shield Coverage | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 8 | Slate | 18 AWG | 0.762 mm | 0.03 in | Poly-Vinyl Chloride (PVC) | Communication Control | Copper Tinned | Copper Tinned | 19 | 30 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 105 ░C | -55 °C | 1000 ft | 304.8 m | 90 % | Braid | ||
ALPHA WIRE | 8 | Slate | 18 AWG | 0.762 mm | 0.03 in | Poly-Vinyl Chloride (PVC) | Communication Control | Copper Tinned | Copper Tinned | 19 | 30 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 105 ░C | -55 °C | 90 % | Braid | 30.5 m | 100 ft |
