LAA350 Series
Manufacturer: Panduit Corp
Beta
⌘K

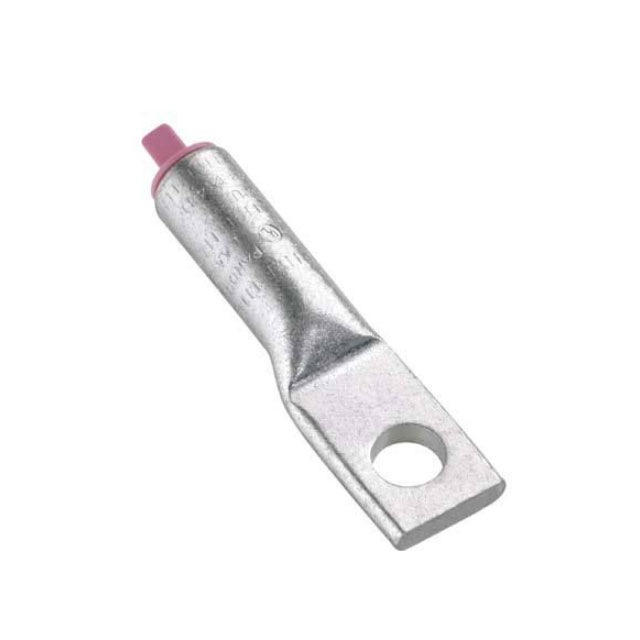

CONN TERM RECT TONG 350 MCM #1/2
| Part | Mounting Type | Stud/Tab Size | Contact Material | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Length - Overall [x] | Length - Overall [x] | Features | Terminal Type | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Termination | Tab Thickness | Tab Thickness | Terminal Style | Contact Finish | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Free Hanging (In-Line) | 1/2 Stud | Aluminum | Non-Insulated | 1.5 in | 38.1 mm | 26.67 mm | 1.05 " | 4.281 in | 107.74 mm | Gel Filled | Rectangular Tongue | 0.72 in | 18.29 mm | Barrel Crimp | 9.53 mm | 0.375 " | Single Stud Hole | Tin | 350 MCM (kcmil) |
