V7-1Z1 Series

Catalog

MICROSWITCH, MINIATURE, PIN PLUNGER, SPDT, QUICK CONNECT, 25 A

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Voltage Rating - AC	Operating Position	Operating Position	Current Rating (Amps)	Operating Force [Max]	Operating Force [Min]	Mounting Type	Actuator Type	Differential Travel [x]	Differential Travel [x]	Pretravel	Pretravel	Release Force	Electrical Life	Operating Force

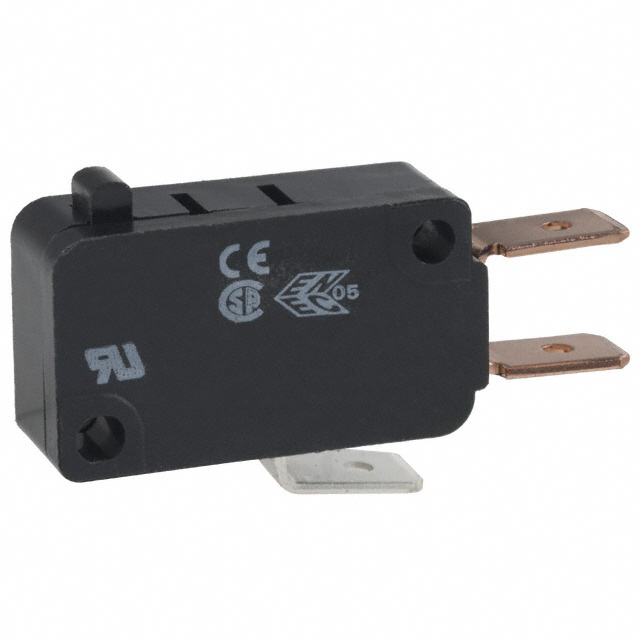

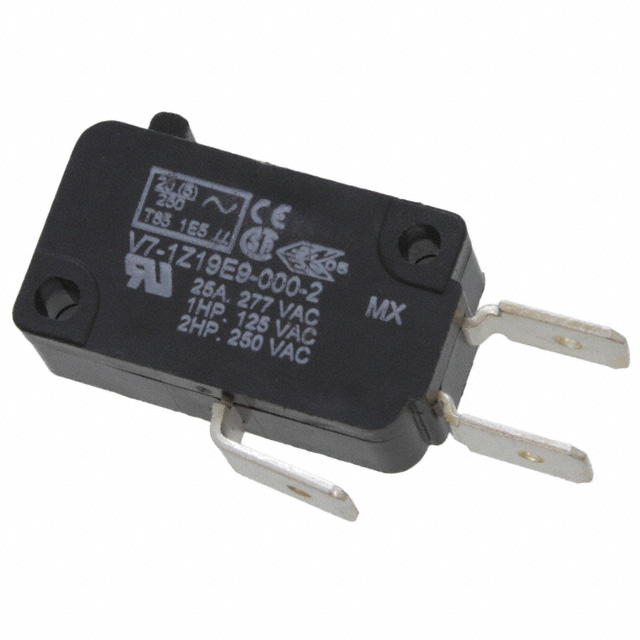

Honeywell Sensing and Productivity Solutions V7-1Z19E9-000-2	On-Mom	85 °C	-40 C	SPDT	Quick Connect - 0.250" (6.3mm)	1.27 mm	0.05 "	10000000 Cycles	277 V	14.7 mm	0.579 in	25 A	190 gf	90 gf	Chassis Mount	Round (Pin Plunger)	0.01 in	0.25 mm	1.2 mm	0.047 in	20 gf	100000 Cycles
Honeywell Sensing and Productivity Solutions V7-1Z13E993	On-Mom	150 °C	-40 C	SPDT	Quick Connect - 0.250" (6.3mm)	1.27 mm	0.05 "	10000000 Cycles	277 V	14.7 mm	0.579 in	25 A			Chassis Mount	Round (Pin Plunger)	0.01 in	0.25 mm	1.2 mm	0.047 in	20 gf	100000 Cycles	225 gf

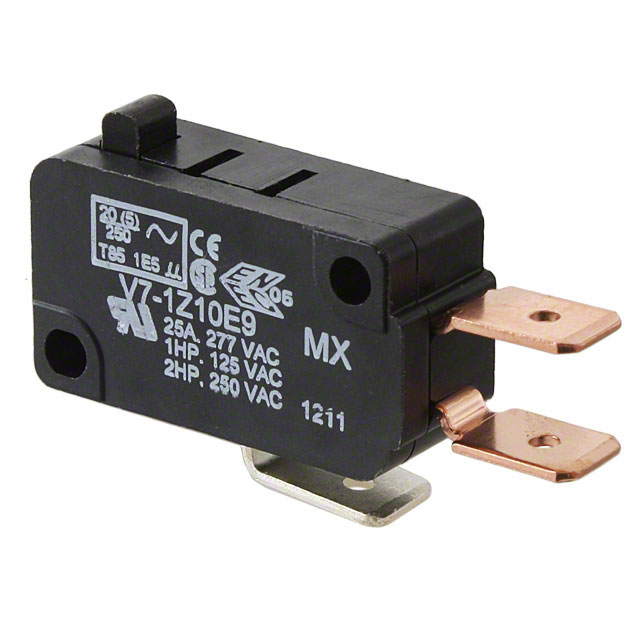

Honeywell Sensing and Productivity Solutions V7-1Z10E9	On-Mom	85 °C	-40 C	SPDT	Quick Connect - 0.250" (6.3mm)	1.27 mm	0.05 "	10000000 Cycles	277 V	14.7 mm	0.579 in	25 A			Chassis Mount	Round (Pin Plunger)	0.01 in	0.25 mm	1.2 mm	0.047 in	20 gf	100000 Cycles	225 gf
