RZE10 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 20POS 0.039
| Part | Material - Insulation | Card Thickness | Card Thickness | Contact Finish | Number of Rows [custom] | Read Out | Pitch | Pitch | Mounting Type | Contact Material | Contact Type | Card Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Positions/Bay/Row | Number of Positions | Color | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Gold | 2 | Dual | 1 mm | 0.039 in | Surface Mount | Phosphor Bronze | Hairpin Bellows | Non Specified - Dual Edge | Female | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | Board Lock | 10 | 20 | Black | Solder | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Gold | 2 | Dual | 1 mm | 0.039 in | Through Hole | Phosphor Bronze | Hairpin Bellows | Non Specified - Dual Edge | Female | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | 10 | 20 | Black | Solder Staggered | ||||

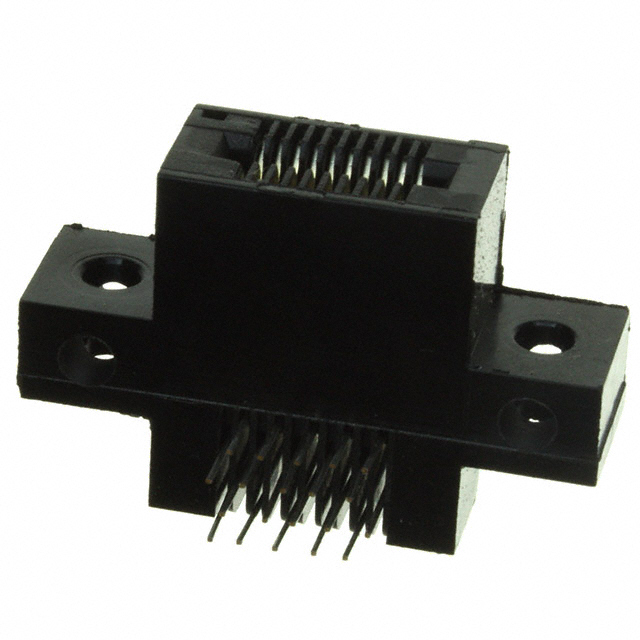

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Gold | 2 | Dual | 1 mm | 0.039 in | Right Angle Through Hole | Phosphor Bronze | Hairpin Bellows | Non Specified - Dual Edge | Female | -65 ░C | 125 °C | 0.25 Ám | 10 Áin | 10 | 20 | Black | Solder Staggered | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm |
