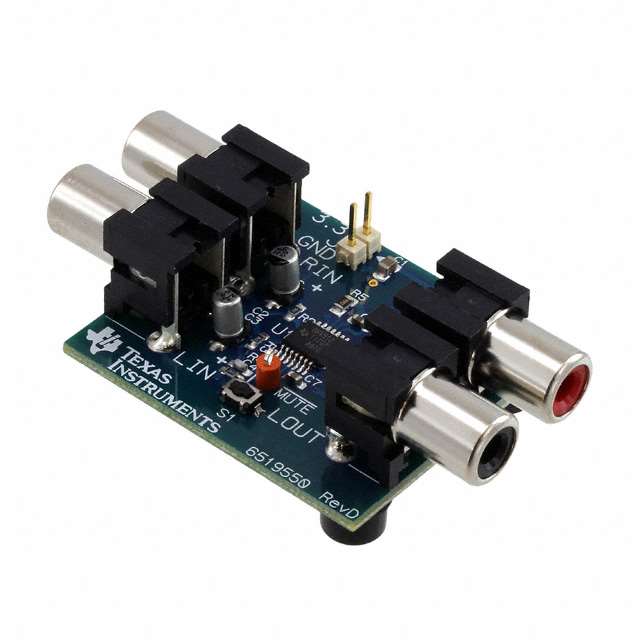

DRV612 Series
2-Vrms DirectPath™; pop-free line driver with programmable fixed gain
Manufacturer: Texas Instruments
Catalog
2-Vrms DirectPath™; pop-free line driver with programmable fixed gain
Key Features
• DirectPath™Eliminates Pops and ClicksEliminates Output DC-Blocking Capacitors3-V to 3.6-V Supply VoltageLow Noise and THDSNR > 105 dB at –1× GainVn < 12 µVms, 20 Hz to 20 kHz at –1× Gain (Typical)THD+N < 0.003% at 10-kΩ Load and –1× Gain2-Vrms Output Voltage Into 600-Ω LoadSingle-Ended Input and OutputProgrammable Gain Select Reduces Component Count13× Gain ValuesActive Mute With More Than 80-dB AttenuationShort-Circuit and Thermal Protection±8-kV HBM ESD-Protected OutputsDirectPath™Eliminates Pops and ClicksEliminates Output DC-Blocking Capacitors3-V to 3.6-V Supply VoltageLow Noise and THDSNR > 105 dB at –1× GainVn < 12 µVms, 20 Hz to 20 kHz at –1× Gain (Typical)THD+N < 0.003% at 10-kΩ Load and –1× Gain2-Vrms Output Voltage Into 600-Ω LoadSingle-Ended Input and OutputProgrammable Gain Select Reduces Component Count13× Gain ValuesActive Mute With More Than 80-dB AttenuationShort-Circuit and Thermal Protection±8-kV HBM ESD-Protected Outputs
Description
AI
The DRV612 is a single-ended, 2-Vrms stereo line driver designed to reduce component count, board space, and cost. It is ideal for single-supply electronics where size and cost are critical design parameters.
The DRV612 does not require a power supply greater than 3.3 V to generate its 5.6-VPPoutput, nor does it require a split-rail power supply.
The DRV612 device is designed using TI’s patented DirectPath technology, which integrates a charge pump to generate a negative supply rail that provides a clean, pop-free ground-biased output. The DRV612 is capable of driving 2 Vms into a 600-Ω load. DirectPath technology also allows the removal of the costly output dc-blocking capacitors.
The device has fixed-gain single-ended inputs with a gain-select pin. Using a single resistor on this pin, the designer can choose from 13 internal programmable gain settings to match the line driver with the codec output level. The device also reduces the component count and board space.
Line outputs have ±8-kV HBM ESD protection, enabling a simple ESD protection circuit. The DRV612 has built-in active mute control with more that 80-dB attenuation for pop-free mute on/off control.
The DRV612 is available in a 14-pin TSSOP and 16-pin VQFN. For a footprint-compatible stereo headphone driver, see the TPA6139A2.
The DRV612 is a single-ended, 2-Vrms stereo line driver designed to reduce component count, board space, and cost. It is ideal for single-supply electronics where size and cost are critical design parameters.
The DRV612 does not require a power supply greater than 3.3 V to generate its 5.6-VPPoutput, nor does it require a split-rail power supply.
The DRV612 device is designed using TI’s patented DirectPath technology, which integrates a charge pump to generate a negative supply rail that provides a clean, pop-free ground-biased output. The DRV612 is capable of driving 2 Vms into a 600-Ω load. DirectPath technology also allows the removal of the costly output dc-blocking capacitors.
The device has fixed-gain single-ended inputs with a gain-select pin. Using a single resistor on this pin, the designer can choose from 13 internal programmable gain settings to match the line driver with the codec output level. The device also reduces the component count and board space.
Line outputs have ±8-kV HBM ESD protection, enabling a simple ESD protection circuit. The DRV612 has built-in active mute control with more that 80-dB attenuation for pop-free mute on/off control.
The DRV612 is available in a 14-pin TSSOP and 16-pin VQFN. For a footprint-compatible stereo headphone driver, see the TPA6139A2.
