9394 Series
Manufacturer: Belden Inc.
Beta
⌘K

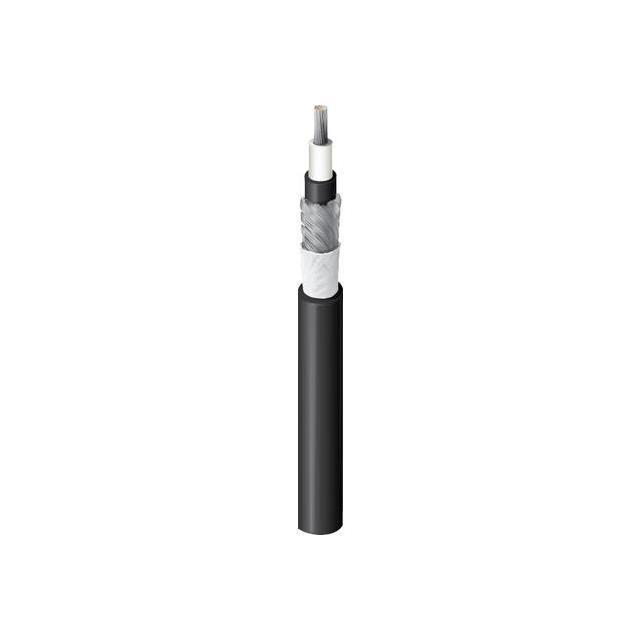

#20 EPDM SNGLS CPE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Shield Coverage | Conductor Strand | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket Color | Usage | Impedance | Jacket (Insulation) Material | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -30 ░C | 60 °C | Copper Tinned Textile | Copper Tinned | 2.46 mm | 0.097 in | Ethylene Propylene Terpolymer Rubber (EPDM) | 95 % 100 % | 27 Strands 34 AWG | 304.8 m | 1000 ft | 0.19 in | 4.83 mm | 20 AWG | Black | Audio | 34 Ohms | Chlorinated Polyethylene (CPE) | Coaxial | Foil Spiral |
