0272-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC 0.072DIA GOLD
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Mounting Type | Terminal Style | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

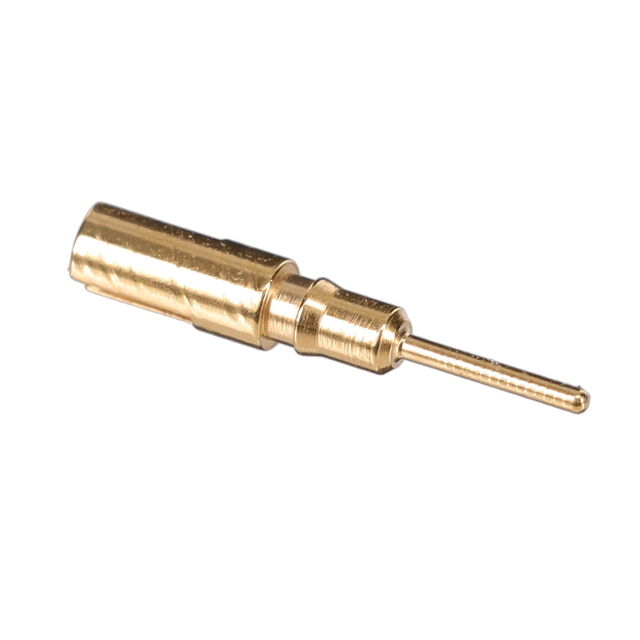

 Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | PC Pin | Press-Fit | 0.46 mm | 0.018 in | 0.25 Ám | 10 Áin | 1.83 mm | 0.072 in | 6.58 mm | 0.259 " | Non-Insulated | 0.157 in | 3.99 mm | Brass Alloy | Through Hole | Single End Slotted | 0.416 in | 10.57 mm | 0.072 " | 1.83 mm | Gold |

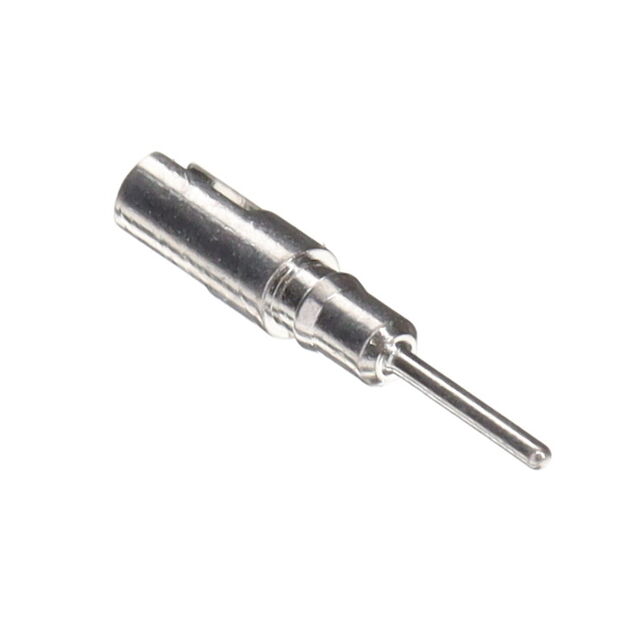

 Mill-Max Manufacturing Corp. | 1.45 mm | 0.057 in | PC Pin | Press-Fit | 0.46 mm | 0.018 in | 5.08 Ám | 200 Áin | 1.83 mm | 0.072 in | 6.58 mm | 0.259 " | Non-Insulated | 0.157 in | 3.99 mm | Brass Alloy | Through Hole | Single End Slotted | 0.416 in | 10.57 mm | 0.072 " | 1.83 mm | Tin-Lead |
