75844 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

...

Part	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Mounting Type	Shrouding	Number of Positions Loaded	Contact Type	Style	Overall Contact Length	Overall Contact Length	Insulation Material	Termination	Fastening Type	Number of Rows	Contact Shape	Contact Material	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Voltage Rating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Length - Post	Contact Length - Post

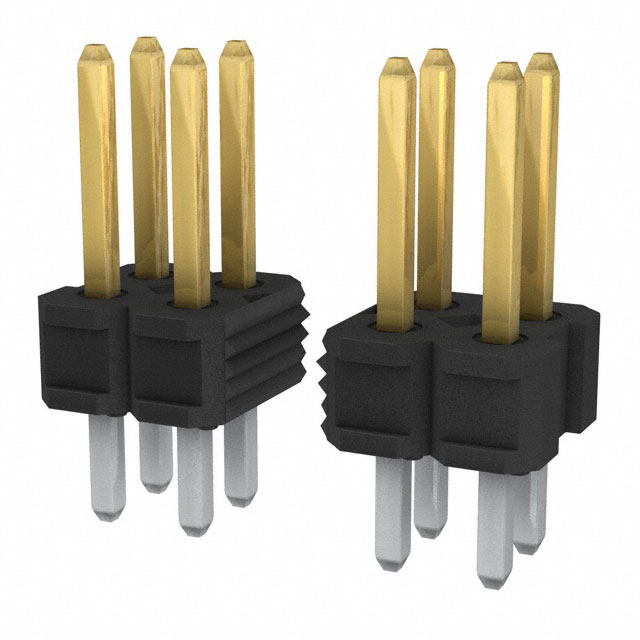

Amphenol ICC (FCI) 75844-150-72	3.12 mm	0.123 in	72	30 Áin	0.76 Ám	Breakaway Header	0.23 in	5.84 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.453 in	11.5 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm

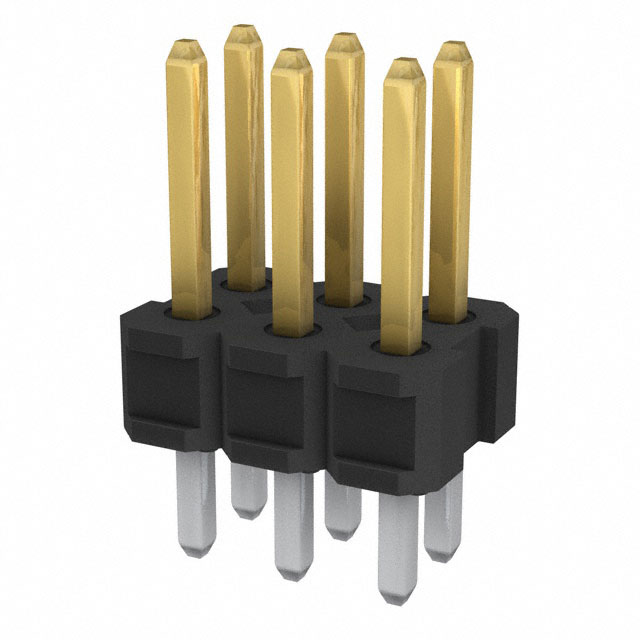

Amphenol ICC (FCI) 75844-118-06LF	3.05 mm	0.12 in	6	30 Áin	0.76 Ám	Breakaway Header		5.72 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.445 "	11.3 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC	0.225 in	-65 ░C	130 °C

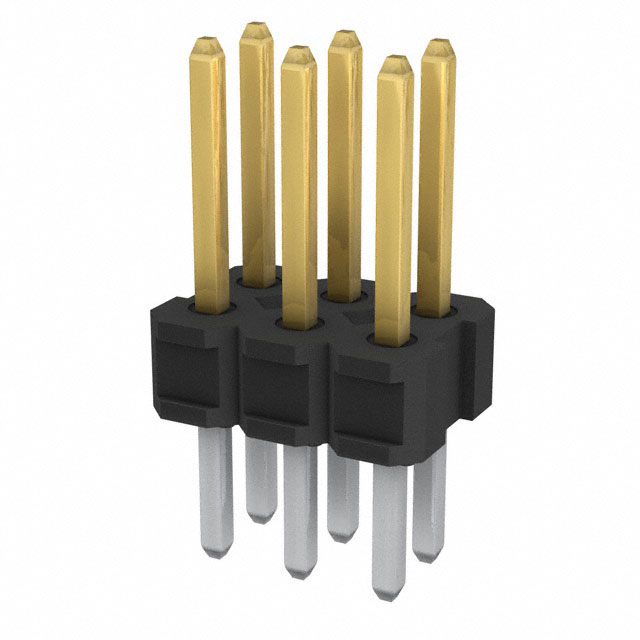

Amphenol ICC (FCI) 75844-128-06LF	4.19 mm	0.165 in	6	30 Áin	0.76 Ám	Breakaway Header			Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.525 in	13.34 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC		-65 ░C	130 °C	6.6 mm	0.26 in
Amphenol ICC (FCI) 75844-101-28LF			28	30 Áin	0.76 Ám	Breakaway Header		5.72 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable			Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC	0.225 in	-65 ░C	130 °C			2.54 mm	0.1 in
Amphenol ICC (FCI) 75844-101-14			14	30 Áin	0.76 Ám	Breakaway Header		5.72 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable			Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC	0.225 in	-65 ░C	130 °C			2.54 mm	0.1 in

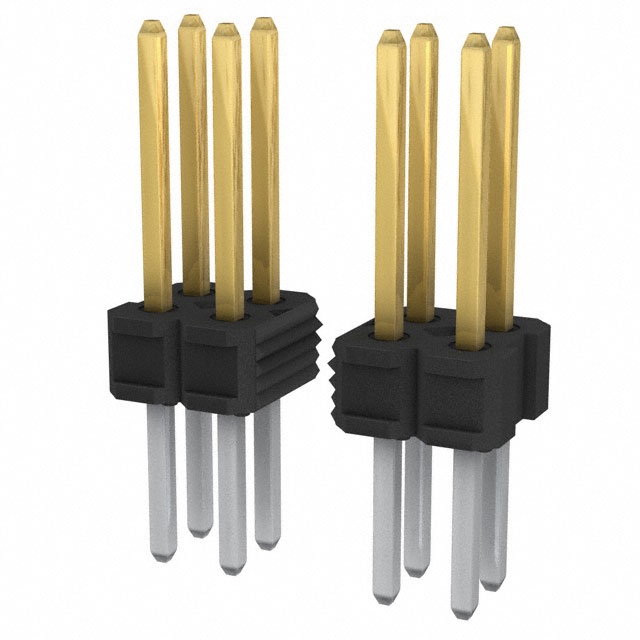

Amphenol ICC (FCI) 75844-116-12LF			12	30 Áin	0.76 Ám	Breakaway Header		8.51 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.652 in	16.56 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC	0.335 in	-65 ░C	130 °C			5.51 mm	0.217 in

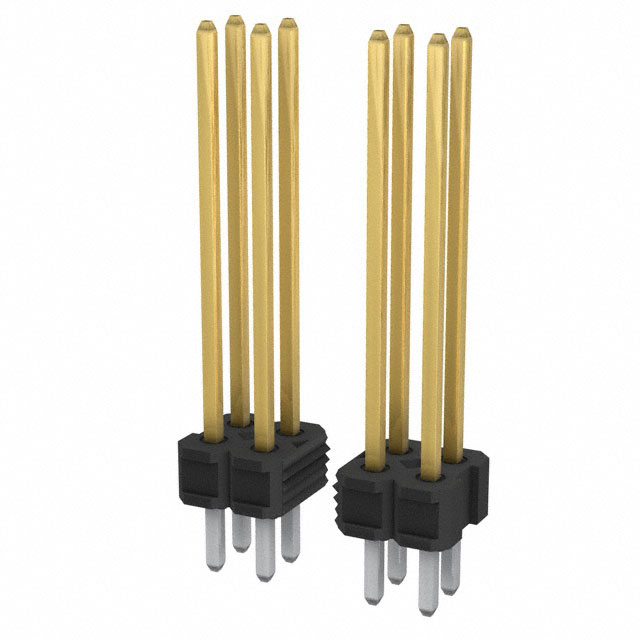

Amphenol ICC (FCI) 75844-129-14	3.43 mm	0.135 in	14	30 Áin	0.76 Ám	Breakaway Header		17.53 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.925 in	23.5 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm			0.69 in

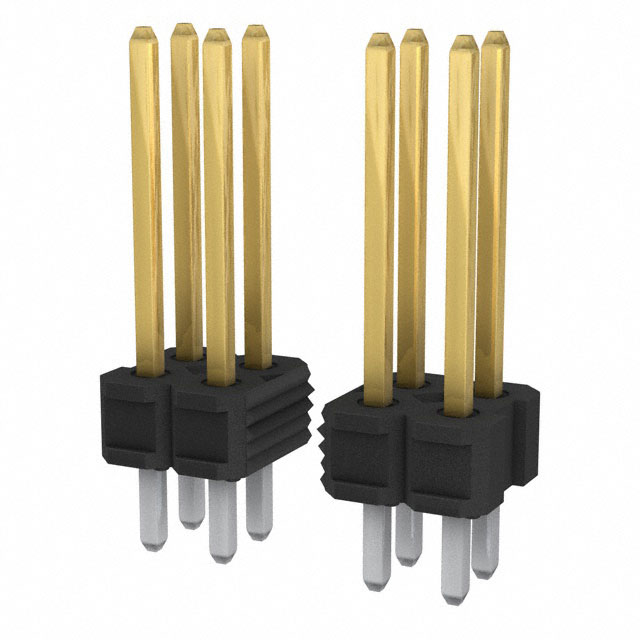

Amphenol ICC (FCI) 75844-140-26	3.05 mm	0.12 in	26	30 Áin	0.76 Ám	Breakaway Header		10.29 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.625 in	15.88 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm			0.405 in
Amphenol ICC (FCI) 75844-136-44LF		0.472 "	44	30 Áin	0.76 Ám	Breakaway Header		11.5 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	1.025 in	26.04 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC	0.453 "	-65 ░C	130 °C			12 mm
Amphenol ICC (FCI) 75844-118-68LF	3.05 mm	0.12 in	68	30 Áin	0.76 Ám	Breakaway Header		5.72 mm	Through Hole	Unshrouded	All	Male Pin	Board to Board Cable	0.445 "	11.3 mm	Thermoplastic	Solder	Push-Pull	2	Square	Phosphor Bronze	Black	UL94 V-0	Gold GXT™	0.1 in	2.54 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	5 A	110 VDC	0.225 in	-65 ░C	130 °C
