1478987 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

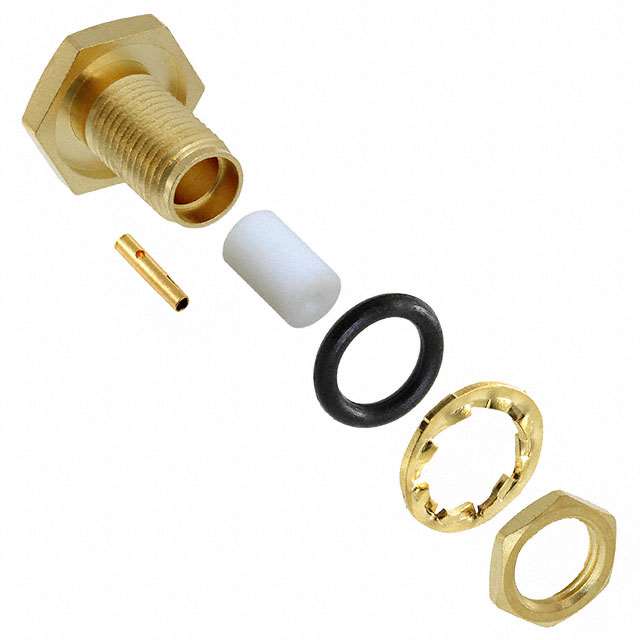

CONN SMA JACK STR 50 OHM SOLDER
| Part | Body Finish | Includes | Body Material | Mating Cycles | Dielectric Material | Center Contact Plating | Mounting Feature | Connector Style | Mounting Type | Frequency - Max [Max] | Fastening Type | Connector Type | Contact Termination | Center Contact Material | Impedance | Housing Color | Number of Ports | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 1 Connector 1 Contact 1 Gasket 1 Insulator 1 Lockwasher 1 Nut | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | SMA | Panel Mount | 6000 MHz | Threaded | Female Socket Jack | Solder | Beryllium Copper | 50 Ohms | Gold | 1 | Solder |
 TE Connectivity AMP Connectors | Gold | 1 Connector 1 Contact 1 Gasket 1 Insulator 1 Lockwasher 1 Nut | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | SMA | Panel Mount | 18 GHz | Threaded | Female Socket Jack | Solder | Beryllium Copper | 50 Ohms | Gold | 1 | Solder |
