RP-1106 Series
Manufacturer: RF Industries
Beta
⌘K

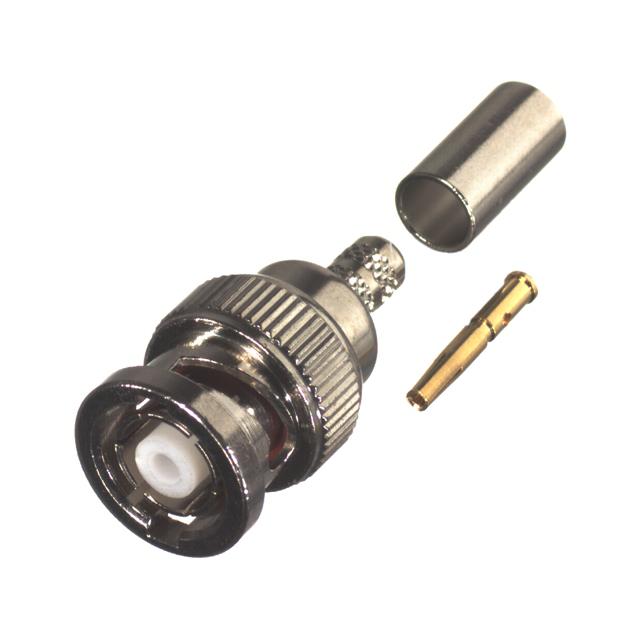

RP BNC MALE CRIMP; 50 OHMS
| Part | Dielectric Material | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Termination | Housing Color | Connector Style | Cable Group | Number of Ports | Center Contact Material | Mounting Type | Fastening Type | Frequency - Max [Max] | Connector Type | Shield Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Gold | -65 ░C | 165 °C | 500 V | Crimp | Silver | RP-BNC | 142 223 RG-55 | 1 | Phosphor Bronze | Free Hanging (In-Line) | Bayonet Lock | 4 GHz | Female Socket Plug | Crimp | 50 Ohms |
