SG5032CCN Series

Manufacturer: EPSON

Catalog

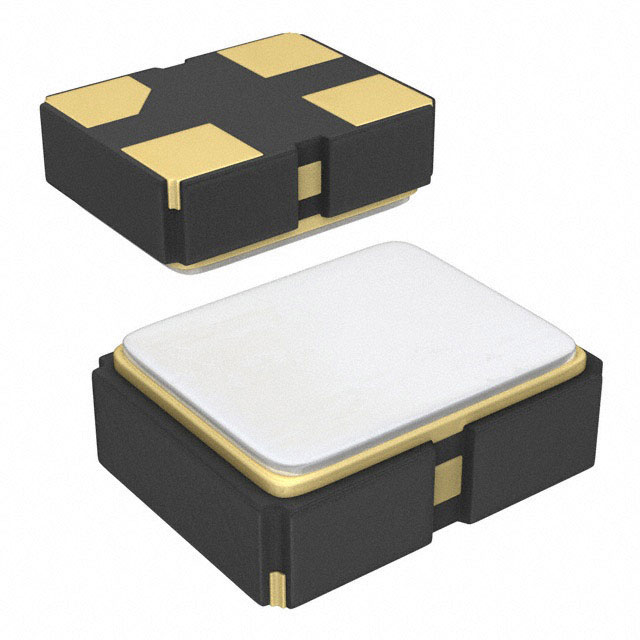

XTAL OSC XO 4.000000MHZ CMOS SMD

Part	Current - Supply (Disable) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Function	Frequency Stability	Mounting Type	Output	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Frequency	Package / Case	Current - Supply (Max) [Max]	Base Resonator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]
EPSON SG5032CCN 4.000000M-HJGA0	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	4 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 16.000000M-HJGAB	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	16 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 48.000000M-HJGAB	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	48 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 4.915200M-HJGAB	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	4.9152 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 40.680000M-HJGAB	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	40.68 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 29.491200M-HJGA3		85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	29.4912 MHz	4-SMD No Lead	20 mA	Crystal	5.5 V	4.5 V
EPSON SG5032CCN 48.000000M-HJGA3	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	48 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 4.096000M-HJGA3		85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	4.096 MHz	4-SMD No Lead	20 mA	Crystal	5.5 V	4.5 V
EPSON SG5032CCN 25.000000M-HJGA0	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	25 MHz	4-SMD No Lead	20 mA	Crystal
EPSON SG5032CCN 4.000000M-HJGAB	10 mA	85 °C	-40 C	XO (Standard)	Enable/Disable	50 ppm	Surface Mount	CMOS	3.2 mm	0.126 in	5 mm	0.197 in	0.051 in	1.3 mm	4 MHz	4-SMD No Lead	20 mA	Crystal
