HES.1M Series
Manufacturer: LEMO
Beta
⌘K

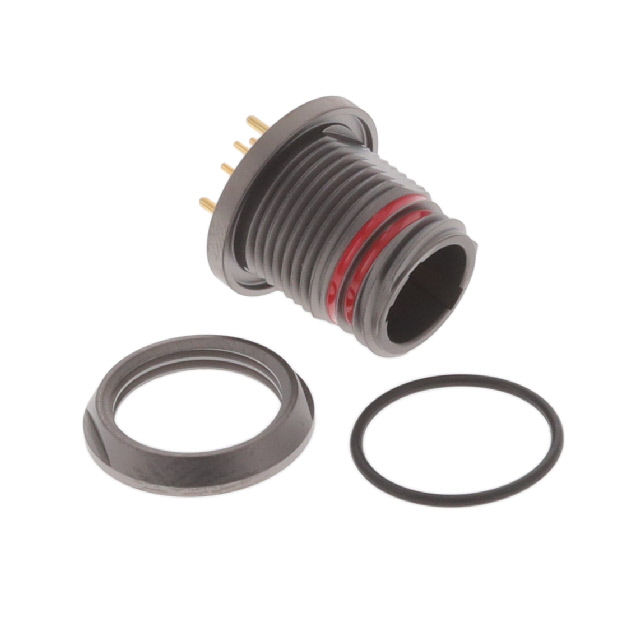

CONN RCPT MALE 5POS GOLD SOLDER
| Part | Shell Size - Insert | Ingress Protection | Current Rating (Amps) | Mounting Feature | Applications | Shell Finish | Shell Material | Contact Material | Features | Contact Finish - Mating | Termination | Primary Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Color | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 305 | IP68 - Dust Tight Waterproof | 9 A | Bulkhead - Front Side Nut | Aerospace Automotive Aviation Military | Nickel | Aluminum Alloy | Brass | Potted | Gold | Solder | Metal | Polyetheretherketone (PEEK) | 1 µm | 39.4 µin | Panel Mount Through Hole | S | -20 C | 80 C | Male Pins Receptacle | Gray | Shielded | |
 LEMO | 308 | IP68 - Dust Tight Waterproof | 5 A | Bulkhead - Front Side Nut | Aerospace Automotive Aviation Military | Nickel | Aluminum Alloy | Brass | Potted | Gold | Solder | Metal | Polyetheretherketone (PEEK) | 1 µm | 39.4 µin | Panel Mount Through Hole | S | -20 C | 80 C | Male Pins Receptacle | Gray | Shielded | 8 |
