MC33888 Series

Catalog

IC PWR SWITCH N-CHANNEL 64PQFP

Part	Supplier Device Package	Mounting Type	Switch Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Rds On (Typ)	Fault Protection	Package / Case	Interface	Features	Output Type	Number of Outputs [custom]	Number of Outputs [custom]	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]

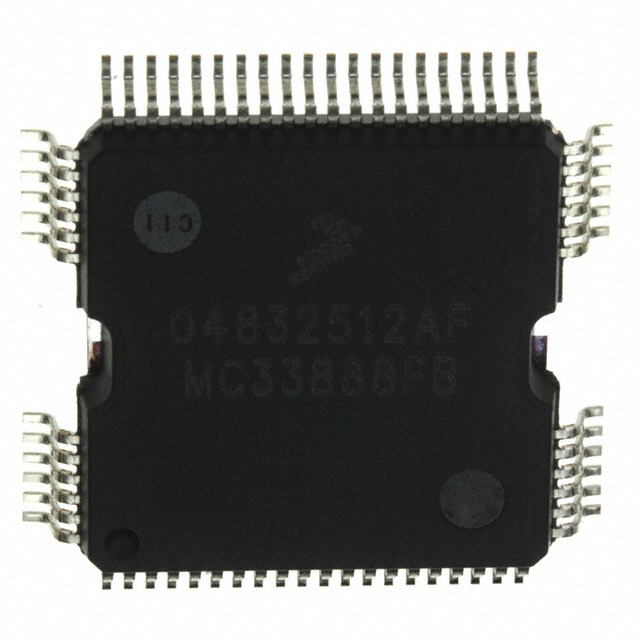

Freescale Semiconductor - NXP MC33888FBR2	64-PQFP (14x14)	Surface Mount	General Purpose	5.5 V	4.5 V	10 mOhm 40 mOhm 600 mOhm	Current Limiting (Fixed) Open Load Detect Over Voltage	64-PowerBQFP	SPI	Watchdog Timer	N-Channel	8	4	27 V	6 V	High Side or Low Side	150 °C	-40 °C
Freescale Semiconductor - NXP MC33888FB	64-PQFP (14x14)	Surface Mount	General Purpose	5.5 V	4.5 V	10 mOhm 40 mOhm 600 mOhm	Current Limiting (Fixed) Open Load Detect Over Voltage	64-PowerBQFP	SPI	Watchdog Timer	N-Channel	8	4	27 V	6 V	High Side or Low Side	150 °C	-40 °C
