9728 Series
Manufacturer: Belden Inc.
Beta
⌘K

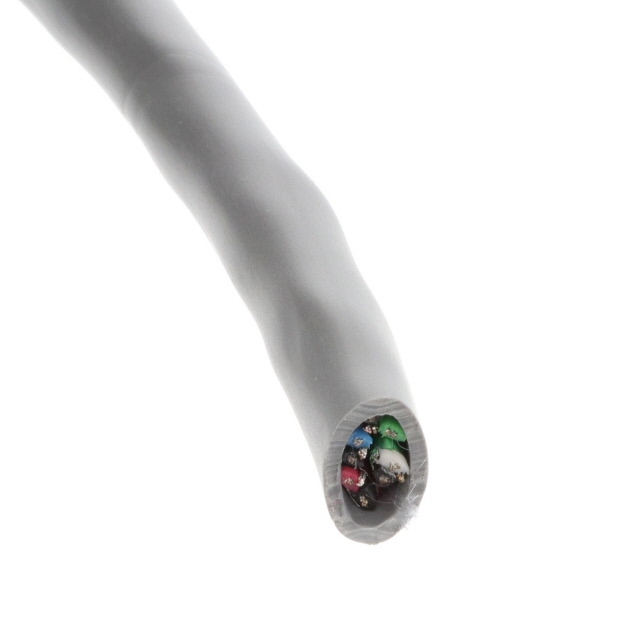

CABLE 8COND 24AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Conductor Material | Voltage | Number of Conductors | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Wire Gauge | Usage | Ratings | Jacket (Insulation) Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Tinned | 300 VDC | 8 | 304.8 m | 1000 ft | 7 | 32 AWG | Foil | 24 AWG | Computer | UL Style 2919 | Poly-Vinyl Chloride (PVC) | Drain Wire | 80 °C | -20 ░C | Chrome | 1.219 mm | 0.048 in | Foam Polyethylene (FPE) | Multi-Conductor | 9.22 mm | 0.363 in | ||
Belden Inc. | 100 % | Aluminum | Copper Tinned | 8 | 7 | 32 AWG | Foil | 24 AWG | UL Style 2919 | Poly-Vinyl Chloride (PVC) | Drain Wire | 80 °C | -20 ░C | Chrome | 1.219 mm | 0.048 in | Foam Polyethylene (FPE) | Multi-Pair | 9.22 mm | 0.363 in | 100 ft | 30.5 m |
