AWH 40A Series

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Number of Positions Loaded	Termination	Shrouding	Fastening Type	Features	Material Flammability Rating	Contact Type	Connector Type	Mounting Type	Number of Rows [custom]	Style	Contact Finish - Mating	Contact Shape	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)

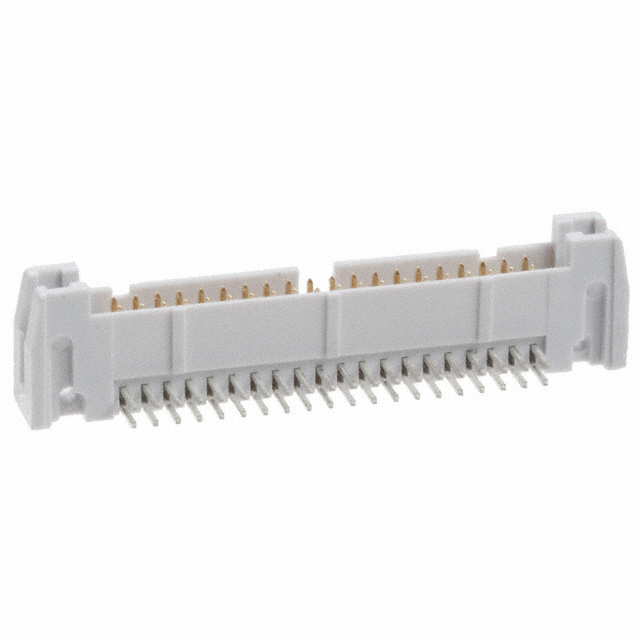

Assmann WSW Components AWH40A-0202-T-R	All	Solder	Shrouded - 4 Wall	Push-Pull	Keying Slot	UL94 V-0	Male Pin	Header	Right Angle Through Hole	2	Board to Cable/Wire	Gold	Square	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	17 mm	0.669 in	40	Gray	0.1 in	2.54 mm	Flash	Brass	3.81 mm	0.15 in	Tin	-40 C	105 ░C	3 A
Assmann WSW Components AWH40A-0232-T-R	All	Solder	Shrouded - 4 Wall	Latch Lock/Eject Hooks Long	Keying Slot	UL94 V-0	Male Pin	Header	Right Angle Through Hole	2	Board to Cable/Wire	Gold	Square	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	17 mm	0.669 in	40	Gray	0.1 in	2.54 mm	Flash	Brass	3.81 mm	0.15 in	Tin	-40 C	105 ░C	3 A
