2307727 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,B-B,REC,SRHZ,SMD,0.76AU

Part	Contact Type	Number of Positions	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Current Rating (Amps)	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Finish - Mating	Contact Shape	Termination	Insulation Material	Insulation Color	Contact Material	Insulation Height	Insulation Height

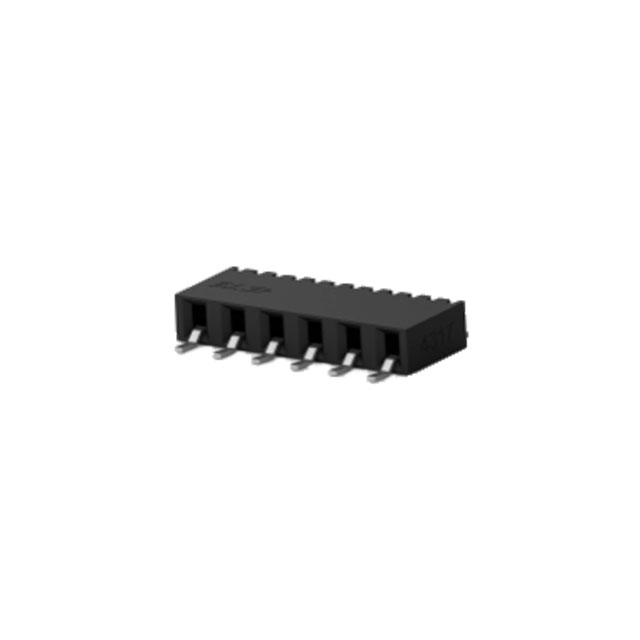

TE Connectivity Raychem Cable Protection 2307727-6	Female Socket	6	Surface Mount Right Angle	30 Áin	0.76 Ám	125 VDC	2 A	All	0.08 in	2.03 mm	UL94 V-0	3 µm	118.1 µin	Push-Pull	1	Receptacle	125 °C	-40 °C	0.079 in	2 mm	Tin	Gold	Square	Solder	Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze
TE Connectivity Raychem Cable Protection 1-2307727-0	Female Socket	10	Surface Mount Right Angle	30 Áin	0.76 Ám	125 VDC	2 A	All			UL94 V-0	0.3 µm	12 µin	Push-Pull	1	Receptacle	125 °C	-40 °C	0.079 in	2 mm	Tin	Gold	Square	Solder	Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze	2.1 mm	0.083 "

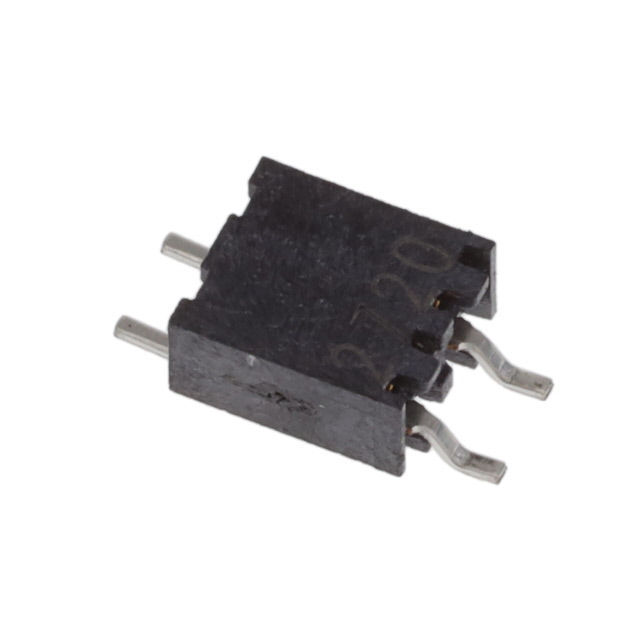

TE Connectivity Raychem Cable Protection 2307727-2	Female Socket	2	Surface Mount Right Angle	30 Áin	0.76 Ám	125 VDC	2 A	All	0.08 in	2.03 mm	UL94 V-0	3 µm	118.1 µin	Push-Pull	1	Receptacle	125 °C	-40 °C	0.079 in	2 mm	Tin	Gold	Square	Solder	Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze

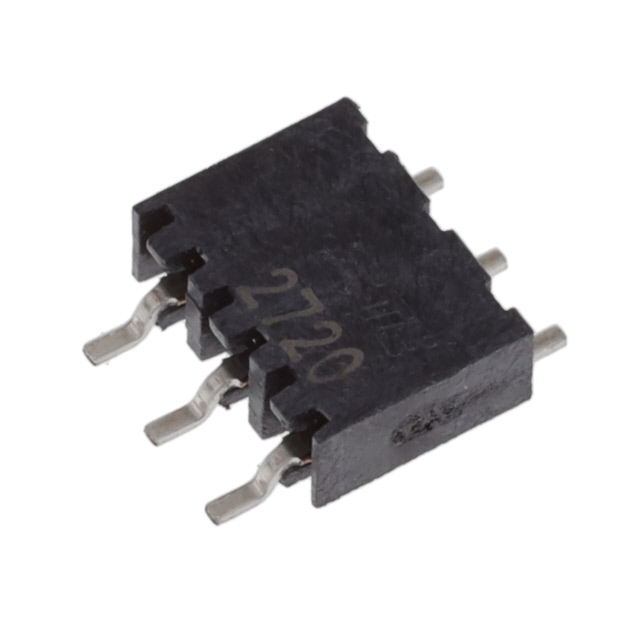

TE Connectivity Raychem Cable Protection 2307727-3	Female Socket		Surface Mount Right Angle	30 Áin	0.76 Ám	125 VDC	2 A	All	0.08 in	2.03 mm	UL94 V-0	3 µm	118.1 µin	Push-Pull	1	Receptacle	125 °C	-40 °C	0.079 in	2 mm	Tin	Gold	Square	Solder	Liquid Crystal Polymer (LCP)	Black	Phosphor Bronze
