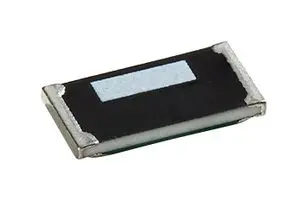

PE2512F Series

Manufacturer: YAGEO

Catalog

Catalog

RES 0.026 OHM 1% 2W 2512

...

Part	Package / Case	Ratings	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Composition	Supplier Device Package	Power (Watts)	Temperature Coefficient	Number of Terminations [custom]	Features	Tolerance	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
YAGEO PE2512FKE7W0R026L	2512 2512 (6432 Metric)	AEC-Q200	26 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	2 W	50 ppm/░C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm	6332 Metric	170 °C	-55 C
YAGEO PE2512FKM7W0R015L	2512 (6432 Metric)	AEC-Q200	15 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	2 W	75 ppm/°C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm		170 °C	-55 C
YAGEO PE2512FKF7W0R047L	2512 (6432 Metric)	AEC-Q200	47 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	2 W	100 ppm/°C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm		170 °C	-55 C
YAGEO PE2512FKE7W0R008Z	2512 (6432 Metric)		8 mOhms	0.254 in		0.128 in			2512	2 W	50 ppm/░C	2	Current Sense	1 %				170 °C	-55 C	6.45 mm	3.25 mm	0.95 mm	0.037 in
YAGEO PE2512FKE7W0R07L	2512 2512 (6432 Metric)	AEC-Q200	0.07 Ohms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	2 W	50 ppm/░C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm	6332 Metric	170 °C	-55 C
YAGEO PE2512FKF070R009L	2512 (6432 Metric)	AEC-Q200	9 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	1 W	100 ppm/°C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm		170 °C	-55 C
YAGEO PE2512FKF7W0R075L	2512 (6432 Metric)	AEC-Q200	75 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	2 W	100 ppm/°C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm		170 °C	-55 C
YAGEO PE2512FKM7W0R008Z	2512 (6432 Metric)		8 mOhms	0.254 in		0.128 in			2512	2 W	75 ppm/°C	2	Current Sense	1 %				170 °C	-55 C	6.45 mm	3.25 mm	0.95 mm	0.037 in
YAGEO PE2512FKM070R013L	2512 (6432 Metric)	AEC-Q200	13 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	1 W	75 ppm/°C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm		170 °C	-55 C
YAGEO PE2512FKF070R015L	2512 2512 (6432 Metric)	AEC-Q200	15 mOhms	6.35 mm	0.125 "	3.18 mm	0.25 in	Metal Film	2512	1 W	100 ppm/°C	2	Automotive AEC-Q200 Current Sense	1 %	0.035 "	0.89 mm	6332 Metric	170 °C	-55 C
