GF1L0C-P Series
Manufacturer: ODU
Beta
⌘K

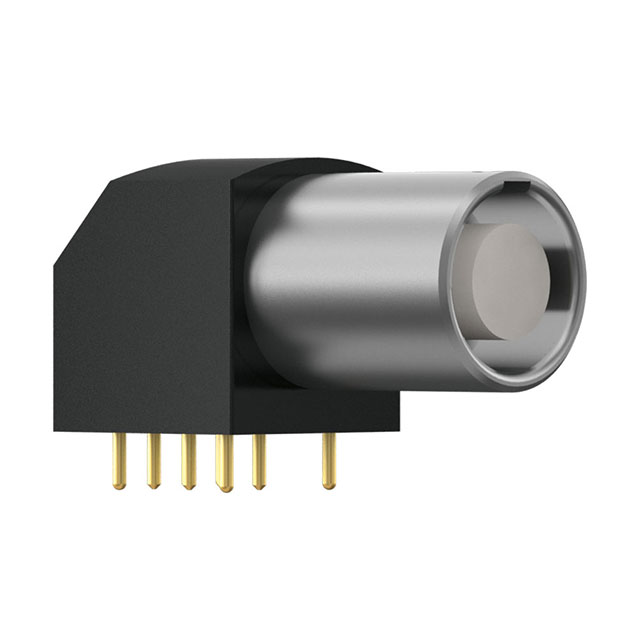

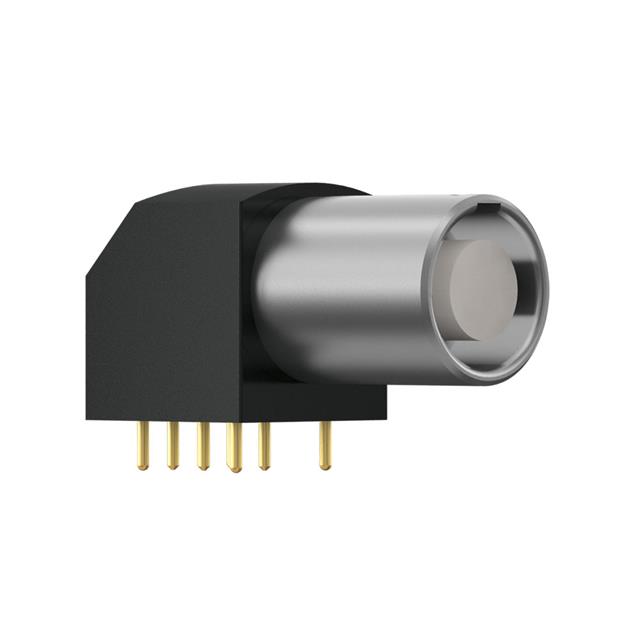

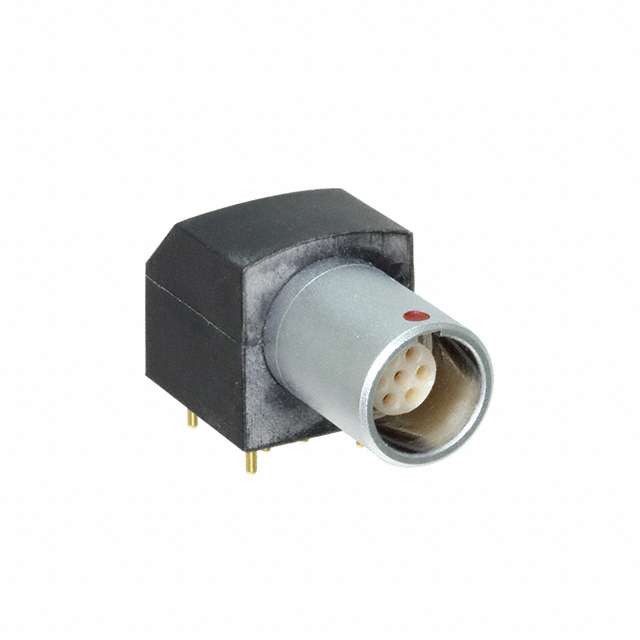

CONN RCPT FMALE 7POS GOLD SOLDER
| Part | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish - Mating | Shell Finish | Connector Type | Insert Material | Features | Shell Material | Applications | Fastening Type | Mounting Type | Primary Material | Number of Positions | Ingress Protection | Orientation | Current Rating (Amps) | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 120 °C | -40 C | Silver | Gold | Chrome over Nickel | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Ground | Brass | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Panel Mount Right Angle Through Hole | Metal | 7 | IP50 - Dust Protected | 0 | 6 A | Brass | Solder | |
1 | 120 °C | -40 C | Silver | Gold | Chrome over Nickel | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Ground | Brass | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Panel Mount Right Angle Through Hole | Metal | 5 | IP50 - Dust Protected | 0 | 7.5 A | Brass | Solder | |
1 | 120 °C | -40 C | Silver | Gold | Chrome over Nickel | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Ground | Brass | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Panel Mount Right Angle Through Hole | Metal | IP50 - Dust Protected | 0 | 12 Amps | Brass | Solder | ||
1 | 120 °C | -40 C | Silver | Gold | Chrome over Nickel | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Ground | Brass | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Panel Mount Right Angle Through Hole | Metal | 10 | IP50 - Dust Protected | 0 | 4 A | Brass | Solder |
