638-W44 Series
Manufacturer: EDAC Inc.
Beta
⌘K
638W (WATERPROOF) SERIES VERTICA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Dielectric Material | Color | Ingress Protection | Number of Rows [custom] | Contact Type | Current Rating (Amps) | Connector Type | Shell Material, Finish | Mounting Type | Number of Positions | Flange Feature | Shell Size, Connector Layout | Connector Style | Contact Finish | Material Flammability Rating | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

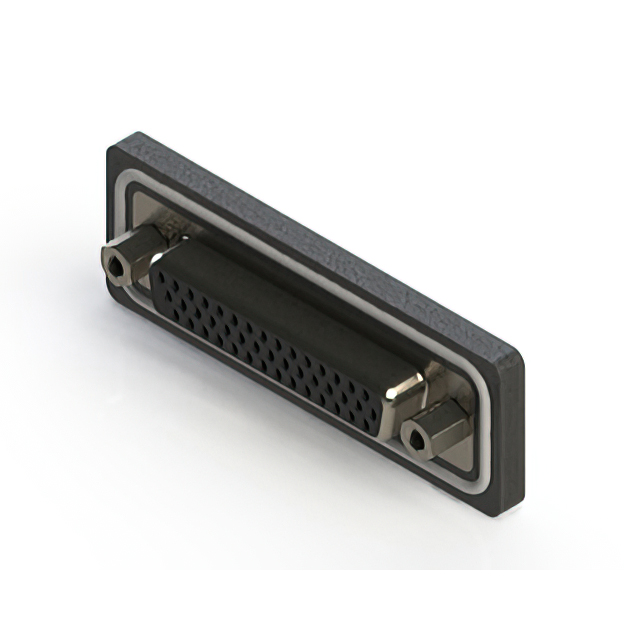

 EDAC Inc. | 85 °C | -25 °C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | IP67 - Dust Tight Waterproof | 3 | Signal | 3 A | Receptacle Female Sockets | Nickel Plated Steel | Through Hole | 44 | 4-40 Mating Side Female Screwlock | 3 | D-Sub High Density | Gold | UL94 V-0 | Solder | 30 Áin | 0.76 Ám | |

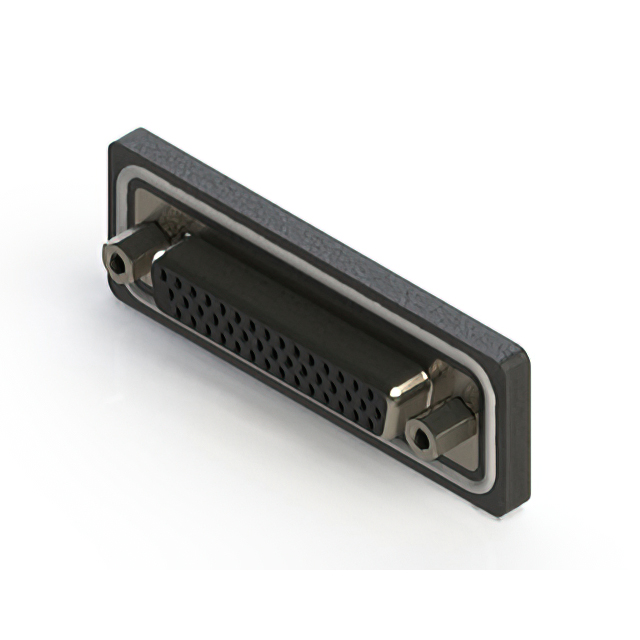

 EDAC Inc. | 85 °C | -25 °C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | IP67 - Dust Tight Waterproof | 3 | Signal | 3 A | Receptacle Female Sockets | Nickel Plated Steel | Free Hanging (In-Line) | 44 | 4-40 Mating Side Female Screwlock | 3 | D-Sub High Density | Gold | UL94 V-0 | Flash | |||
 EDAC Inc. | 85 °C | -25 °C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | IP67 - Dust Tight Waterproof | 3 | Signal | 3 A | Receptacle Female Sockets | Nickel Plated Steel | Through Hole | 44 | 4-40 Mating Side Female Screwlock | 3 | D-Sub High Density | Gold | UL94 V-0 | Solder | 15 µin | 0.38 µm | |
 EDAC Inc. | 85 °C | -25 °C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | IP67 - Dust Tight Waterproof | 3 | Signal | 3 A | Receptacle Female Sockets | Nickel Plated Steel | Through Hole | 44 | 4-40 Mating Side Female Screwlock | 3 | D-Sub High Density | Gold | UL94 V-0 | Solder | Flash |
