OSTTJ03 Series

Catalog

TERM BLOCK PLUG 3POS STR 5.08MM

Part	Wire Strip Length [Min]	Wire Strip Length [Max]	Housing Material	Material Flammability Rating	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Material	Contact Mating Finish	Color	Voltage - IEC	Pitch	Pitch	Voltage - UL	Mounting Type	Number of Levels	Positions Per Level	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²

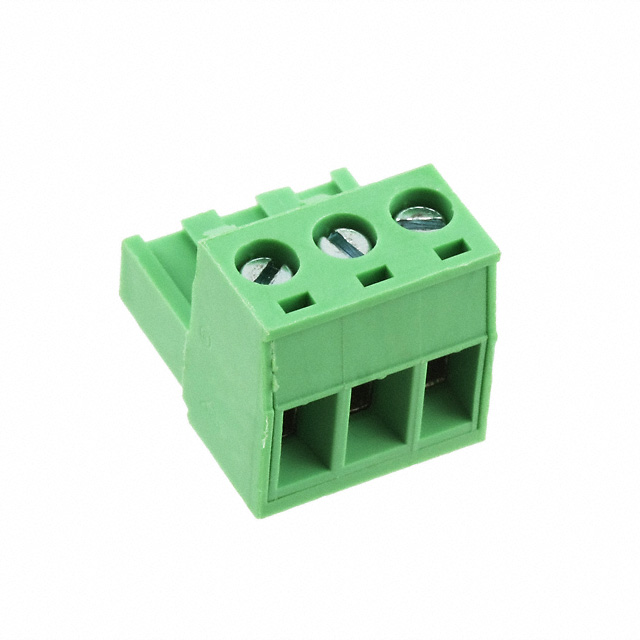

On Shore Technology Inc. OSTTJ035153	7 mm	8 mm	Brass	UL94 V-0	0.56 Nm	5 Lb-In	0.34 mm˛	2.5 mm˛	Brass	Tin	Green	300 V	5.08 mm	0.2 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG	0.34 mm²	2.5 mm²	Plug Female Sockets	Screw	-30 ░C	105 ░C
On Shore Technology Inc. OSTTJ0311520	6 mm	7 mm	Brass	UL94 V-0	0.28 Nm	2.5 Lb-In			Brass				3.5 mm	0.138 "	300 V	Free Hanging (In-Line)	1	3	16 AWG	26 AWG			Plug Female Sockets	Screw	-30 ░C	105 ░C
On Shore Technology Inc. OSTTJ035183			Brass				0.34 mm˛	2.5 mm˛		Tin	Gray	300 V	5.08 mm	0.2 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG	0.34 mm²	2.5 mm²	Plug Female Sockets	Screw	-30 ░C	105 ░C
On Shore Technology Inc. OSTTJ035103			Brass				0.34 mm˛	2.5 mm˛		Tin	Black	300 V	5.08 mm	0.2 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG	0.34 mm²	2.5 mm²	Plug Female Sockets	Screw	-30 ░C	105 ░C
On Shore Technology Inc. OSTTJ037152	7 mm	8 mm	Brass	UL94 V-0	0.56 Nm	5 Lb-In			Brass		Green		5 mm	0.197 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG	0.34 mm²	2.5 mm²	Plug Female Sockets	Screw	-30 ░C	105 ░C
On Shore Technology Inc. OSTTJ0331520	6 mm	7 mm	Brass	UL94 V-0	0.28 Nm	2.5 Lb-In			Brass		Green		3.81 mm	0.15 in	300 V	Free Hanging (In-Line)	1	3	16 AWG	26 AWG			Plug Female Sockets	Screw	-30 ░C	105 ░C	1.5 mm˛	1.5 mm²
On Shore Technology Inc. OSTTJ035152	7 mm	8 mm	Brass	UL94 V-0	0.56 Nm	5 Lb-In			Brass		Green		5.08 mm	0.2 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG	0.34 mm²	2.5 mm²	Plug Female Sockets	Screw	-30 ░C	105 ░C

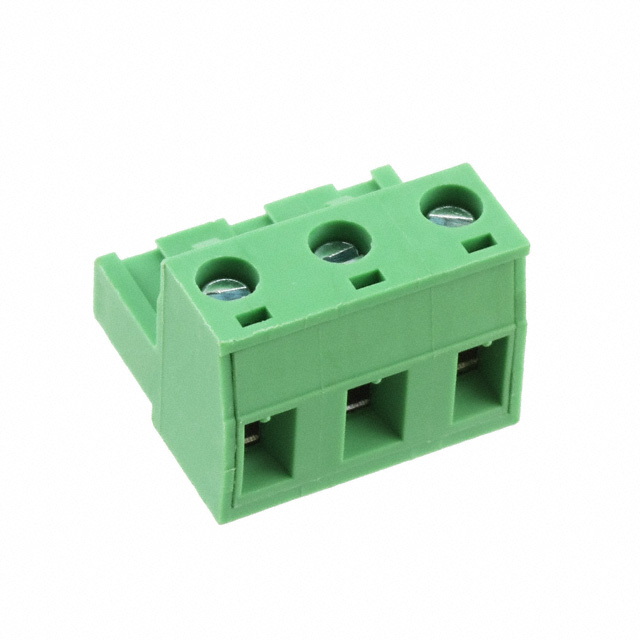

On Shore Technology Inc. OSTTJ030150	7 mm	8 mm	Brass	UL94 V-0	0.56 Nm	5 Lb-In			Brass				7.62 mm	0.3 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG			Plug Female Sockets	Screw	-30 ░C	105 ░C

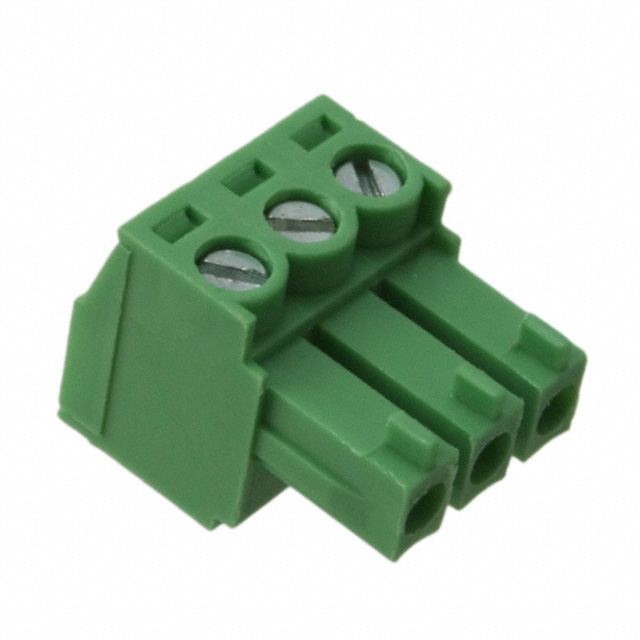

On Shore Technology Inc. OSTTJ0331530	6 mm	7 mm	Brass		0.28 Nm	2.5 Lb-In			Brass		Green		3.81 mm	0.15 in	300 V	Free Hanging (In-Line)	1	3	16 AWG	26 AWG			Plug Female Sockets	Screw	-40 C	115 °C	1.5 mm˛	1.5 mm²
On Shore Technology Inc. OSTTJ030152	7 mm	8 mm	Brass	UL94 V-0	0.56 Nm	5 Lb-In			Brass				7.62 mm	0.3 in	300 V	Free Hanging (In-Line)	1	3	12 AWG	24 AWG			Plug Female Sockets	Screw	-30 ░C	105 ░C
