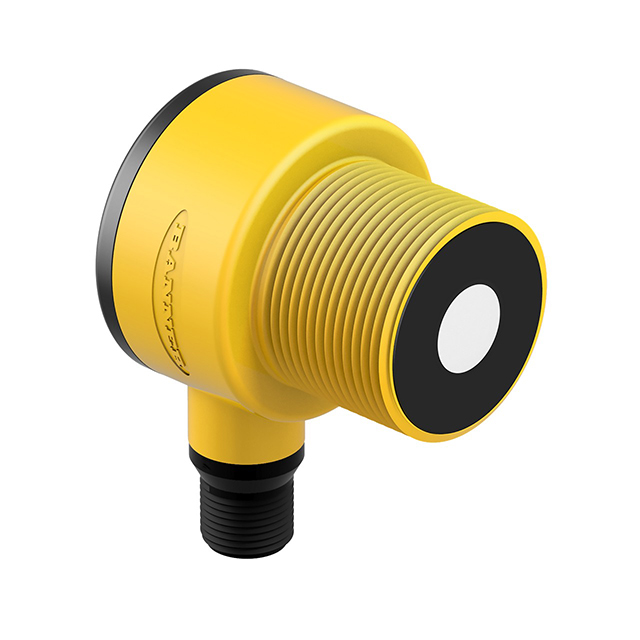

T30UX Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
T30UX SERIES W/ ANALOG OUTPUT
| Part | Material - Body | Operating Temperature [Max] | Operating Temperature [Min] | Response Frequency | Package / Case | Indicator | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensor Type | Output Type | Termination Style | Ingress Protection | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Min] | Shielding | Frequency | Voltage - Rated [Max] | Voltage - Rated [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Polybutylene Terephthalate (PBT) | 70 °C | -40 C | 224 kHz | Module | LED | 10 VDC | 30 VDC | Ultrasonic | Analog Voltage | Cable | IP67 | 39.37 in | 100 cm | 10 cm | 3.937 " | Unshielded | |||
 BANNER ENGINEERING | 70 °C | -40 C | 224 kHz | 30 VDC | 10 V | |||||||||||||||
 BANNER ENGINEERING | 70 °C | -40 C | 174 kHz | 30 VDC | 10 V | |||||||||||||||
BANNER ENGINEERING | Polybutylene Terephthalate (PBT) | 70 °C | -40 C | 224 kHz | Module | LED | 10 VDC | 30 VDC | Ultrasonic | Analog Current | Cable | IP67 | 39.37 in | 100 cm | 10 cm | 3.937 " | Unshielded | |||
 BANNER ENGINEERING | Polybutylene Terephthalate (PBT) | 70 °C | -40 C | 224 kHz | Module | LED | 10 VDC | 30 VDC | Ultrasonic | Analog Current | Connector | IP67 | 39.37 in | 100 cm | 10 cm | 3.937 " | Unshielded | |||
 BANNER ENGINEERING | Polybutylene Terephthalate (PBT) | 70 °C | -40 C | 224 kHz | Module | LED | 10 VDC | 30 VDC | Ultrasonic | Analog Voltage | Connector | IP67 | 39.37 in | 100 cm | 10 cm | 3.937 " | Unshielded | |||
 BANNER ENGINEERING | 70 °C | -40 C | 114 kHz | 30 VDC | 12 VDC | |||||||||||||||
BANNER ENGINEERING | Polybutylene Terephthalate (PBT) | 70 °C | -40 C | 224 kHz | Module | LED | 10 VDC | 30 VDC | Ultrasonic | 4-Wire NPN/PNP-NC/NO | Connector | IP67 | 39.37 in | 100 cm | 10 cm | 3.937 " | Unshielded | |||
BANNER ENGINEERING | Polybutylene Terephthalate (PBT) | 70 °C | -40 C | 114 kHz | Module | LED | 10 VDC | 30 VDC | Ultrasonic | 4-Wire NPN/PNP-NC/NO | Cable | IP67 | 118.11 " | 3 m | 30 cm | 11.811 " | Unshielded |
