PPTC341 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 34POS 0.1 TIN PCB

Part	Contact Shape	Insulation Material	Contact Material	Insulation Color	Mounting Type	Number of Positions [custom]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Voltage Rating	Number of Rows	Connector Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post

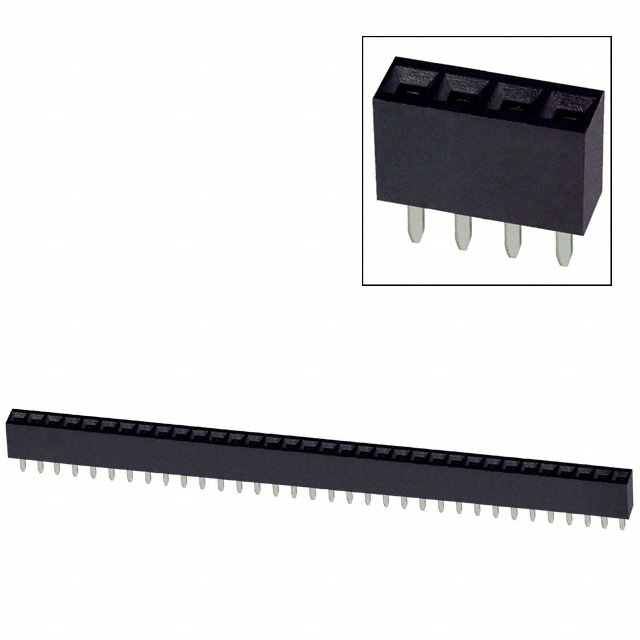

Sullins Connector Solutions PPTC341LFBN	Square	Polyester	Phosphor Bronze	Black	Through Hole	34	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	All	0.126 "	3.2 mm	Female Socket	250 V	1	Header	Tin	-40 C	105 ░C	Solder	0.335 "	8.51 mm

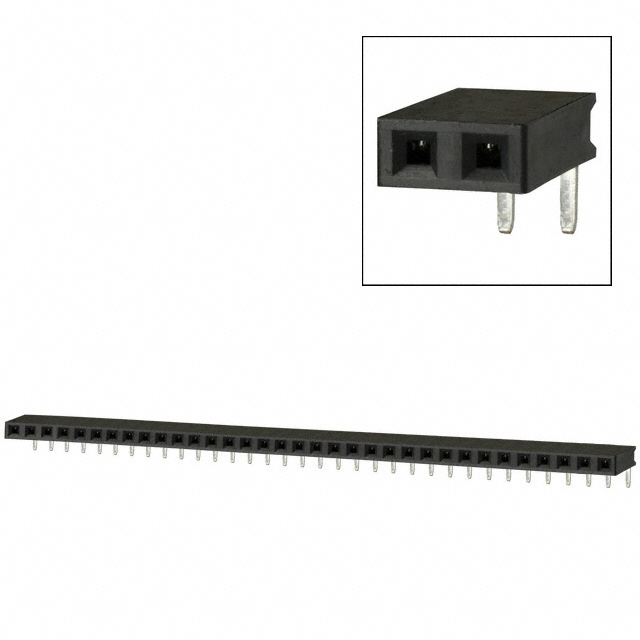

Sullins Connector Solutions PPTC341LGBN	Square	Polyester	Phosphor Bronze	Black	Right Angle Through Hole	34	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	All			Female Socket	250 V	1	Header	Tin	-40 C	105 ░C	Solder	0.1 in	2.54 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPTC341LGBN-RC	Square	Polyester	Phosphor Bronze	Black	Right Angle Through Hole	34	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	All			Female Socket	250 V	1	Header	Tin	-40 C	105 ░C	Solder	0.1 in	2.54 mm	0.124 in	3.15 mm

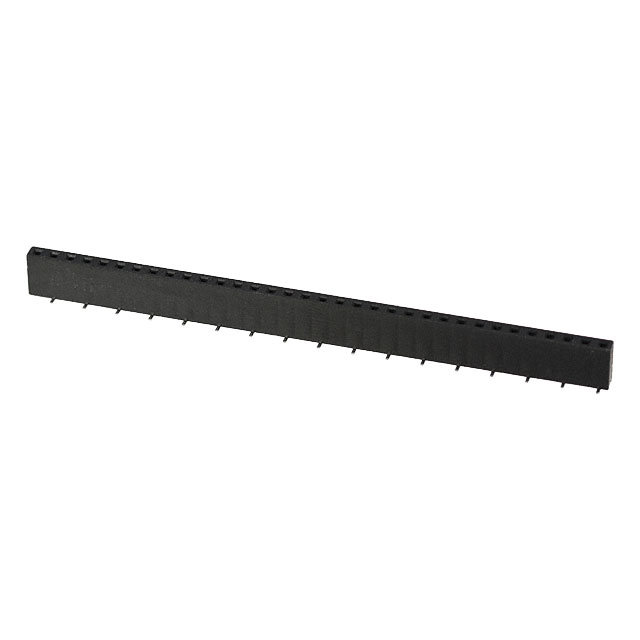

Sullins Connector Solutions PPTC341KFXC	Square	Polyester	Phosphor Bronze	Black	Surface Mount	34	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	All			Female Socket	250 V	1	Header Top or Bottom Entry	Tin	-40 C	105 ░C	Solder	0.28 in	7.1 mm
Sullins Connector Solutions PPTC341LFBN-RC	Square	Polyester	Phosphor Bronze	Black	Through Hole	34	3 A	0.1 "	2.54 mm	UL94 V-0	Push-Pull	All	0.126 "	3.2 mm	Female Socket	250 V	1	Header	Tin	-40 C	105 ░C	Solder	0.335 "	8.51 mm
