BC858 Series

Manufacturer: Micro Commercial Components

Catalog

SMALL SIGNAL BIPOLAR TRANSISTOR,

Part	Mounting Type	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Frequency - Transition	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Qualification	Grade
Micro Commercial Components BC858CL3-TP	Surface Mount	100 mA	150 mW	100 MHz	-55 °C	150 °C	DFN1006-3	420	SC-101 SOT-883	650 mV	15 nA	30 V	PNP
Micro Commercial Components BC858BW-TP	Surface Mount	100 mA	150 mW	100 MHz	-65 °C	150 °C	SOT-323		SC-70 SOT-323	650 mV	15 nA	30 V	PNP	220 hFE

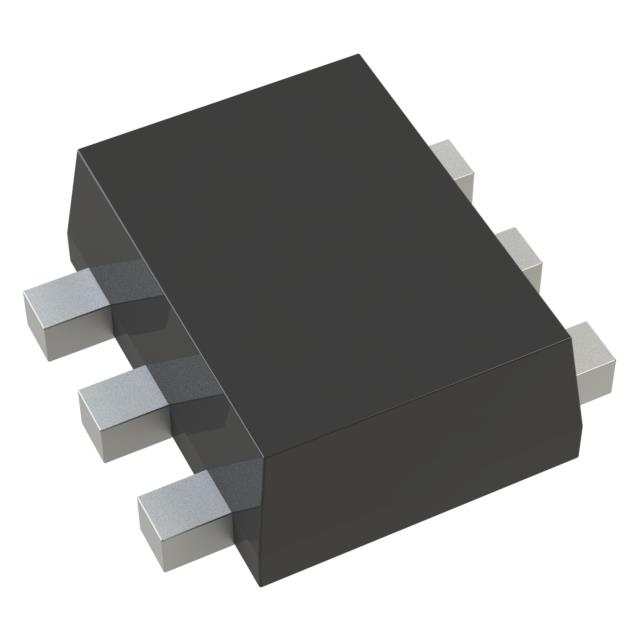

Micro Commercial Components BC858CV-TP	Surface Mount	100 mA		100 MHz	-55 °C	150 °C	SOT-563	420	SOT-563 SOT-666	650 mV	15 nA	30 V	2 PNP
Micro Commercial Components BC858AL3-TP	Surface Mount	100 mA	150 mW	100 MHz	-55 °C	150 °C	DFN1006-3	110	SC-101 SOT-883	650 mV	15 nA	30 V	PNP
Micro Commercial Components BC858CWHE3-TP	Surface Mount	100 mA	150 mW	100 MHz	-65 °C	150 °C	SOT-323	420	SC-70 SOT-323	650 mV	100 nA	30 V	PNP		AEC-Q101	Automotive
Micro Commercial Components BC858CWHE3-TP	Surface Mount	100 mA	150 mW	100 MHz	-65 °C	150 °C	SOT-323	420	SC-70 SOT-323	650 mV	100 nA	30 V	PNP		AEC-Q101	Automotive
Micro Commercial Components BC858CM3-TP	Surface Mount	100 mA	265 mW	100 MHz	-55 °C	150 °C	SOT-723	420	SOT-723	650 mV	1 mA	30 V	PNP
Micro Commercial Components BC858A-TP	Surface Mount	100 mA	200 mW	100 MHz	-55 °C	150 °C	SOT-23		SC-59 SOT-23-3 TO-236-3	650 mV	15 nA	30 V	PNP	125 hFE
Micro Commercial Components BC858CW-TP	Surface Mount	100 mA	200 mW	100 MHz	-65 °C	150 °C	SOT-323	420	SC-70 SOT-323	650 mV	15 nA	30 V	PNP
