C146 10F015 Series

Catalog

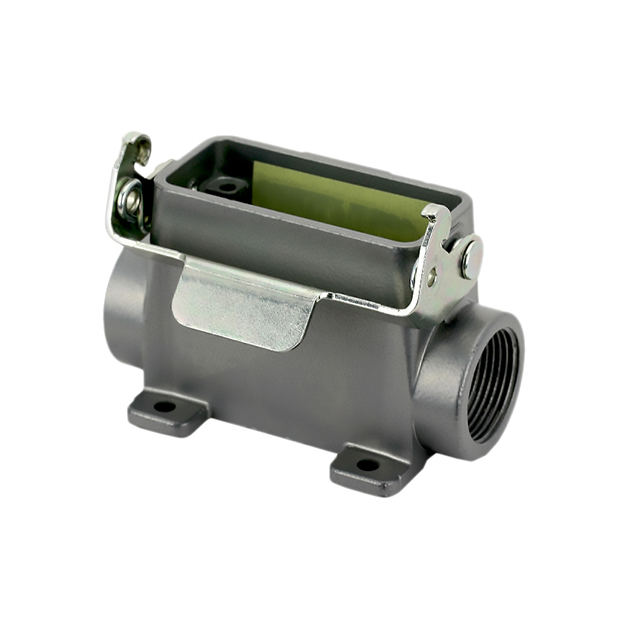

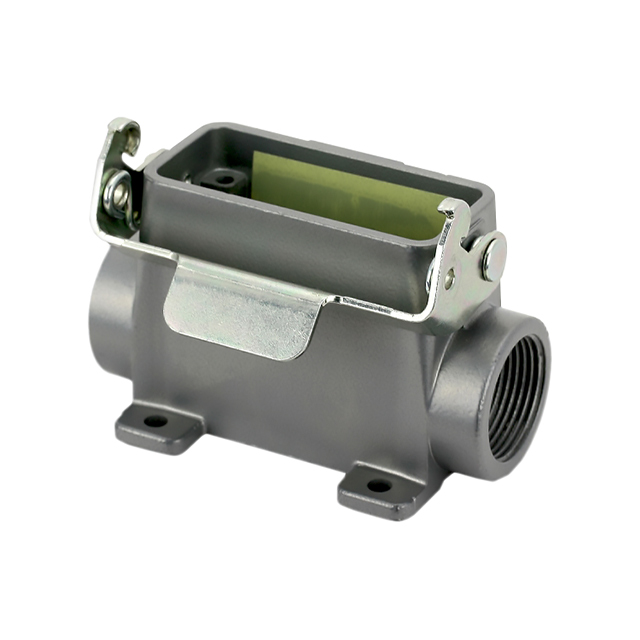

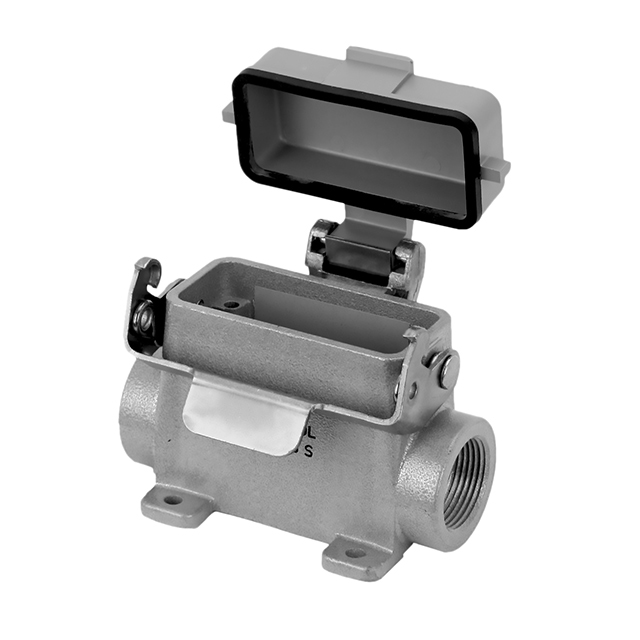

CONN BASE SIDE ENTRY SZA10 PG21

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style	Connector Type	Thread Size	Ingress Protection	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Size	Lock Location
Amphenol Tuchel Industrial C146 10F015 600 2	-40 C	100 °C	Side Entry	Base - Box Mount	PG21	IP65 - Dust Tight Water Resistant	Feed Through	1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Aluminum Alloy Die Cast	A10	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10F015 606 2	-40 C	100 °C	Side Entry	Base - Box Mount	PG21	IP65 - Dust Tight Water Resistant		1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Aluminum Alloy Die Cast	A10	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10F015 601 2	-40 C	100 °C	Side Entry	Base - Box Mount	PG16	IP65 - Dust Tight Water Resistant	Feed Through	1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Aluminum Alloy Die Cast	A10	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10F015 500 2	-40 C	100 °C	Side Entry	Base - Box Mount	PG21	IP65 - Dust Tight Water Resistant		1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Aluminum Alloy Die Cast	A10	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10F015 501 2	-40 C	100 °C	Side Entry	Base - Box Mount	PG16	IP65 - Dust Tight Water Resistant		1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Aluminum Alloy Die Cast	A10	Locking Clip (1) on Base Bottom
