HGG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 7P GOLD SLDR CUP

Part	Ingress Protection	Features	Insert Material	Color	Mounting Feature	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert	Shell Material	Orientation	Contact Material	Connector Type	Current Rating (Amps)	Primary Material	Shielding	Fastening Type	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions	Termination	Mounting Type

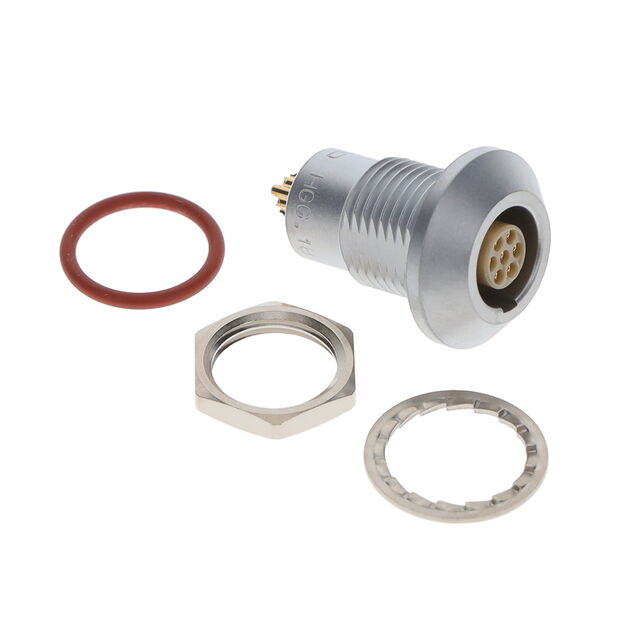

LEMO HGG.1B.307.CLLP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	7	307	Brass	G	Bronze	Receptacle Female Sockets	7 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0

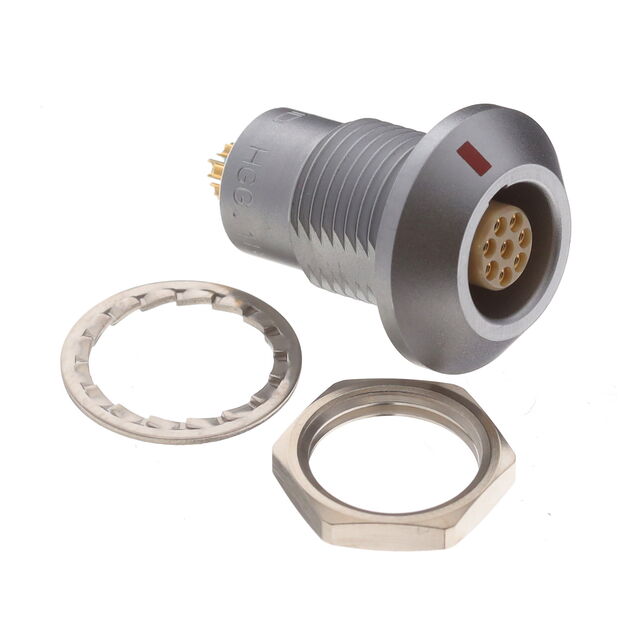

LEMO HGG.1B.308.CLLPV	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	8	308	Brass	G	Bronze	Receptacle Female Sockets	5 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0
LEMO HGG.1B.316.CLLPV	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C		316	Brass	G	Bronze	Receptacle Female Sockets	1.5 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0	16

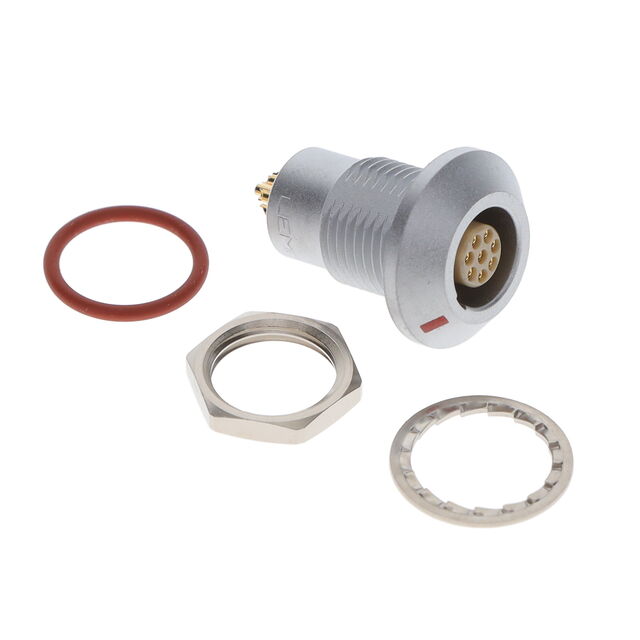

LEMO HGG.1B.308.CLLP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	8	308	Brass	G	Bronze	Receptacle Female Sockets	5 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0
LEMO HGG.1B.310.CLLP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	10	310	Brass	G	Bronze	Receptacle Female Sockets	2.5 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0

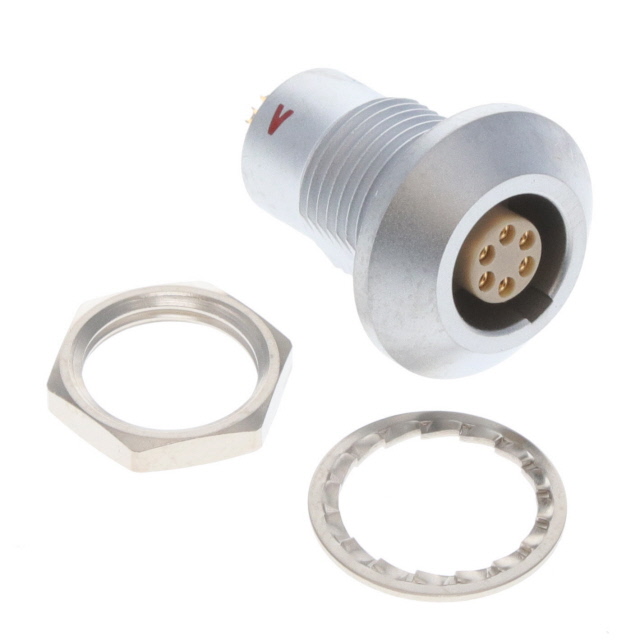

LEMO HGG.1B.306.CLLPV	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	6	306	Brass	G	Bronze	Receptacle Female Sockets	7 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0
LEMO HGG.1B.307.CLNP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	7	307	Brass	G	Bronze	Receptacle Female Sockets	7 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0		Solder	Panel Mount Through Hole
LEMO HGG.1B.306.CLLP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	6	306	Brass	G	Bronze	Receptacle Female Sockets	7 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0
LEMO HGG.1B.304.CLLP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C	4	304	Brass	G	Bronze	Receptacle Female Sockets	10 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0

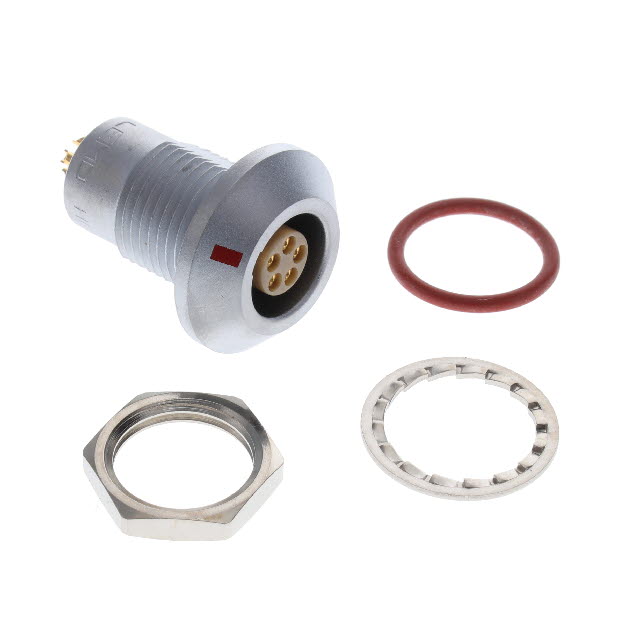

LEMO HGG.1B.305.CLLP	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	Silver	Bulkhead - Rear Side Nut	Gold	100 °C	-20 C		305	Brass	G	Bronze	Receptacle Female Sockets	9 A	Metal	Shielded	Push-Pull	Chrome	59 Áin	1.5 Ám	UL94 V-0
