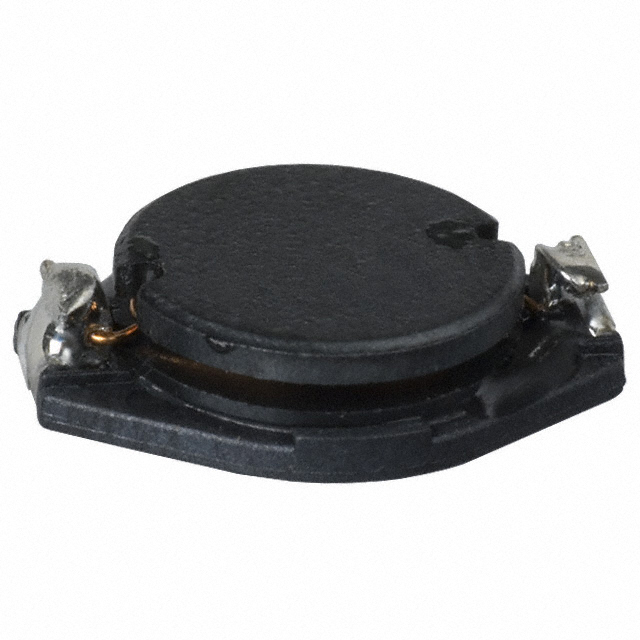

PM3308 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 15UH 1.5A 0.15MOHM SMD
| Part | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Tolerance | Inductance | Package / Case | Current Rating (Amps) | Material - Core | Shielding | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.15 mOhm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 2 A | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 15 µH | Nonstandard | 1.5 A | Ferrite | Unshielded | |
Bourns Inc. | 300 mOhm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 1.4 A | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 33 µH | Nonstandard | 1.1 A | Ferrite | Unshielded | |
Bourns Inc. | 8.4 Ohm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 100 mA | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 1 mH | Nonstandard | 50 mA | Ferrite | Unshielded | |
Bourns Inc. | 2.7 Ohm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 400 mA | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 330 µH | Nonstandard | 0.3 A | Ferrite | Unshielded | |
Bourns Inc. | 5.3 Ohm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 200 mA | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 680 µH | Nonstandard | 100 mA | Ferrite | Unshielded | |
Bourns Inc. | 230 mOhm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 1.6 A | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 22 µH | Nonstandard | 1.3 A | Ferrite | Unshielded | |
Bourns Inc. | 1.9 Ohm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 500 mA | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 220 µH | Nonstandard | 400 mA | Ferrite | Unshielded | |
Bourns Inc. | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 2.4 A | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 10 µH | Nonstandard | 2 A | Ferrite | Unshielded | 110 mOhm | |
Bourns Inc. | 800 mOhm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 700 mA | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 100 µH | Nonstandard | 600 mA | Ferrite | Unshielded | |
 Bourns Inc. | 1.9 Ohm | 100 kHz | -55 C | 125 °C | 0.118 " | 3 mm | Surface Mount | 500 mA | 0.512 " | 9.5 mm | 13 mm | 0.374 in | Drum Core Wirewound | 20 % | 220 µH | Nonstandard | 400 mA | Ferrite | Unshielded |
