K31X-A15 Series
Manufacturer: Kycon, Inc.
Beta
⌘K

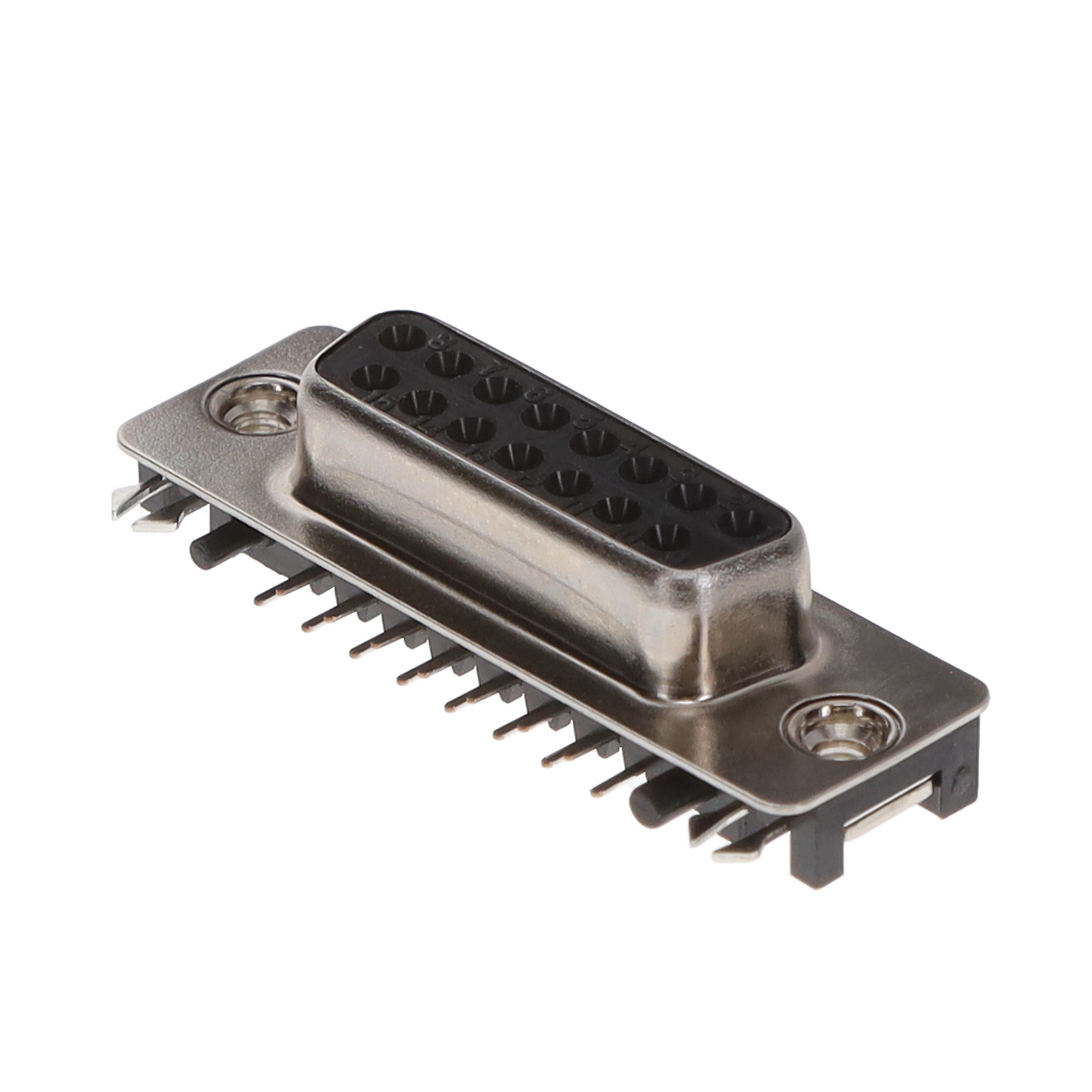

D15 FEMALE ULT COMPACT FP-GR BRA
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Number of Positions | Contact Finish Thickness | Termination | Shell Material, Finish | Connector Style | Shell Size, Connector Layout | Connector Type | Current Rating (Amps) | Number of Rows [custom] | Features | Backset Spacing | Backset Spacing | Contact Finish | Flange Feature | Flange Feature | Contact Type | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | Black | Phosphor Bronze | 15 | Flash | Solder | Nickel Plated Steel | D-Sub | 2 | Receptacle Female Sockets | 2 A | 2 | Board Guide Board Lock | 0.071 in | 1.8 mm | Gold | Housing/Shell | 4-40 | Signal | UL94 V-0 | Right Angle Through Hole |
 Kycon, Inc. | 30 VDC | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | Black | Phosphor Bronze | 15 | Flash | Solder | Nickel Plated Steel | D-Sub | 2 | Receptacle Female Sockets | 2 A | 2 | Board Guide Board Lock | 0.071 in | 1.8 mm | Gold | 4-40 Mating Side Female Screwlock | Signal | UL94 V-0 | Right Angle Through Hole |
