3101-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

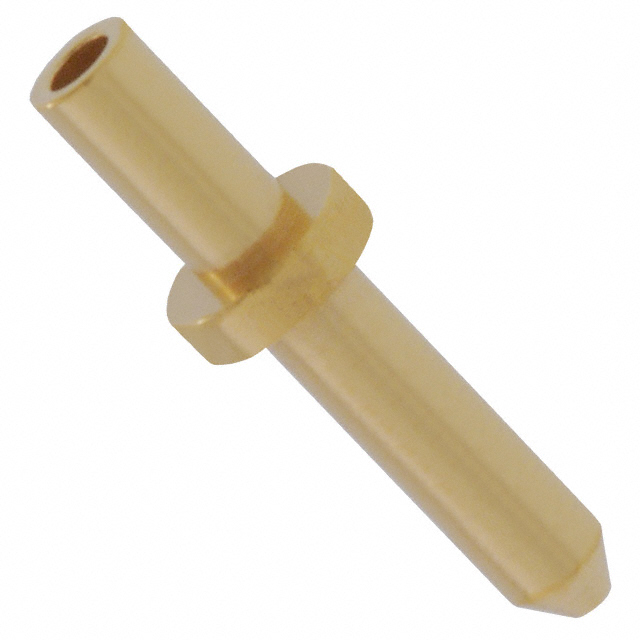

CONN PC PIN CIRC 0.040DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish | Terminal Type | Board Thickness | Board Thickness | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Insulation | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Length - Above Flange | Length - Above Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Gold | PC Pin | 1.57 mm | 0.062 " | Brass Alloy | 20 µin | 0.51 µm | Through Hole | 2.08 mm | 0.082 " | Swage | Non-Insulated | Single End | 0.043 in | 1.09 mm | 6.4 mm | 0.252 in | 3.81 mm | 0.15 in | 1.77 mm | 0.07 in |
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | Gold | PC Pin | 1.57 mm | 0.062 " | Brass Alloy | 50 µin | 1.27 µm | Through Hole | 2.08 mm | 0.082 " | Swage | Non-Insulated | Single End | 0.043 in | 1.09 mm | 6.4 mm | 0.252 in | 3.81 mm | 0.15 in | 1.77 mm | 0.07 in |
