B32778J Series
Manufacturer: EPCOS - TDK Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

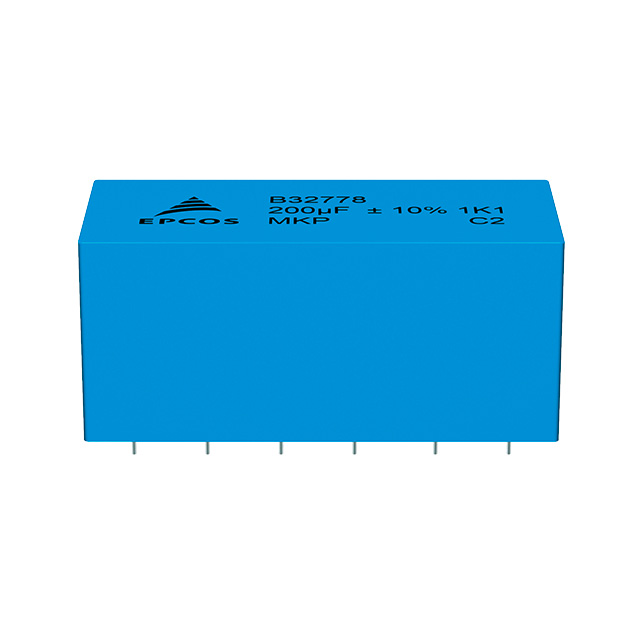

CAP FILM 200UF 10% 1.1KVDC 12DIP
| Part | Dielectric Material | Applications | ESR (Equivalent Series Resistance) | Height - Seated (Max) | Lead Spacing | Voltage Rating - DC | Features | Package / Case | Termination | Tolerance | Size / Dimension Width | Size / Dimension Length | Mounting Type | Capacitance | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EPCOS - TDK Electronics | Metallized Polypropylene (PP) | DC Filtering DC Link | 1.4 mOhm | 2.283 in | 2.067 in | 1.1 kVDC | Long Life | 12-DIP | PC Pins | 10 % | 5.118 in | 2.264 in | Through Hole | 200 µF | -40 °C | 105 °C |
EPCOS - TDK Electronics | Metallized Polypropylene (PP) | DC Filtering DC Link | 1.2 mOhm | 2.283 in | 2.067 in | 800 V | Long Life | 12-DIP | PC Pins | 10 % | 5.118 in | 2.264 in | Through Hole | 270 µF | -40 °C | 105 °C |
EPCOS - TDK Electronics | Metallized Polypropylene (PP) | DC Filtering DC Link | 0.9 mOhm | 2.283 in | 2.067 in | 450 V | Long Life | 12-DIP | PC Pins | 10 % | 5.118 in | 2.264 in | Through Hole | 480 µF | -40 °C | 105 °C |
EPCOS - TDK Electronics | Metallized Polypropylene (PP) | DC Filtering DC Link | 1.7 mOhm | 2.283 in | 2.067 in | 1300 V | Long Life | 12-DIP | PC Pins | 10 % | 5.118 in | 2.264 in | Through Hole | 120 µF | -40 °C | 105 °C |
