ASB02512 Series
Manufacturer: Delta Electronics
Beta
⌘K

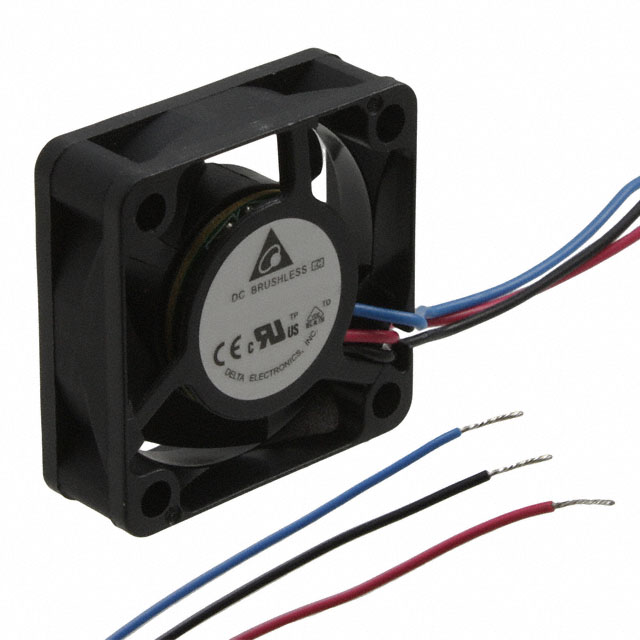

FAN AXIAL 25X10MM 12VDC WIRE
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Noise | Width [y] | Weight | Weight | Approval Agency | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Static Pressure | Static Pressure | RPM | Fan Type | Voltage - Rated | Air Flow | Air Flow | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 50 mA | 30000 Hrs | 4.75 VDC | 13.8 VDC | 27 dB(A) | 10 mm | 6.35 g | 0.014 lb | cURus TUV | Sleeve | 75 ░C | -10 °C | 3 Wire Leads | 25 mm | 25 mm | 600 mW | 0.214 in H2O | 53.3 Pa | 13000 RPM | Tubeaxial | 12 VDC | 3.4 CFM | 0.095 m³/min | Locked Rotor Sensor |
